	Captive Panel Hardware Screws, Retainers, Retainer Washers, Springs Part Numbers: 4001 thru 4486 / 40R01 thru 46R15 RN1 thru RN8 / RS1 thru RS8 SP1 and SP2 / PW431 thru PW435


CAPTIVE HARDWARE		Select From These American Standard Dimensions

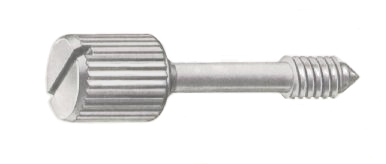

Build Your Part #		4000 Captive Screws *Available in both Hex Head & Round Head Externally Relieved Body FSC-5305-120 (Part Numbers: 4001- 4085)
Material & Shape
Plating & Finishes
Retainer Installation
All Technical Data

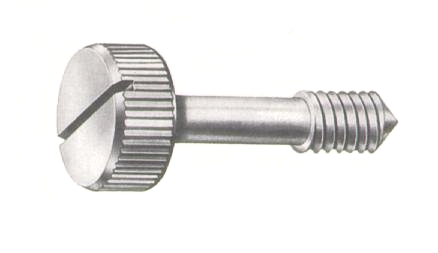

Worksheet Helper		4100 Captive Screws *Available in both Hex Head & Round Head Externally Relieved Body FSC-5305-120 (Part Numbers: 4101- 4195)
Thread Locking Info
Thread Locking Codes
Conversion Chart
Metric Captive

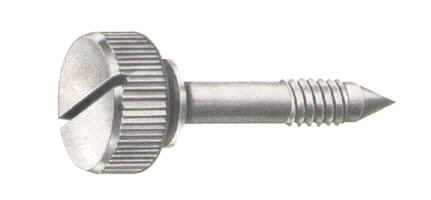

		4200 Captive Screws Externally Relieved Body FSC-5305-120 (Part Numbers: 4201- 4271) *Round Head

		4300 Captive Screws Externally Relieved Body FSC-5305-120 (Part Numbers: 4301- 4366) *Round Head

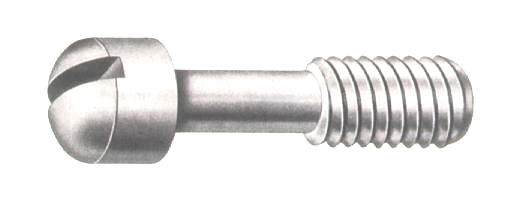

		4400 Captive Screws Externally Relieved Body FSC-5305-120 (Part Numbers: 4401- 4486) *Round Head



		40R Retainer Installation FSC-5304-411 Threaded & Knurled (Part Numbers: 40R01- 40R40)



		41R Retainer Installation FSC-5304-411 Threaded (Part Numbers: 41R01- 41R36)



		42R Retainer Installation FSC-5304-411 Threaded w/ Counter bore (Part Numbers: 42R01- 42R36)



		43R Retainer Installation FSC-5304-411 Unthreaded (Part Numbers: 43R01- 43R36)



		44R Retainer Installation FSC-5304-411 Unthreaded w/ Counter bore (Part Numbers: 44R01- 44R36)



		45R Retainer Installation FSC-5304-411 Threaded (Part Numbers: 45R01- 45R40)



		46R Retainer Installation FSC-5304-411 Threaded (Part Numbers: 46R01- 46R15)



		Retainer Washers RN-NYLON Used with retainer 43R and 44R (Part Numbers: RN1 thru RN8)



		Retainer Washers RS-STAINLESS STEEL Used with retainer 43R and 44R (Part Numbers: RS1 thru RS8)



		Springs SP1 Used with retainers 42R and 44R. Used with screws 4- 40 or 6- 32 threads (Part Numbers: SP1)



		Springs SP2 Used with retainers 42R and 44R. Used with screws 8- 32 or larger threads (Part Numbers: SP2)



		Decorative Panel Washers Threaded Used to prevent damage to the panel being secured (Part Numbers: PW431- PW435)



		DIAMETER: .132 through .750
		SHAPE: Round and Hex. Hex head cannot be knurled. Only 4000 and 4100 series are available in both Hex & Round head.
		KNURL: Straight
		HEAD: Knurled and Slotted
		CONFIGURATION: Round Head Screws: Knurled / Slotted- Knurled / Unslotted. Hex Head Screws: Slotted & Unslotted.
		MATERIAL: Stainless Steel, Carbon Steel, Aluminum, Brass (Also available in Nylon For Retainer Washers Only )
		LENGTH: Wide variety of lengths in 1/16" (.061) up to 2"
		LENGTH (for Retainers): Wide variety of lengths in 1/4" through 5/8"
		RETAINER: Standard and Spring Loaded, .050 through .290 shank length
		FINISH: Available in 24 finishes- See Chart
		THREAD: 2-56 through 5/16-24 / Internal Thread- Class UNC 2B / External Thread- Class UNC 2A / Thread Locking Products available.
		TOLERANCE: See chart on each part number page Diameter: Standard commercial bar stock tolerances.
		UNICORP PRODUCTS USED IN: • Security • Camera Systems • Medical • Telecommunication • Computer • PCB mounting • PC/104 Modules • Circuit Board Assembly • Industrial Equipment • Robotic • Animatronic • Electronic • Military • Government • Aerospace • Airline • Aircraft • Marine • Entertainment • Exhibits • Signs • Food Supply • Vending Machine • Instrumentation • Commercial • Fabrication • Construction • Wire and Cable & Many Other Industries.

		Modified Parts or Engineering Assistance: We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us Captive Panel Screws- Retainers .132 thru .750, 5mm thru 19mm- Lengths: 1/16" thru 2", .5mm thru 51mm- Lengths for retainers: 1/4" thru 5/8", 6.5mm thru 16mm. Unicorp Captive round-hex in stainless steel, carbon steel, aluminum, brass, also nylon for retainers washers only, with knurl- straight, head- knurled and slotted. Stock .132 thru .750, 5mm thru 19mm in lengths of 1/64 of an inch increments to eliminate the need for special orders; different head configurations other than illustrated are also stocked, but not in the depth or quantities as standard items.

		More Information on Thread Locking Products
		ND® Thread Locking Products: Thread locking products can be applied by Unicorp to Male- Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws- this would also apply in some cases to Standoffs which are internally threaded.
