44R Retainer for Captive Screws
FSC- 5304- 411 Retainers listed here
mate with Series 4100 Captive Screws
Back To Captive Screws & Retainers Page

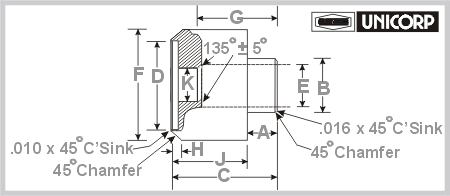

*Slightly Chamfered to Permit Smooth Entry / Fit.
|
|
|
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
Part
Number |
Thread |
Panel
Thickness |
A
±
.005 |
B
+
.000
-
.003 |
C
±
.010 |
D
+
.005
-
.000 |
E
+.002
-
.000 |
F
±
.003 |
G
+.005
-
.010 |
H
±
.005 |
J
±
.005 |
K
+ .004
- .000 |
|
|
44R01 |
4- 40 |
.052- .067 |
.062 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.375 |
.125 |
|
|
44R02 |
4- 40 |
.084- .099 |
.093 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.344 |
.125 |
|
|
44R03 |
4- 40 |
.109- .140 |
.125 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.312 |
.125 |
|
|
44R04 |
6- 32 |
.052- .067 |
.062 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.375 |
.152 |
|
|
44R05 |
6- 32 |
.084- .099 |
.093 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.344 |
.152 |
|
|
|
|
44R06 |
6- 32 |
.109-.140 |
.125 |
.250 |
.437 |
.192 |
.188 |
.281 |
.312 |
.062 |
.312 |
.152 |
|
|
44R07 |
8- 32 |
.052- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.177 |
|
|
44R08 |
8- 32 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.177 |
|
|
44R09 |
8- 32 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.177 |
|
|
44R10 |
8- 32 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.177 |
|
|
|
|
44R11 |
8- 32 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.177 |
|
|
44R12 |
10- 24 |
.052- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.203 |
|
|
44R13 |
10- 24 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.203 |
|
|
44R14 |
10- 24 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.203 |
|
|
44R15 |
10- 24 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.203 |
|
|
|
|
44R16 |
10- 24 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.203 |
|
|
44R17 |
10- 32 |
.052- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.203 |
|
|
44R18 |
10- 32 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.203 |
|
|
44R19 |
10- 32 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.203 |
|
|
44R20 |
10- 32 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.203 |
|
Part
Number |
Thread |
Panel
Thickness |
A
±
.005 |
B
+
.000
-
.003 |
C
±
.010 |
D
+
.005
-
.000 |
E
+.002
-
.000 |
F
±
.003 |
G
+.005
-
.010 |
H
±
.005 |
J
±
.005 |
K
+ .004
- .000 |
|
|
44R21 |
10- 32 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.203 |
|
|
44R22 |
12- 24 |
.052- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.228 |
|
|
44R23 |
12- 24 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.228 |
|
|
44R24 |
12- 24 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.228 |
|
|
44R25 |
12- 24 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.228 |
|
|
|
|
44R26 |
12- 24 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.228 |
|
|
44R27 |
1/4- 20 |
.062- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.257 |
|
|
44R28 |
1/4- 20 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.257 |
|
|
44R29 |
1/4- 20 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.257 |
|
|
44R30 |
1/4- 20 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.257 |
|
|
|
|
44R31 |
1/4- 20 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.257 |
|
|
44R32 |
1/4- 28 |
.062- .067 |
.062 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.563 |
.257 |
|
|
44R33 |
1/4- 28 |
.084- .099 |
.093 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.532 |
.257 |
|
|
44R34 |
1/4- 28 |
.109- .140 |
.125 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.500 |
.257 |
|
|
44R35 |
1/4- 28 |
.171- .203 |
.187 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.438 |
.257 |
|
|
44R36 |
1/4- 28 |
.234- .265 |
.250 |
.433 |
.625 |
.312 |
.375 |
.531 |
.469 |
.093 |
.375 |
.257 |
|
 |
|
