5/32" Male-Female Standoffs

Back To Male-Female Standoffs Page

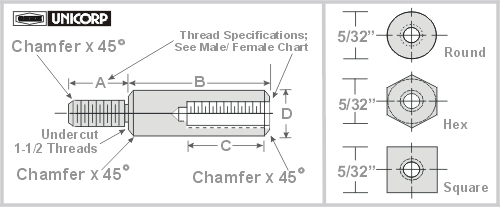

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

CHOOSE and write down your PART NUMBER
then Go to      Skip Step 1
Part
Number
B
Length
D
Diameter
Part
Number
B
Length
D
Diameter
Part
Number
B
Length
D
Diameter
1201 .125 .156 1216 .593 .156 1231 1.062 .156
1202 .156 .156 1217 .625 .156 1232 1.093 .156
1203 .187 .156 1218 .656 .156 1233 1.125 .156
1204 .218 .156 1219 .687 .156 1234 1.156 .156
1205 .250 .156 1220 .718 .156 1235 1.187 .156
1206 .281 .156 1221 .750 .156 1236 1.218 .156
1207 .312 .156 1222 .781 .156 1237 1.250 .156
1208 .343 .156 1223 .812 .156 1238 1.281 .156
1209 .375 .156 1224 .843 .156 1239 1.312 .156
1210 .406 .156 1225 .875 .156 1240 1.343 .156
1211 .437 .156 1226 .906 .156 1241 1.375 .156
1212 .469 .156 1227 .937 .156 1242 1.406 .156
1213 .500 .156 1228 .969 .156 1243 1.437 .156
1214 .531 .156 1229 1.000 .156 1244 1.469 .156
1215 .562 .156 1230 1.031 .156 1245 1.500 .156
TOLERANCES:
B-  Length up to  4"  ±  .005
4" to  6"  ±  .008
Over  6"  ±  .010
C-  Length will be adjusted where B dimensions
will not permit full thread depth
Diameter: Standard commercial
bar stock tolerances.
*No undercut Nylon & Delrin®
