1/4" Swage Standoffs (Threaded)

Back To Swage Standoffs Page

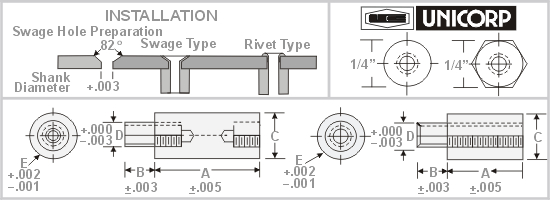

*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Depth of Thread
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  Metric Swages
  American Standard Swages
1/4" - Major Diameter x .139 Shank x 4- 40 Thread
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS240 .125 * .250 .139 .116 4- 40 SS255 .687 * .250 .139 .116 4- 40
SS241 .156 * .250 .139 .116 4- 40 SS256 .750 * .250 .139 .116 4- 40
SS242 .187 * .250 .139 .116 4- 40 SS257 .812 * .250 .139 .116 4- 40
SS243 .218 * .250 .139 .116 4- 40 SS258 .875 * .250 .139 .116 4- 40
SS244 .250 * .250 .139 .116 4- 40 SS259 .937 * .250 .139 .116 4- 40
SS245 .281 * .250 .139 .116 4- 40 SS260 1.000 * .250 .139 .116 4- 40
SS246 .312 * .250 .139 .116 4- 40 SS261 1.125 * .250 .139 .116 4- 40
SS247 .343 * .250 .139 .116 4- 40 SS262 1.250 * .250 .139 .116 4- 40
SS248 .375 * .250 .139 .116 4- 40 SS263 1.375 * .250 .139 .116 4- 40
SS249 .406 * .250 .139 .116 4- 40 SS264 1.500 * .250 .139 .116 4- 40
SS250 .437 * .250 .139 .116 4- 40 SS265 1.625 * .250 .139 .116 4- 40
SS251 .469 * .250 .139 .116 4- 40 SS266 1.750 * .250 .139 .116 4- 40
SS252 .500 * .250 .139 .116 4- 40 SS267 1.875 * .250 .139 .116 4- 40
SS253 .562 * .250 .139 .116 4- 40 SS268 2.000 * .250 .139 .116 4- 40
SS254 .625 * .250 .139 .116 4- 40
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" -.218"

SS240 - SS243
UP4 AN230 AN530 .250" -.469"

SS244 - SS251
UP4 AN240 AN540 .500" -.687"

SS252 - SS255
UP4 AN250 AN550 .750" -2"

SS256 - SS268
1/4" - Major Diameter  x .139 Shank  x  2- 56 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS270 .125 * .250 .139 .109 2- 56 SS285 .687 * .250 .139 .109 2- 56
SS271 .156 * .250 .139 .109 2- 56 SS286 .750 * .250 .139 .109 2- 56
SS272 .187 * .250 .139 .109 2- 56 SS287 .812 * .250 .139 .109 2- 56
SS273 .218 * .250 .139 .109 2- 56 SS288 .875 * .250 .139 .109 2- 56
SS274 .250 * .250 .139 .109 2- 56 SS289 .937 * .250 .139 .109 2- 56
SS275 .281 * .250 .139 .109 2- 56 SS290 1.000 * .250 .139 .109 2- 56
SS276 .312 * .250 .139 .109 2- 56 SS291 1.125 * .250 .139 .109 2- 56
SS277 .343 * .250 .139 .109 2- 56 SS292 1.250 * .250 .139 .109 2- 56
SS278 .375 * .250 .139 .109 2- 56 SS293 1.375 * .250 .139 .109 2- 56
SS279 .406 * .250 .139 .109 2- 56 SS294 1.500 * .250 .139 .109 2- 56
SS280 .437 * .250 .139 .109 2- 56 SS295 1.625 * .250 .139 .109 2- 56
SS281 .469 * .250 .139 .109 2- 56 SS296 1.750 * .250 .139 .109 2- 56
SS282 .500 * .250 .139 .109 2- 56 SS297 1.875 * .250 .139 .109 2- 56
SS283 .562 * .250 .139 .109 2- 56 SS298 2.000 * .250 .139 .109 2- 56
SS284 .625 * .250 .139 .109 2- 56
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" - .218"

SS270 - SS273
UP4 AN230 AN530 .250" - .469"

SS274 - SS281
UP4 AN240 AN540 .500" - .687"

SS282 - SS285
UP4 AN250 AN550 .750" - 2"

SS286 - SS298
1/4" - Major Diameter  x .187 Shank  x  4- 40 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS300 .125 * .250 .187 .150 4- 40 SS315 .687 * .250 .187 .150 4- 40
SS301 .156 * .250 .187 .150 4- 40 SS316 .750 * .250 .187 .150 4- 40
SS302 .187 * .250 .187 .150 4- 40 SS317 .812 * .250 .187 .150 4- 40
SS303 .218 * .250 .187 .150 4- 40 SS318 .875 * .250 .187 .150 4- 40
SS304 .250 * .250 .187 .150 4- 40 SS319 .937 * .250 .187 .150 4- 40
SS305 .281 * .250 .187 .150 4- 40 SS320 1.000 * .250 .187 .150 4- 40
SS306 .312 * .250 .187 .150 4- 40 SS321 1.125 * .250 .187 .150 4- 40
SS307 .343 * .250 .187 .150 4- 40 SS322 1.250 * .250 .187 .150 4- 40
SS308 .375 * .250 .187 .150 4- 40 SS323 1.375 * .250 .187 .150 4- 40
SS309 .406 * .250 .187 .150 4- 40 SS324 1.500 * .250 .187 .150 4- 40
SS310 .437 * .250 .187 .150 4- 40 SS325 1.625 * .250 .187 .150 4- 40
SS311 .469 * .250 .187 .150 4- 40 SS326 1.750 * .250 .187 .150 4- 40
SS312 .500 * .250 .187 .150 4- 40 SS327 1.875 * .250 .187 .150 4- 40
SS313 .562 * .250 .187 .150 4- 40 SS328 2.000 * .250 .187 .150 4- 40
SS314 .625 * .250 .187 .150 4- 40
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" - .218"

SS300 - SS303
UP4 AN230 AN530 .250" - .469"

SS304 - SS311
UP4 AN240 AN540 .500" - .687"

SS312 - SS315
UP4 AN250 AN550 .750" - 2"

SS316 - SS328
1/4" - Major Diameter  x .187 Shank  x  6- 32 Thread
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Thread Part
Number		 A B C D E Thread
SS350 .125 * .250 .187 .150 6- 32 SS365 .687 * .250 .187 .150 6- 32
SS351 .156 * .250 .187 .150 6- 32 SS366 .750 * .250 .187 .150 6- 32
SS352 .187 * .250 .187 .150 6- 32 SS367 .812 * .250 .187 .150 6- 32
SS353 .218 * .250 .187 .150 6- 32 SS368 .875 * .250 .187 .150 6- 32
SS354 .250 * .250 .187 .150 6- 32 SS369 .937 * .250 .187 .150 6- 32
SS355 .281 * .250 .187 .150 6- 32 SS370 1.000 * .250 .187 .150 6- 32
SS356 .312 * .250 .187 .150 6- 32 SS371 1.125 * .250 .187 .150 6- 32
SS357 .343 * .250 .187 .150 6- 32 SS372 1.250 * .250 .187 .150 6- 32
SS358 .375 * .250 .187 .150 6- 32 SS373 1.375 * .250 .187 .150 6- 32
SS359 .406 * .250 .187 .150 6- 32 SS374 1.500 * .250 .187 .150 6- 32
SS360 .437 * .250 .187 .150 6- 32 SS375 1.625 * .250 .187 .150 6- 32
SS361 .469 * .250 .187 .150 6- 32 SS376 1.750 * .250 .187 .150 6- 32
SS362 .500 * .250 .187 .150 6- 32 SS377 1.875 * .250 .187 .150 6- 32
SS363 .562 * .250 .187 .150 6- 32 SS378 2.000 * .250 .187 .150 6- 32
SS364 .625 * .250 .187 .150 6- 32
Swage
Tooling For:		 Punch Round Anvil Hex Anvil Length

Unicorp Part Number
1/4"
Diameter		 UP4 AN220 AN520 .125" - .218"

SS350 - SS353
UP4 AN230 AN530 .250" - .469"

SS354 - SS361
UP4 AN240 AN540 .500" - .687"

SS362 - SS365
UP4 AN250 AN550 .750" - 2"

SS366 - SS378
