Thumb Screws Shoulder Type - 2000 Series

Back To Thumb Screws Page
* External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.



 Build Part Number
Material & Shape
Plating & Finish		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes		 Conversion Chart
Metric Thumb Screws
Am. Standard Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

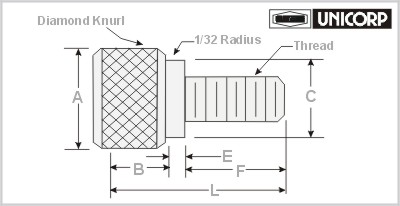

Part Number A  ±  .010 B  ±  .005 C  ±  .005 E  ±  .005 F  ±  .005 L  ±  .005 Thread
THS2001 .156 .156 .125 .031 .187 .343 2- 56
THS2002 .156 .156 .125 .031 .250 .406 2- 56
THS2003 .156 .156 .125 .031 .312 .468 2- 56
THS2006 .187 .156 .156 .031 .187 .343 3- 48
THS2007 .187 .156 .156 .031 .250 .406 3- 48
THS2008 .187 .156 .156 .031 .312 .468 3- 48
THS2009 .187 .156 .156 .031 .375 .531 3- 48
THS2012 .187 .156 .156 .031 .187 .343 4- 40
THS2013 .187 .156 .156 .031 .250 .406 4- 40
THS2014 .187 .156 .156 .031 .312 .468 4- 40
THS2015 .187 .156 .156 .031 .375 .531 4- 40
THS2020 .250 .250 .203 .050 .187 .437 4- 40
THS2021 .250 .250 .203 .050 .250 .500 4- 40
THS2022 .250 .250 .203 .050 .312 .562 4- 40
THS2023 .250 .250 .203 .050 .375 .625 4- 40
THS2024 .250 .250 .203 .050 .437 .687 4- 40
THS2028 250 .250 .203 .050 .187 .437 6- 32
THS2029 .250 .250 .203 050 .250 .500 6- 32
THS2030 .250 .250 .203 .050 .312 .562 6- 32
THS2031 .250 .250 .203 .050 .375 .625 6- 32
Part Number A  ±  .010 B  ±  .005 C  ±  .005 E  ±  .005 F  ±  .005 L  ±  .005 Thread
THS2032 .250 .250 .203 .050 .437 .687 6- 32
THS2037 .375 .250 .343 .050 .187 .437 4- 40
THS2038 .375 .250 .343 .050 .250 .500 4- 40
THS2039 .375 .250 .343 .050 .312 .562 4- 40
THS2040 .375 .250 .343 .050 .375 .625 4- 40
THS2041 .375 .250 .343 .050 .437 .687 4- 40
THS2045 .375 .250 .343 .050 .187 .437 6- 32
THS2046 .375 .250 .343 .050 .250 .500 6- 32
THS2047 .375 .250 .343 .050 .312 .562 6- 32
THS2048 .375 .250 .343 .050 .375 .625 6- 32
THS2049 .375 .250 .343 .050 .437 .687 6- 32
THS2054 .437 .375 .406 .062 .250 .625 6- 32
THS2055 .437 .375 .406 .062 .312 .687 6- 32
THS2056 .437 .375 .406 .062 .375 .750 6- 32
THS2057 .437 .375 .406 .062 .437 .812 6- 32
THS2058 .437 .375 .406 .062 .500 .875 6- 32
THS2062 .437 .375 .406 .062 .250 .625 8- 32
THS2063 .437 .375 .406 .062 .312 .687 8- 32
THS2064 .437 .375 .406 .062 .375 .750 8- 32
THS2065 .437 .375 .406 .062 .437 .812 8- 32
Part Number A  ±  .010 B  ±  .005 C  ±  .005 E  ±  .005 F  ±  .005 L  ±  .005 Thread
THS2066 .437 .375 .406 .062 .500 .875 8- 32
THS2070 .500 .375 .468 .062 .250 .625 8- 32
THS2071 .500 .375 .468 .062 .312 .687 8- 32
THS2072 .500 .375 .468 .062 .375 .750 8- 32
THS2073 .500 .375 .468 .062 .437 .812 8- 32
THS2074 .500 .375 .468 .062 .500 .875 8- 32
THS2080 .500 .375 .468 .062 .250 .625 10- 32
THS2081 .500 .375 .468 .062 .312 .687 10- 32
THS2082 .500 .375 .468 .062 .375 .750 10- 32
THS2083 .500 .375 .468 .062 .437 .812 10- 32
THS2084 .500 .375 .468 .062 .500 .875 10- 32
