Thumb Screws
Knurl (Washer - Faced), Shoulder, Plain, Push
Part Numbers: (THS1001 thru THS4072)










Select From These American Standard Dimensions (inches)
       Build Your Part #


       Material & Shape      Select Size

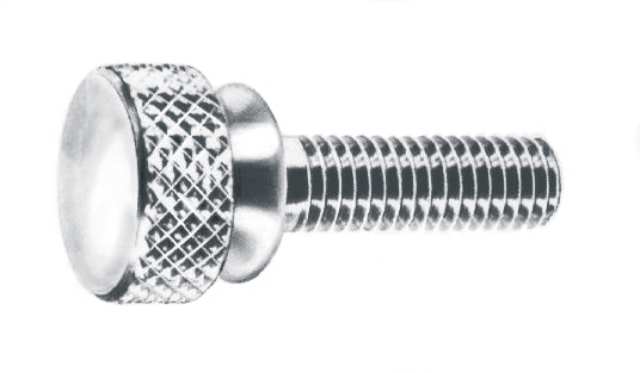

       Plating & Finishes    Thumb Screws /   Knurl Type - 1000 Series
       All Technical Data
       Worksheet Helper  Part Numbers: THS1001- THS1141
       Thread Locking Info

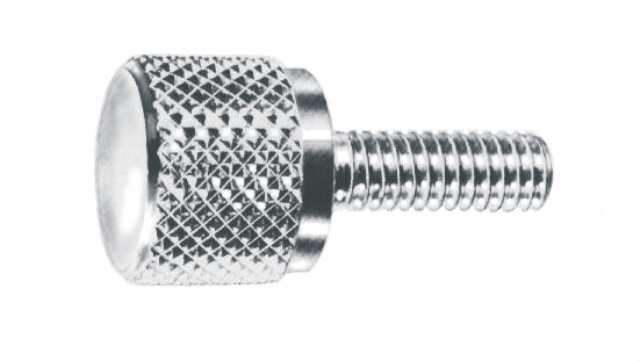

       Thread Locking Codes    Thumb Screws /   Shoulder Type - 2000 Series
       Conversion Chart
       Thumb Nuts  Part Numbers: THS2001-THS2084



Thumb Screws

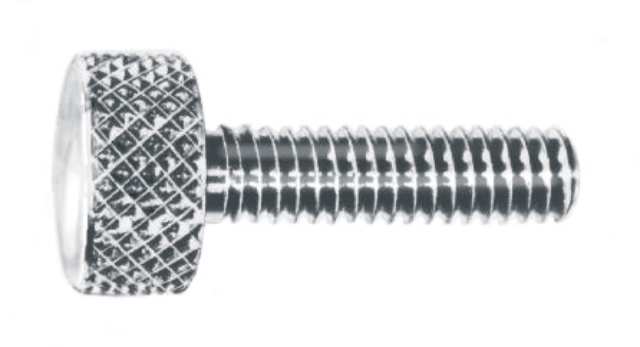

        Thumb Screws /   Plain Type - 3000 Series

  Part Numbers: THS3001- THS3071

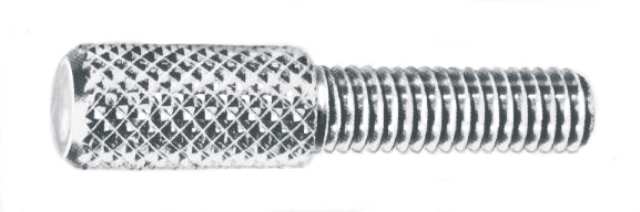

          Thumb Screws /   Push Type - 4000 Series

  Part Numbers: THS4001- THS4072





DIAMETER:  5/32" / 3/16" / 1/4" / 3/8" / 7/16" / 1/2"
SHAPE:  Round
KNURL:  Diamond (for easy grip)
MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel
LENGTH:  Wide variety of lengths in 3/16" up to 2.500"
FINISH:  Available in 20 finishes - See Chart
THREAD:  2 -56 through 1/4-28 / External Thread- Class UNC 2A / Thread Locking Products available
Available with slotted heads upon request
TOLERANCE:  See chart on each part number page
Diameter: Standard commercial bar stock tolerances






  MODIFIED PARTS- ENGINEERING ASSISTANCE:

We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us
      Thumb Screws 5/32" thru 1/2", 4mm thru 13mm- Lengths: 3/16" thru 2.500", 8mm thru 58mm. Unicorp Thumbscrews- round, knurl / diamond, brass, aluminum, stainless steel, carbon steel in 20 finishes. Stock 5/32" thru 1/2", 4mm thru 13mm in lengths of 1/64 of an inch increments to eliminate the need for special orders.





More Information on Thread Locking Products



  ND® THREAD LOCKING PRODUCTS:

Thread locking products can be applied by Unicorp to Male-Female Standoffs, Jack Screws, Male-Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws- this would also apply in some cases to Standoffs which are internally threaded.
