Thumb Screws Knurl Type (Washer-Faced)
1000 Series

Back To Thumb Screws Page

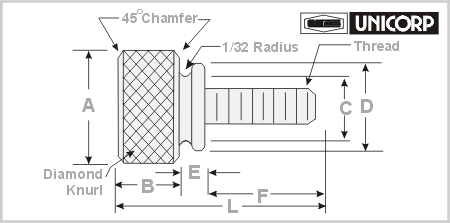

* External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

   Build Part Number
   Material & Shape
   Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		 Conversion Chart
Metric Thumb Screws
Am. Standard Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number A ± .010 B ± .005 C  ± .005 D ± .005 E ± .005 F ± .005 L ± .005 Thread
THS1001 .375 .187 .250 .312 .125 .250 .562 4- 40
THS1002 .375 .187 .250 .312 .125 .312 .625 4- 40
THS1003 .375 .187 .250 .312 .125 .375 .687 4- 40
THS1004 .375 .187 .250 .312 .125 .437 .750 4- 40
THS1005 .375 .187 .250 .312 .125 .500 .812 4- 40
THS1010 .375 .187 .250 .312 .125 .312 .625 6- 32
THS1011 .375 .187 .250 .312 .125 .375 .687 6- 32
THS1012 .375 .187 .250 .312 .125 .437 .750 6- 32
THS1013 .375 .187 .250 .312 .125 .500 .812 6- 32
THS1014 .375 .187 .250 .312 .125 .562 .875 6- 32
THS1015 .375 .250 .250 .312 .125 .312 .687 6- 32
THS1016 .375 .250 .250 .312 .125 .375 .750 6- 32
THS1017 .375 .250 .250 .312 .125 .437 .812 6- 32
THS1018 .375 .250 .250 .312 .125 .500 .875 6- 32
THS1019 .375 .250 .250 .312 .125 .562 .937 6- 32
THS1023 .437 .187 .250 .375 .125 .375 .687 6- 32
THS1024 .437 .187 .250 .375 .125 .437 .750 6- 32
THS1025 .437 .187 .250 .375 .125 .500 .812 6- 32
THS1026 .437 .187 .250 .375 .125 .562 .875 6- 32
THS1030 .437 .250 .250 .375 .125 .375 .750 6- 32
Part Number A ± .010 B ± .005 C  ± .005 D ± .005 E ± .005 F ± .005 L ± .005 Thread
THS1031 .437 .250 .250 .375 .125 .437 .812 6- 32
THS1032 .437 .250 .250 .375 .125 .500 .875 6- 32
THS1033 .437 .250 .250 .375 .125 .562 .937 6- 32
THS1035 .500 .187 .312 .437 .125 .375 .687 6- 32
THS1036 .500 .187 .312 .437 .125 .437 .750 6- 32
THS1037 .500 .187 .312 .437 .125 .500 .812 6- 32
THS1038 .500 .187 .312 .437 .125 .562 .875 6- 32
THS1040 .500 .250 .312 .437 .125 .375 .750 6- 32
THS1041 .500 .250 .312 .437 .125 .437 .812 6- 32
THS1042 .500 .250 .312 .437 .125 .500 .875 6- 32
THS1043 .500 .250 .312 .437 .125 .562 .937 6- 32
THS1046 .375 .187 .250 .312 .125 .312 .625 8- 32
THS1047 .375 .187 .250 .312 .125 .375 .687 8- 32
THS1048 .375 .187 250 .312 .125 .437 .750 8- 32
THS1049 .375 .187 .250 .312 .125 .500 .812 8- 32
THS1050 .375 .187 .250 .312 .125 .562 .875 8- 32
THS1053 .437 .187 .250 .375 .125 .312 .625 8- 32
THS1054 .437 .187 .250 .375 .125 .375 .687 8- 32
THS1055 .437 .187 .250 .375 .125 .437 .750 8- 32
THS1056 .437 .187 .250 .375 .125 .500 .812 8- 32
Part Number A ± .010 B ± .005 C  ± .005 D ± .005 E ± .005 F ± .005 L ± .005 Thread
THS1057 .437 .187 .250 .375 .125 .562 .875 8- 32
THS1060 .437 .250 .250 .375 .125 .312 .687 8- 32
THS1061 .437 .250 .250 .375 .125 .375 .750 8- 32
THS1062 .437 .250 .250 .375 .125 .437 .812 8- 32
THS1063 .437 .250 .250 .375 125 .500 .875 8- 32
THS1064 .437 .250 .250 .375 .125 .562 .937 8- 32
THS1070 .500 .187 .312 .437 .125 .312 .625 8- 32
THS1071 .500 .187 .312 .437 .125 .375 .687 8- 32
THS1072 .500 .187 .312 .437 .125 .437 .750 8- 32
THS1073 .500 .187 .312 .437 .125 .500 .812 8- 32
THS1074 .500 .187 .312 .437 .125 .562 .875 8- 32
THS1075 .500 .187 .312 .437 .125 .625 .937 8- 32
THS1079 .500 .250 .312 .437 .125 .312 .687 8- 32
THS1080 .500 .250 .312 .437 .125 .375 .750 8- 32
THS1081 .500 .250 .312 .437 .125 .437 .812 8- 32
THS1082 .500 .250 .312 .437 .125 .500 .875 8- 32
THS1083 .500 .250 .312 .437 .125 .562 .937 8- 32
THS1084 .500 .250 .312 .437 .125 .625 1.000 8- 32
THS1087 .375 .187 .250 .312 .125 .312 .625 10- 32
THS1088 .375 .187 .250 .312 .125 .375 .687 10- 32
Part Number A ± .010 B ± .005 C  ± .005 D ± .005 E ± .005 F ± .005 L ± .005 Thread
THS1089 .375 .187 .250 .312 .125 .437 .750 10- 32
THS1090 .375 .187 .250 .312 .125 .500 .812 10- 32
THS1091 .375 .187 250 .312 .125 .562 .875 10- 32
THS1094 .437 .187 .250 .375 .125 .312 .625 10- 32
THS1095 .437 .187 250 .375 .125 .375 .687 10- 32
THS1096 .437 .187 .250 .375 .125 .437 .750 10- 32
THS1097 .437 .187 .250 .375 .125 .500 .812 10- 32
THS1098 .437 .187 .250 .375 .125 .562 .875 10- 32
THS1099 .437 .187 .250 .375 .125 .625 .937 10- 32
THS1103 .437 .250 .250 .375 .125 .312 .687 10- 32
THS1104 .437 .250 .250 .375 .125 .375 .750 10- 32
THS1105 .437 .250 .250 .375 .125 .437 .812 10- 32
THS1106 .437 .250 .250 .375 .125 .500 .875 10- 32
THS1107 .437 .250 .250 .375 .125 .562 .937 10- 32
THS1108 .437 .250 .250 .375 .125 .625 1.000 10- 32
THS1110 .500 .187 .312 .437 .125 .312 .625 10- 32
THS1111 .500 .187 .312 .437 .125 .375 .687 10- 32
THS1112 .500 .187 .312 .437 .125 .437 .750 10- 32
THS1113 .500 .187 .312 .437 .125 .500 .812 10- 32
THS1114 .500 .187 .312 .437 .125 .562 .875 10- 32
Part Number A ± .010 B ± .005 C  ± .005 D ± .005 E ± .005 F ± .005 L ± .005 Thread
THS1115 .500 .187 .312 .437 .125 .625 .937 10- 32
THS1118 .500 .250 .312 .437 .125 .312 .687 10- 32
THS1119 .500 .250 .312 .437 .125 .375 .750 10- 32
THS1120 .500 .250 .312 .437 .125 .437 .812 10- 32
THS1121 .500 .250 .312 .437 .125 .500 .875 10- 32
THS1122 .500 .250 .312 .437 .125 .562 .937 10- 32
THS1123 .500 .250 .312 .437 .125 .625 1.000 10- 32
THS1126 .500 .187 .312 .437 .125 .375 .687 1/4- 20
THS1127 .500 .187 .312 .437 .125 .437 .750 1/4- 20
THS1128 .500 .187 .312 .437 .125 .500 .812 1/4- 20
THS1129 .500 .187 .312 .437 .125 .562 .875 1/4- 20
THS1130 .500 .187 .312 .437 .125 .625 .937 1/4- 20
THS1131 .500 .187 .312 .437 .125 .687 1.000 1/4- 20
THS1132 .500 .187 .312 .437 .125 .750 1.062 1/4- 20
THS1135 .500 .250 .312 .437 .125 .375 .750 1/4- 20
THS1136 .500 .250 .312 .437 .125 .437 .812 1/4- 20
THS1137 .500 .250 .312 .437 .125 .500 .875 1/4- 20
THS1138 .500 .250 .312 .437 .125 .562 .937 1/4- 20
THS1139 .500 .250 .312 .437 125 .625 1.000 1/4- 20
THS1140 .500 .250 .312 .437 .125 .687 1.062 1/4- 20
THS1141 .500 .250 .312 .437 .125 .750 1.125 1/4- 20
