Metric Thumb Screws Shoulder Type
M2000 Series
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
   Build Part Number
   Material & Shape
   Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Standard Thumb Screws
 Metric Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

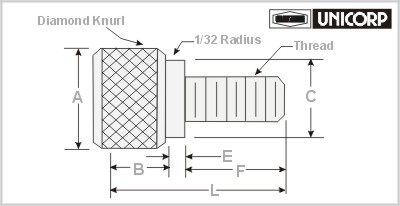

Part Number A ±  0.28 B ±  0.15 C ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS2001 4 4 3 0.8 5 9 M2 x 0.4
MTHS2002 4 4 3 0.8 7 11 M2 x 0.4
MTHS2003 4 4 3 0.8 9 13 M2 x 0.4
MTHS2004 5 4 3 0.8 5 9 M2.5 x 0.45
MTHS2005 5 4 3 0.8 7 11 M2.5 x 0.45
MTHS2006 5 4 3 0.8 9 13 M2.5 x 0.45
MTHS2007 5 4 4 0.8 5 9 M3 x 0.5
MTHS2008 5 4 4 0.8 7 11 M3 x 0.5
MTHS2009 5 4 4 0.8 9 13 M3 x 0.5
MTHS2010 5 4 4 0.8 10 14 M3 x 0.5
MTHS2011 6 6 5 1.2 3 9 M3 x 0.5
MTHS2012 6 6 5 1.2 5 11 M3 x 0.5
MTHS2013 6 6 5 1.2 7 13 M3 x 0.5
MTHS2014 6 6 5 1.2 8 14 M3 x 0.5
MTHS2015 6 6 5 1.2 5 11 M3.5 x 0.6
MTHS2016 6 6 5 1.2 7 13 M3.5 x 0.6
MTHS2017 6 6 5 1.2 8 14 M3.5 x 0.6
MTHS2018 6 6 5 1.2 10 16 M3.5 x 0.6
MTHS2019 6 6 5 1.2 12 18 M3.5 x 0.6
MTHS2020 10 6 9 1.2 5 11 M3 x 0.5
Part Number A ±  0.28 B ±  0.15 C ±  0.15 E ±  0.15 F ±  0.15 L ±  0.15 Thread
MTHS2021 10 6 9 1.2 7 13 M3 x 0.5
MTHS2022 10 6 9 1.2 8 14 M3 x 0.5
MTHS2023 10 6 9 1.2 10 16 M3 x 0.5
MTHS2024 10 6 9 1.2 12 18 M3 x 0.5
MTHS2025 10 6 9 1.2 5 11 M3.5 x 0.6
MTHS2026 10 6 9 1.2 7 13 M3.5 x 0.6
MTHS2027 10 6 9 1.2 8 14 M3.5 x 0.6
MTHS2028 10 6 9 1.2 10 16 M3.5 x 0.6
MTHS2029 10 6 9 1.2 12 18 M3.5 x 0.6
MTHS2030 11 10 10 1.6 6 16 M3.5 x 0.6
MTHS2031 11 10 10 1.6 8 18 M3.5 x 0.6
MTHS2032 11 10 10 1.6 9 19 M3.5 x 0.6
MTHS2033 11 10 10 1.6 11 21 M3.5 x 0.6
MTHS2034 11 10 10 1.6 13 23
