Metric Thumb Screws Plain Type
M3000 Series

Back To Thumbscrews Page

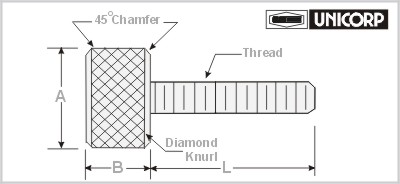

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
   Build Part Number
   Material & Shape
   Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Thumb Screws
 Metric Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number A  ±  0.28 B  ±  0.15 L  ±  0.15 Thread
MTHS3001 8 5 8 M3 x 0.5
MTHS3002 8 5 10 M3 x 0.5
MTHS3003 8 5 11 M3 x 0.5
MTHS3004 8 5 13 M3 x 0.5
MTHS3005 8 5 15 M3 x 0.5
MTHS3006 8 5 8 M3.5 x 0.6
MTHS3007 8 5 10 M3.5 x 0.6
MTHS3008 8 5 11 M3.5 x 0.6
MTHS3009 8 5 13 M3.5 x 0.6
MTHS3010 8 5 15 M3.5 x 0.6
MTHS3011 8 5 10 M4 x 0.7
MTHS3012 8 5 11 M4 x 0.7
MTHS3013 8 5 13 M4 x 0.7
MTHS3014 8 5 15 M4 x 0.7
MTHS3015 8 5 16 M4 x 0.7
MTHS3016 8 5 17 M4 x 0.7
MTHS3017 8 5 19 M4 x 0.7
MTHS3018 10 5 10 M4 x 0.7
MTHS3019 10 5 11 M4 x 0.7
MTHS3020 10 5 13 M4 x 0.7
Part Number A ±  0.28 B ±  0.15 L ±  0.15 Thread
MTHS3021 10 5 15 M4 x 0.7
MTHS3022 10 5 16 M4 x 0.7
MTHS3023 10 5 17 M4 x 0.7
MTHS3024 10 5 19 M4 x 0.7
MTHS3025 10 5 10 M5 x 0.8
MTHS3026 10 5 11 M5 x 0.8
MTHS3027 10 5 13 M5 x 0.8
MTHS3028 10 5 15 M5 x 0.8
MTHS3029 10 5 16 M5 x 0.8
MTHS3030 10 5 17 M5 x 0.8
MTHS3031 10 5 19 M5 x 0.8
MTHS3032 11 5 10 M5 x 0.8
MTHS3033 11 5 11 M5 x 0.8
MTHS3034 11 5 13 M5 x 0.8
MTHS3035 11 5 15 M5 x 0.8
MTHS3036 11 5 16 M5 x 0.8
MTHS3037 11 5 17 M5 x 0.8
MTHS3038 11 5 19 M5 x 0.8
MTHS3039 13 6 13 M6 x 1
MTHS3040 13 6 15 M6 x 1
Part Number A ±  0.28 B ±  0.15 L ±  0.15 Thread
MTHS3041 13 6 16 M6 x 1
MTHS3042 13 6 17 M6 x 1
MTHS3043 13 6 19 M6 x 1
MTHS3044 13 6 20 M6 x 1
MTHS3045 13 6 22 M6 x 1
MTHS3046 13 6 24 M6 x 1
MTHS3047 13 6 25 M6 x 1
MTHS3048 13 6 13 M8 x 1
MTHS3049 13 6 15 M8 x 1
MTHS3050 13 6 16 M8 x 1
MTHS3051 13 6 17 M8 x 1
