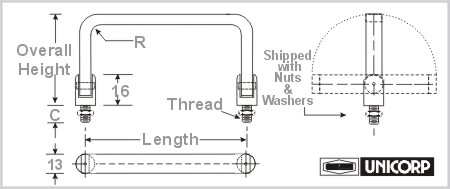

Metric Folding Handle
13mm x 5mm - Rectangular - 180° All Position - External Thread
(MV - Series) (Shipped with Nuts and Washers)

Back To Handles Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
13mm  x  5mm Rectangular
38mm Overall Height
M10 x 1.5 Threads		 46mm Overall Height
M10 x 1.5 Threads
Length Brass Aluminum Length Brass Aluminum
76 MV1012 MV1015 76 MV1492 MV1495
89 MV1022 MV1025 89 MV1502 MV1505
104 MV1032 MV1035 104 MV1512 MV1515
108 MV1042 MV1045 108 MV1522 MV1525
114 MV1052 MV1055 114 MV1532 MV1535
127 MV1062 MV1065 127 MV1542 MV1545
140 MV1072 MV1075 140 MV1552 MV1555
152 MV1082 MV1085 152 MV1562 MV1565
178 MV1092 MV1095 178 MV1572 MV1575
203 MV1102 MV1105 203 MV1582 MV1585
229 MV1112 MV1115 229 MV1592 MV1595
254 MV1122 MV1125 254 MV1602 MV1605
13mm  x  5mm Rectangular
51mm Overall Height
M10 x 1.5 Threads		 63mm Overall Height
M10 x 1.5 Threads
Length Brass Aluminum Length Brass Aluminum
76 MV1972 MV1975 76 MV2442 MV2445
89 MV1982 MV1985 89 MV2452 MV2455
104 MV1992 MV1995 104 MV2462 MV2465
108 MV2002 MV2005 108 MV2472 MV2475
114 MV2012 MV2015 114 MV2482 MV2485
127 MV2022 MV2025 127 MV2492 MV2495
140 MV2032 MV2035 140 MV2502 MV2505
152 MV2042 MV2045 152 MV2512 MV2515
178 MV2052 MV2055 178 MV2522 MV2525
203 MV2062 MV2065 203 MV2532 MV2535
229 MV2072 MV2075 229 MV2542 MV2545
254 MV2082 MV2085 254 MV2552 MV2555
LENGTH OF THREAD
Panel Thickness C Code
1.6
2.4
3.2 - 4.7
6.3		 7.1
8
11
13		 A
B
C
D
To order the correct length of thread to match your panel, use the letter designating
thread length after the part number. Example: MV1105-B
