Metric Extruded Handle - Bar Handle
8mm x 13mm - 3 Legs - Aluminum Insert
(MET - Series) Black Anodized Aluminum Insert

Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
Black Vinyl insert is standard.
Other color or wood grain vinyl available upon special order.
Legs:
This style handle may be ordered with either 8mm or 10mm diameter legs.
To order  8mm diameter legs: Add "A" to Part Number.
To order 10mm diameter legs: Add "B" to Part Number.
Example:  MET141A  /  MET141B
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

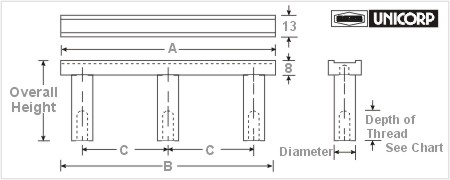

8mm  x 13mm Aluminum Extrusion
27mm Overall Height 30mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C
MET101 MET111 162 140 70 MET121 MET131 162 140 70
MET102 MET112 171 152 76 MET122 MET132 171 152 76
MET103 MET113 200 178 89 MET123 MET133 200 178 89
MET104 MET114 219 197 98 MET124 MET134 219 197 98
MET105 MET115 225 203 102 MET125 MET135 225 203 102
MET106 MET116 250 229 114 MET126 MET136 250 229 114
MET107 MET117 263 241 120 MET127 MET137 263 241 120
MET108 MET118 276 254 127 MET128 MET138 276 254 127
MET109 MET119 302 280 140 MET129 MET139 302 280 140
MET110 MET120 308 285 143 MET130 MET140 308 285 143
8mm  x 13mm Aluminum Extrusion
33mm Overall Height 36mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C
MET141 MET151 162 140 70 MET161 MET171 162 140 70
MET142 MET152 171 152 76 MET162 MET172 171 152 76
MET143 MET153 200 178 89 MET163 MET173 200 178 89
MET144 MET154 219 197 98 MET164 MET174 219 197 98
MET145 MET155 225 203 102 MET165 MET175 225 203 102
MET146 MET156 250 229 114 MET166 MET176 250 229 114
MET147 MET157 263 241 120 MET167 MET177 263 241 120
MET148 MET158 276 254 127 MET168 MET178 276 254 127
MET149 MET159 302 280 140 MET169 MET179 302 280 140
MET150 MET160 308 285 143 MET170 MET180 308 285 143
8mm  x 13mm Aluminum Extrusion
38mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C

MET181 MET191 162 140 70
MET182 MET192 171 152 76
MET183 MET193 200 178 89
MET184 MET194 219 197 98
MET185 MET195 225 203 102
MET186 MET196 250 229 114
MET187 MET197 263 241 120
MET188 MET198 276 254 127
MET189 MET199 302 280 140
MET190 MET200 308 285 143
