Metric 4mm Male-Male Standoffs
Back To Male-Male Standoffs Page

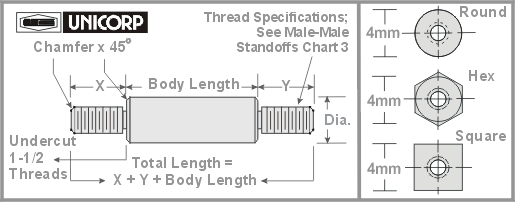

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Am. Standard Male-Male
 Metric Male-Male
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1201 3 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1234 19.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1202 3.5 4 MMX1235 20 4
MMX1203 4 4 MMX1236 20.5 4
MMX1204 4.5 4 MMX1237 21 4
MMX1205 5 4 MMX1238 21.5 4
MMX1206 5.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1239 22 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1207 6 4 MMX1240 22.5 4
MMX1208 6.5 4 MMX1241 23 4
MMX1209 7 4 MMX1242 23.5 4
MMX1210 7.5 4 MMX1243 24 4
MMX1211 8 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1244 24.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1212 8.5 4 MMX1245 25 4
MMX1213 9 4 MMX1246 25.5 4
MMX1214 9.5 4 MMX1247 26 4
MMX1215 10 4 MMX1248 26.5 4
MMX1216 10.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1249 27 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1217 11 4 MMX1250 27.5 4
MMX1218 11.5 4 MMX1251 28 4
MMX1219 12 4 MMX1252 28.5 4
MMX1220 12.5 4 MMX1253 29 4
MMX1221 13 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1254 29.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1222 13.5 4 MMX1255 30 4
MMX1223 14 4 MMX1256 30.5 4
MMX1224 14.5 4 MMX1257 31 4
MMX1225 15 4 MMX1258 31.5 4
MMX1226 15.5 4 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1259 32 4 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1227 16 4 MMX1260 32.5 4
MMX1228 16.5 4 MMX1261 33 4
MMX1229 17 4 MMX1262 33.5 4
MMX1230 17.5 4 MMX1263 34 4
MMX1231 18 4 MMX1264 34.5 4
MMX1232 18.5 4 MMX1265 35 4
MMX1233 19 4
Thread Chart for Metric Male-Male Standoffs Part Number


Thread Size

Thread Code  &  Thread Length
M2 x 0.4  M2 - 1 3
M2 x 0.4  M2 - 2 4
M2.5 x 0.45  M2.5 - 1 3
M2.5 x 0.45  M2.5 -2 4
M3 x 0.5  M3 - 1 5
M3 x 0.5  M3 - 2 6
*Mix and Match Different Threads and Lengths For Each Part.
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
