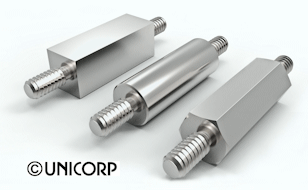

Male-Male Standoffs
Externally Threaded
Part Numbers: MM1101 thru MM2026





  Select From These American Standard Dimensions


Select Size

Part Numbers



   MALE- MALE

  1/8" Male-Male

MM1101- MM1158


   Build Your Part #   5/32" Male-Male

MM1201- MM1258


   Material & Shape   3/16" Male-Male MM1301- MM1374
   Plating & Finishes   1/4" Male-Male

MM1401- MM1506


   Thread Specs   5/16" Male-Male MM1510- MM1599
   Non-Metallic Properties

 Mix & Match Different Threads

  3/8" Male-Male MM1701- MM1826
   All Technical Data

 & Lengths For Each Part.

  1/2" Male-Male MM1901- MM2026
   Worksheet Helper
   Thread Locking Info  DIAMETER:  1/8" / 5/32" / 3/16" / 1/4" / 5/16" / 3/8" / 1/2"
   Thread Locking Codes  SHAPE:  Round, Square and Hex
   Conversion Chart  MATERIAL:  Brass, Aluminum, Stainless Steel, Carbon Steel, Nylon & Delrin®.
   Metric Male-Male
  BODY LENGTH:  Wide variety of lengths- 1/64" (.015) increments- up to 6"
     EXTERNAL THREAD LENGTH:  Ranging from .125 through .625 depending on the thread size. Thread Locking Products available.
  FINISH:  Available in 26 finishes- See Chart
  THREAD:  0-80 through 1/2- 20 /  External- Class UNC 2A /  Thread Locking Products available.  Mix and Match Different Threads and Lengths For Each Part.
   TOLERANCE (for Brass, Aluminum, Stainless Steel and Carbon Steel): Body Length: Up to 6" ±  .005 / Over 6" ±  .010 / Thread Length Tolerance is  ±  .005. External Thread Length Tolerance is ±  .005
TOLERANCE (for Nylon and Delrin®):  Body Length: For all lengths the Tolerance is  ±  .010 /  External Thread Length Tolerance is  ±  .010
Diameter: Standard commercial bar stock tolerances.
No Undercut on Nylon or Delrin®

   UNICORP PRODUCTS USED IN:  • Security  • Camera Systems •  Medical •  Telecommunication •  Computer •  PCB mounting •  PC/104 Modules •  Circuit Board Assembly •  Industrial Equipment •  Robotic •  Animatronic •  Electronic
•  Military •  Government •  Aerospace •  Airline •  Aircraft •  Marine •  Entertainment •  Exhibits •  Signs •  Food Supply •  Vending Machine •  Instrumentation •  Commercial •  Fabrication •  Construction •  Wire and Cable & Many Other Industries.








Modified Parts or Engineering Assistance:
       We offer your firm engineering and design services for customized or modified parts, at no additional charge- please contact our Engineering Department. Contact Us
       Male- Male Standoffs 1/8" thru 1/2", 3mm thru 13mm- Lengths: 1/64" thru 6", .5mm thru 100mm.
Unicorp Male/Male round-square-hex, 26 finishes, available in brass, aluminum, stainless steel, carbon steel, nylon, Delrin. Stock 1/8" thru 1/2", 3mm thru 13mm in lengths of 1/64 of an inch increments to eliminate the need for special orders.





 More Information on Thread Locking Products




ND® Thread Locking Products:
        Thread locking products can be applied by Unicorp to Male-Female Standoffs, Jack Screws, Male- Male Standoffs, Captive Panel Screws, Thumb Screws and Shoulder Screws- this would also apply in some cases to Standoffs which are internally threaded.
