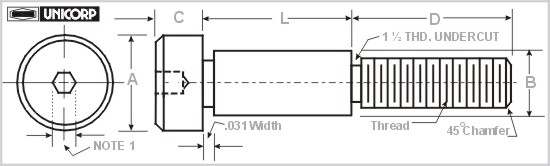

Hex Socket Head (Broached)
Shoulder Screws
9/16" Diameter
*External Thread has a 45°
Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit. |
|
|
CHOOSE and write down your PART NUMBER
then Go to
Skip Step 1 |
|
Part Number |
A |
B |
C |
D |
L |
Thread |
|
|
SCB962- 1A |
9/16 |
.375 |
1/4 |
1/2 |
.250 |
5/16- 18 |
|
|
SCB962- 1 |
9/16 |
.375 |
1/4 |
1/2 |
.313 |
5/16- 18 |
|
|
SCB962- 2 |
9/16 |
.375 |
1/4 |
1/2 |
.375 |
5/16- 18 |
|
|
SCB962- 2A |
9/16 |
.375 |
1/4 |
1/2 |
.437 |
5/16- 18 |
|
|
SCB962- 3 |
9/16 |
.375 |
1/4 |
1/2 |
.500 |
5/16- 18 |
|
|
SCB962- 3A |
9/16 |
.375 |
1/4 |
1/2 |
.562 |
5/16- 18 |
|
|
SCB962- 4 |
9/16 |
.375 |
1/4 |
1/2 |
.625 |
5/16- 18 |
|
|
SCB962- 4A |
9/16 |
.375 |
1/4 |
1/2 |
.687 |
5/16- 18 |
|
|
SCB962- 5 |
9/16 |
.375 |
1/4 |
1/2 |
.750 |
5/16- 18 |
|
|
SCB962- 5A |
9/16 |
.375 |
1/4 |
1/2 |
.875 |
5/16- 18 |
|
|
SCB962- 6 |
9/16 |
.375 |
1/4 |
1/2 |
1.000 |
5/16- 18 |
|
|
SCB962- 6A |
9/16 |
.375 |
1/4 |
1/2 |
1.125 |
5/16- 18 |
|
|
SCB962- 7 |
9/16 |
.375 |
1/4 |
1/2 |
1.250 |
5/16- 18 |
|
|
SCB962- 7A |
9/16 |
.375 |
1/4 |
1/2 |
1.375 |
5/16- 18 |
|
|
SCB962-8 |
9/16 |
.375 |
1/4 |
1/2 |
1.500 |
5/16- 18 |
|
|
Applicable Tolerances |
|
B |
C |
L |
|
+.000
/
- .001 |
±
.005 |
±
.005 |
|
Applicable Specifications |
|
Stainless
Steel |
Passivate |
Threads |
|
QQ- S- 763, Class 303, Cond. A. (Non- Magnetic) |
Per
Mil-F-14072-A (EL) E 300
|
Class 2A per handbook
H.28, Part 1 |
|
Hex Socket Head (Broach) Information |
|
Thread |
Hex Socket Head (Broach) |
|
|
4 - 40 |
5/64 |
Across the Flats |
|
6 - 32 |
3/32 |
Across the Flats |
|
8 - 32 |
3/32 |
Across the Flats |
|
10 - 24 |
3/32 |
Across the Flats |
|
10 - 32 |
3/32 |
Across the Flats |
|
1/4 - 20 |
5/32 |
Across the Flats |
|
5/16 - 18 |
3/16 |
Across the Flats |
|
3/8 - 16 |
1/4 |
Across the Flats |
|
Standard in Type 303 Stainless Steel. Other materials available on special order. |
 |
|
