Metric Hex Socket Head (Broached) Shoulder Screws
 6mm Diameter

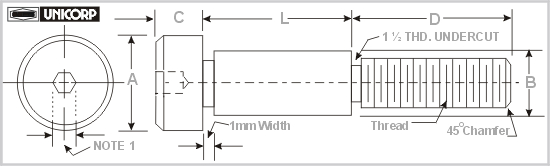

 *External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Applicable Tolerances
  Socket Head / Threads		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Standard Shoulder Screws
 Metric Shoulder Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part No. A B C D L Thread
MSCB236-1 6 3 3 4 3 M3 x 0.5
MSCB236-2 6 3 3 4 4 M3 x 0.5
MSCB236-3 6 3 3 4 5 M3 x 0.5
MSCB236-4 6 3 3 4 6 M3 x 0.5
MSCB236-5 6 3 3 4 7 M3 x 0.5
MSCB236-6 6 3 3 4 8 M3 x 0.5
MSCB236-7 6 3 3 4 9 M3 x 0.5
MSCB236-8 6 3 3 4 10 M3 x 0.5
MSCB236-9 6 3 3 4 11 M3 x 0.5
MSCB236-10 6 3 3 4 12 M3 x 0.5
MSCB236-11 6 3 3 4 13 M3 x 0.5
Applicable Tolerances
B C L
+.000  / - .026   ± .015       ± .015
Applicable Specifications
Stainless Steel Passivate Threads
QQ- S- 763, Class 303, Cond. A. (Non- Magnetic) Per Mil-F-14072-A
(EL) E 300 		Class 6G per handbook
H.28, Part 1
Hex Socket Head (Broach) Information
Thread Hex Socket Head (Broach)
M3 x 0.5 2 Across the Flats
M3.5 x 0.6 2 Across the Flats
M4 x 0.7 3 Across the Flats
M5 x 0.8 3 Across the Flats
M6 x 1 4 Across the Flats
M8 x 1 5 Across the Flats
Standard in Type 303 Stainless Steel. Other materials available on special order.
