46R Retainer
for Captive Screws
FSC- 5304- 411 Retainers listed here
mate with Series 4300 Captive Screws
Back To Captive Screws & Retainers Page

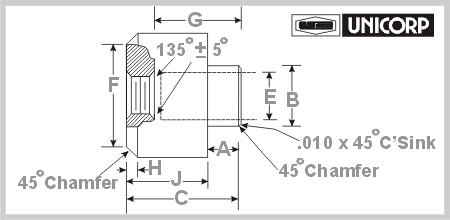

*Slightly Chamfered to Permit Smooth Entry / Fit.
|
|
|
CHOOSE and write down your PART NUMBER
then Go to
 Skip Step 1 |
Part
Number |
Thread |
Panel
Thickness |
A
±
.005 |
B
+
.000
-
.003 |
C
±
.010 |
E
+
.006
-
.000 |
F
±
.003 |
G
+
.005
- .010 |
H
REF |
J
±
.005 |
|
|
46R01 |
6- 32 |
.109- .140 |
.165 |
.406 |
.477 |
.344 |
.562 |
.290 |
.026 |
.312 |
|
|
46R02 |
6- 32 |
.171- .203 |
.230 |
.406 |
.542 |
.344 |
.562 |
.355 |
.026 |
.312 |
|
|
46R03 |
6- 32 |
.234- .265 |
.290 |
.406 |
.602 |
.344 |
.562 |
.415 |
.026 |
.312 |
|
|
46R04 |
8- 32 |
.109- .140 |
.165 |
.406 |
.477 |
.344 |
.562 |
.290 |
.026 |
.312 |
|
|
46R05 |
8- 32 |
.171- .203 |
.230 |
.406 |
.542 |
.344 |
.562 |
.355 |
.026 |
.312 |
|
|
|
|
46R06 |
8- 32 |
.234- .265 |
.290 |
.406 |
.602 |
.344 |
.562 |
.415 |
.026 |
.312 |
|
|
46R07 |
10- 32 |
.109- .140 |
.165 |
.406 |
.477 |
.344 |
.562 |
.290 |
.032 |
.312 |
|
|
46R08 |
10- 32 |
.171- .203 |
.230 |
.406 |
.542 |
.344 |
.562 |
.355 |
.032 |
.312 |
|
|
46R09 |
10- 32 |
.234- .265 |
.290 |
.406 |
.602 |
.344 |
.562 |
.415 |
.032 |
.312 |
|
|
46R10 |
12- 24 |
.109- .140 |
.165 |
.406 |
.477 |
.344 |
.562 |
.290 |
.032 |
.312 |
|
|
|
|
46R11 |
12- 24 |
.171- .203 |
.230 |
.406 |
.542 |
.344 |
.562 |
.355 |
.032 |
.312 |
|
|
46R12 |
12- 24 |
.234- .265 |
.290 |
.406 |
.602 |
.344 |
.562 |
.415 |
.032 |
.312 |
|
|
46R13 |
1/4- 20 |
.109- .140 |
.165 |
.406 |
.477 |
.344 |
.562 |
.290 |
.032 |
.312 |
|
|
46R14 |
1/4- 20 |
.171- .203 |
.230 |
.406 |
.542 |
.344 |
.562 |
.355 |
.032 |
.312 |
|
|
46R15 |
1/4- 20 |
.234- .265 |
.290 |
.406 |
.602 |
.344 |
.562 |
.415 |
.032 |
.312 |
|
 |
|
