4400 Captive Panel Screws

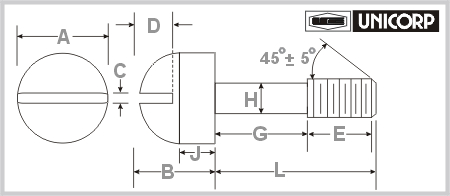

Externally Relieved Body  FSC-5305-120

Back To Captive Screws & Retainers Page
*External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   All Technical Data
  Worksheet Helper
  ND Thread Lock Info
  ND Thread Codes		 Conversion Chart
Metric Captive Screws
Am. Standard Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 A
±
  .008		 B
±
  .008		 C
±
  .004		 D
±
  .006		 E
REF		 G
±
  .010		 H
±
  .005		 L
REF		 J
REF		 Thread
4401 .132 .074 .027 .031 .125 .095 .061 .250 .058 2- 56
4402 .132 .074 .027 .031 .125 .158 .061 .313 .058 2- 56
4403 .132 .074 .027 .031 .125 .220 .061 .375 .058 2- 56
4404 .132 .074 .027 .031 .125 .282 .061 .437 .058 2- 56
4405 .132 .074 .027 .031 .125 .345 .061 .500 .058 2- 56
4406 .132 .074 .027 .031 .125 .407 .061 .562 .058 2- 56
4407 .132 .074 .027 .031 .125 .470 .061 .625 .058 2- 56
4408 .153 .085 .031 .036 .125 .095 .070 .250 .066 3-48
4409 .153 .085 .031 .036 .125 .158 .070 .313 .066 3-48
4410 .153 .085 .031 .036 .125 .220 .070 .375 .066 3-48
4411 .153 .085 .031 .036 .125 .282 .070 .437 .066 3-48
4412 .153 .085 .031 .036 .125 .345 .070 .500 .066 3-48
4413 .153 .085 .031 .036 .125 .407 .070 .562 .066 3-48
4414 .153 .085 .031 .036 .125 .470 .070 .625 .066 3-48
4415 .174 .096 .035 .041 .156 .063 .078 .250 .074 4- 40
Part
Number		 A
±
  .008		 B
±
  .008		 C
±
  .004		 D
±
  .006		 E
REF		 G
±
  .010		 H
±
  .005		 L
REF		 J
REF		 Thread
4416 .174 .096 .035 .041 .156 .125 .078 .313 .074 4- 40
4417 .174 .096 .035 .041 .156 .188 .078 .375 .074 4- 40
4418 .174 .096 .035 .041 .156 .250 .078 .437 .074 4- 40
4419 .174 .096 .035 .041 .156 .313 .078 .500 .074 4- 40
4420 .174 .096 .035 .041 .156 .375 .078 .562 .074 4- 40
4421 .174 .096 .035 .041 .156 .438 .078 .625 .074 4- 40
4422 .174 .096 .035 .041 .156 .063 .078 .250 .074 4-48
4423 .174 .096 .035 .041 .156 .125 .078 .313 .074 4-48
4424 .174 .096 .035 .041 .156 .188 .078 .375 .074 4-48
4425 .174 .096 .035 .041 .156 .250 .078 .437 .074 4-48
4426 .174 .096 .035 .041 .156 .313 .078 .500 .074 4-48
4427 .174 .096 .035 .041 .156 .375 .078 .562 .074 4-48
4428 .174 .096 .035 .041 .156 .438 .078 .625 .074 4-48
4429 .216 .119 .043 .051 .187 .158 .095 .375 .090 6- 32
4430 .216 .119 .043 .051 .187 .220 .095 .437 .090 6- 32
Part
Number		 A
±
  .008		 B
±
  .008		 C
±
  .004		 D
±
  .006		 E
REF		 G
±
  .010		 H
±
  .005		 L
REF		 J
REF		 Thread
4431 .216 .119 .043 .051 .187 .283 .095 .500 .090 6- 32
4432 .216 .119 .043 .051 .187 .345 .095 .562 .090 6- 32
4433 .216 .119 .043 .051 .187 .408 .095 .625 .090 6- 32
4434 .216 .119 .043 .051 .187 .470 .095 .687 .090 6- 32
4435 .216 .119 .043 .051 .187 .533 .095 .750 .090 6- 32
4436 .216 .119 .043 .051 .187 .595 .095 .812 .090 6- 32
4437 .216 .119 .043 .051 .187 .658 .095 .875 .090 6- 32
4438 .216 .119 .043 .051 .187 .720 .095 .937 .090 6- 32
4439 .216 .119 .043 .051 .187 .783 .095 1.000 .090 6- 32
4440 .216 .119 .043 .051 .187 .908 .095 1.125 .090 6- 32
4441 .216 .119 .043 .051 .187 1.033 .095 1.250 .090 6- 32
4443 .216 .119 .043 .051 .187 .158 .095 .375 .090 6-40
4444 .216 .119 .043 .051 .187 .220 .095 .437 .090 6-40
4445 .216 .119 .043 .051 .187 .283 .095 .500 .090 6-40
4446 .216 .119 .043 .051 .187 .345 .095 .562 .090 6-40
4447 .216 .119 .043 .051 .187 .408 .095 .625 .090 6-40
4448 .216 .119 .043 .051 .187 .470 .095 .687 .090 6-40
4449 .216 .119 .043 .051 .187 .533 .095 .750 .090 6-40
4450 .216 .119 .043 .051 .187 .595 .095 .812 .090 6-40
Part
Number		 A
±
  .008		 B
±
  .008		 C
±
  .004		 D
±
  .006		 E
REF		 G
±
  .010		 H
±
  .005		 L
REF		 J
REF		 Thread
4451 .216 .119 .043 .051 .187 .658 .095 .875 .090 6-40
4452 .216 .119 .043 .051 .187 .720 .095 .937 .090 6-40
4453 .216 .119 .043 .051 .187 .783 .095 1.000 .090 6-40
4454 .216 .119 .043 .051 .187 .908 .095 1.125 .090 6-40
4455 .216 .119 .043 .051 .187 1.033 .095 1.250 .090 6-40
4456 .258 .141 .050 .060 .187 .158 .120 .375 .108 8- 32
4457 .258 .141 .050 .060 .187 .220 .120 .437 .108 8- 32
4458 .258 .141 .050 .060 .187 .283 .120 .500 .108 8- 32
4459 .258 .141 .050 .060 .187 .345 .120 .562 .108 8- 32
4460 .258 .141 .050 .060 .187 .408 .120 .625 .108 8- 32
4461 .258 .141 .050 .060 .187 .470 .120 .687 .108 8- 32
4462 .258 .141 .050 .060 .187 .533 .120 .750 .108 8- 32
4463 .258 .141 .050 .060 .187 .595 .120 .812 .108 8- 32
4464 .258 .141 .050 .060 .187 .658 .120 .875 .108 8- 32
4465 .258 .141 .050 .060 .187 .720 .120 .937 .108 8- 32
Part
Number		 A
±
  .008		 B
±
  .008		 C
±
  .004		 D
±
  .006		 E
REF		 G
±
  .010		 H
±
  .005		 L
REF		 J
REF		 Thread
4466 .258 .141 .050 .060 .187 .783 .120 1.000 .108 8- 32
4467 .258 .141 .050 .060 .187 .908 .120 1.125 .108 8- 32
4468 .258 .141 .050 .060 .187 1.033 .120 1.250 .108 8- 32
4469 .300 .162 .054 .070 .250 .345 .130 .625 .122 10- 24
4470 .300 .162 .054 .070 .250 .405 .130 .687 .122 10- 24
4471 .300 .162 .054 .070 .250 .470 .130 .750 .122 10- 24
4472 .300 .162 .054 .070 .250 .532 .130 .812 .122 10- 24
4473 .300 .162 .054 .070 .250 .594 .130 .875 .122 10- 24
4474 .300 .162 .054 .070 .250 .657 .130 .937 .122 10- 24
4475 .300 .162 .054 .070 .250 .720 .130 1.000 .122 10- 24
4476 .300 .162 .054 .070 .250 .845 .130 1.125 .122 10- 24
4477 .300 .162 .054 .070 .250 .970 .130 1.250 .122 10- 24
4478 .300 .162 .054 .070 .250 .345 .130 .625 .122 10- 32
4479 .300 .162 .054 .070 .250 .405 .130 .687 .122 10- 32
4480 .300 .162 .054 .070 .250 .470 .130 .750 .122 10- 32
4481 .300 .162 .054 .070 .250 .532 .130 .812 .122 10- 32
4482 .300 .162 .054 .070 .250 .594 .130 .875 .122 10- 32
4483 .300 .162 .054 .070 .250 .657 .130 .937 .122 10- 32
4484 .300 .162 .054 .070 .250 .720 .130 1.000 .122 10- 32
4485 .300 .162 .054 .070 .250 .845 .130 1.125 .122 10- 32
4486 .300 .162 .054 .070 .250 .970 .130 1.250 .122 10- 32
