4300 Captive Panel Screws
Externally Relieved Body  FSC-5305-120

Back To Captive Screws & Retainers Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   All Technical Data
  Worksheet Helper
  ND Thread Lock Info
  ND Thread Codes		   Conversion Chart
  Metric Captive Screws
  Am. Standard Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

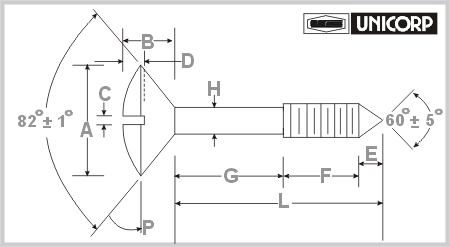

Part
Number		 A
±
.005		 B
±
 .010		 C
±
.004		 D
 ±
 .005		 E
REF		 F
±
1/64		 G
±
 .010		 H
±
 .005		 L
REF		 P
±
 .010		 Thread

4301

 .210 .094  .036 .054 .096 .187 .111 .078 .394 .077 4 - 40

4302

 .210 .094  .036 .054 .096 .187 .173 .078 .456 .077 4 - 40

4303

 .210 .094  .036 .054 .096 .187 .236 .078 .519 .077 4 - 40

4304

 .210 .094  .036 .054 .096 .187 .298 .078 .581 .077 4 - 40

4305

 .210 .094  .036 .054 .096 .187 .361 .078 .644 .077 4 - 40

4306

 .210 .094  .036 .054 .096 .187 .423 .078 .706 .077 4 - 40

4307

 .210 .094  .036 .054 .096 .187 .486 .078 .769 .077 4 - 40

4308

 .210 .094  .036 .054 .096 .187 .548 .078 .831 .077 4 - 40

4309

 .210 .094  .036 .054 .096 .187 .611 .078 .894 .077 4 - 40

4310

 .210 .094  .036 .054 .096 .187 .673 .078 .956 .077 4 - 40

4311

 .210 .094  .036 .054 .096 .187 .717 .078 1.000 .077 4 - 40

4311A

 .210 .094  .036 .054 .096 .187 .779 .078 1.062 .077 4 - 40

4311B

 .210 .094  .036 .054 .096 .187 .842 .078 1.125 .077 4 - 40

4311C

 .210 .094  .036 .054 .096 .187 .904 .078 1.187 .077 4 - 40

4311D

 .210 .094  .036 .054 .096 .187 .967 .078 1.250 .077 4 - 40

4311E

 .210 .094  .036 .054 .096 .187 1.030 .078 1.313 .077 4 - 40

4311F

 .210 .094  .036 .054 .096 .187 1.092 .078 1.375 .077 4 - 40

4311G

 .210 .094  .036 .054 .096 .187 1.217 .078 1.500 .077 4 - 40

4312

 .261 .117  .044 .067 .121 .250 .157 .095 .528 .093 6 - 32

4313

 .261 .117  .044 .067 .121 .250 .219 .095 .590 .093 6 - 32

4314

 .261 .117  .044 .067 .121 .250 .282 .095 .653 .093 6 - 32

4315

 .261 .117  .044 .067 .121 .250 .344 .095 .715 .093 6 - 32
Part
Number		 A
±
.005		 B
±
 .010		 C
±
.004		 D
 ±
 .005		 E
REF		 F
±
1/64		 G
±
 .010		 H
±
 .005		 L
REF		 P
±
 .010		 Thread

4316

 .261 .117  .044 .067 .121 .250 .407 .095 .778 .093 6 - 32

4317

 .261 .117  .044 .067 .121 .250 .469 .095 .840 .093 6 - 32

4318

 .261 .117  .044 .067 .121 .250 .532 .095 .903 .093 6 - 32

4319

 .261 .117  .044 .067 .121 .250 .594 .095 .965 .093 6 - 32

4320

 .261 .117  .044 .067 .121 .250 .656 .095 1.027 .093 6 - 32

4321

 .261 .117  .044 .067 .121 .250 .718 .095 1.089 .093 6 - 32

4322

 .261 .117  .044 .067 .121 .250 .780 .095 1.151 .093 6 - 32

4323

 .261 .117  .044 .067 .121 .250 .843 .095 1.214 .093 6 - 32

4324

 .261 .117  .044 .067 .121 .250 .879 .095 1.250 .093 6 - 32

4324A

 .261 .117  .044 .067 .121 .250 .942 .095 1.313 .093 6 - 32

4324B

 .261 .117  .044 .067 .121 .250 1.004 .095 1.375 .093 6 - 32

4324C

 .261 .117  .044 .067 .121 .250 1.125 .095 1.500 .093 6 - 32

4325

 .315 .135  .050 .080 .142 .250 .140 .120 .532 .110 8 - 32

4326

 .315 .135  .050 .080 .142 .250 .202 .120 .594 .110 8 - 32

4327

 .315 .135  .050 .080 .142 .250 .265 .120 .657 .110 8 - 32

4328

 .315 .135  .050 .080 .142 .250 .327 .120 .719 .110 8 - 32

4329

 .315 .135  .050 .080 .142 .250 .390 .120 .782 .110 8 - 32

4330

 .315 .135  .050 .080 .142 .250 .452 .120 .844 .110 8 - 32
Part
Number		 A
±
.005		 B
±
 .010		 C
±
.004		 D
 ±
 .005		 E
REF		 F
±
1/64		 G
±
 .010		 H
±
 .005		 L
REF		 P
±
 .010		 Thread

4331

 .315 .135  .050 .080 .142 .250 .515 .120 .907 .110 8 - 32

4332

 .315 .135  .050 .080 .142 .250 .577 .120 .969 .110 8 - 32

4333

 .315 .135  .050 .080 .142 .250 .640 .120 1.032 .110 8 - 32

4334

 .315 .135  .050 .080 .142 .250 .702 .120 1.094 .110 8 - 32

4335

 .315 .135  .050 .080 .142 .250 .764 .120 1.156 .110 8 - 32

4336

 .315 .135  .050 .080 .142 .250 .826 .120 1.218 .110 8 - 32

4337

 .315 .135  .050 .080 .142 .250 .889 .120 1.281 .110 8 - 32

4338

 .315 .135  .050 .080 .142 .250 .953 .120 1.345 .110 8 - 32

4338A

 .315 .135  .050 .080 .142 .250 .983 .120 1.375 .110 8 - 32

4338B

 .315 .135  .050 .080 .142 .250 1.108 .120 1.500 .110 8 - 32

4339

 .370 .160 .055 .103 .164 .250 .250 .130 .664 .126 10 - 24

4340

 .370 .160 .055 .103 .164 .250 .312 .130 .726 .126 10 - 24

4341

 .370 .160 .055 .103 .164 .250 .375 .130 .789 .126 10 - 24

4342

 .370 .160 .055 .103 .164 .250 .437 .130 .851 .126 10 - 24

4343

 .370 .160 .055 .103 .164 .250 .500 .130 .914 .126 10 - 24

4344

 .370 .160 .055 .103 .164 .250 .562 .130 .976 .126 10 - 24

4345

 .370 .160 .055 .103 .164 .250 .625 .130 1.039 .126 10 - 24
Part
Number		 A
±
.005		 B
±
 .010		 C
±
.004		 D
 ±
 .005		 E
REF		 F
±
1/64		 G
±
 .010		 H
±
 .005		 L
REF		 P
±
 .010		 Thread

4346

 .370 .160 .055 .103 .164 .250 .687 .130 1.101 .126 10 - 24

4347

 .370 .160 .055 .103 .164 .250 .750 .130 1.164 .126 10 - 24

4348

 .370 .160 .055 .103 .164 .250 .812 .130 1.226 .126 10 - 24

4349

 .370 .160 .055 .103 .164 .250 .875 .130 1.289 .126 10 - 24

4350

 .370 .160 .055 .103 .164 .250 .937 .130 1.351 .126 10 - 24

4351

 .370 .160 .055 .103 .164 .250 1.000 .130 1.414 .126 10 - 24

4352

 .370 .160 .055 .103 .164 .250 1.125 .130 1.539 .126 10 - 24

4353

 .370 .160 .055 .103 .164 .250 .250 .130 .664 .126 10 - 32

4354

 .370 .160 .055 .103 .164 .250 .312 .130 .726 .126 10 - 32

4355

 .370 .160 .055 .103 .164 .250 .375 .130 .789 .126 10 - 32

4356

 .370 .160 .055 .103 .164 .250 .437 .130 .851 .126 10 - 32

4357

 .370 .160 .055 .103 .164 .250 .500 .130 .914 .126 10 - 32

4358

 .370 .160 .055 .103 .164 .250 .562 .130 .976 .126 10 - 32

4359

 .370 .160 .055 .103 .164 .250 .625 .130 1.039 .126 10 - 32

4360

 .370 .160 .055 .103 .164 .250 .687 .130 1.101 .126 10 - 32

4361

 .370 .160 .055 .103 .164 .250 .750 .130 1.164 .126 10 - 32

4362

 .370 .160 .055 .103 .164 .250 .812 .130 1.226 .126 10 - 32

4363

 .370 .160 .055 .103 .164 .250 .875 .130 1.289 .126 10 - 32

4364

 .370 .160 .055 .103 .164 .250 .937 .130 1.351 .126 10 - 32

4365

 .370 .160 .055 .103 .164 .250 1.000 .130 1.414 .126 10 - 32

4366

 .370 .160 .055 .103 .164 .250 1.125 .130 1.539 .126 10 - 32
