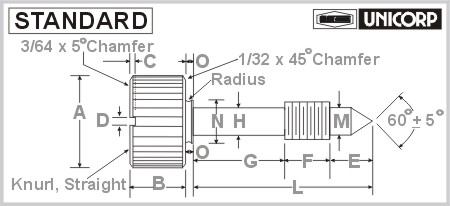

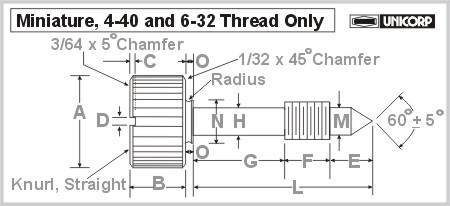

4200 Captive Panel Screws
Externally Relieved Body FSC-5305-120

Back To Captive Screws & Retainers Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes		 Conversion Chart
Metric Captive Screws
 Am. Standard Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
No.		 A
Before
Knurl		 B
±
1/64		 C
±
.005		 D
+.005 -.000		 E
REF		 F
±
.005		 G
±
.010		 H
±
.005		 M
+.000
-.015		 L
REF		 N
±
.010		 O
±
.010		 Pitch Thread

4201

 .313 .125 .083 .047 .125 .187 .188 .078 .078 .500 .206 .062 40 4- 40

4202

 .313 .125 .083 .047 .125 .187 .250 .078 .078 .562 .206 .062 40 4- 40

4203

 .313 .125 .083 .047 .125 .187 .313 .078 .078 .625 .206 .062 40 4- 40

4204

 .313 .125 .083 .047 .125 .187 .375 .078 .078 .687 .206 .062 40 4- 40

4204A

 .313 .125 .083 .047 .125 .187 .438 .078 .078 .750 .206 .062 40 4- 40

4204B

 .313 .125 .083 .047 .125 .187 .500 .078 .078 .812 .206 .062 40 4- 40

4204C

 .313 .125 .083 .047 .125 .187 .562 .078 .078 .875 .206 .062 40 4- 40

4204D

 .313 .125 .083 .047 .125 .187 .625 .078 .078 .937 .206 .062 40 4- 40

4204E

 .313 .125 .083 .047 .125 .187 .687 .078 .078 1.000 .206 .062 40 4- 40

4205A

 .313 .125 .083 .047 .125 .187 .188 .095 .095 .500 .206 .062 40 6- 32

4205

 .313 .125 .083 .047 .125 .187 .250 .095 .095 .562 .206 .062 40 6- 32

4206

 .313 .125 .083 .047 .125 .187 .313 .095 .095 .625 .206 .062 40 6- 32
4207 .313 .125 .083 .047 .125 .187 .375 .095 .095 .687 .206 .062 40 6- 32
4208 .313 .125 .083 .047 .125 .187 .437 .095 .095 .750 .206 .062 40 6- 32
4209 .313 .125 .083 .047 .125 .187 .500 .095 .095 .812 .206 .062 40 6- 32
4210 .313 .125 .083 .047 .125 .187 .562 .095 .095 .875 .206 .062 40 6- 32
Part
No.		 A
Before
Knurl		 B
±
1/64		 C
±
.005		 D
+.005 -.000		 E
REF		 F
±
.005		 G
±
.010		 H
±
.005		 M
+.000
-.015		 L
REF		 N
±
.010		 O
±
.010		 Pitch Thread
4211 .313 .125 .083 .047 .125 .187 .625 .095 .095 .937 .206 .062 40 6- 32

4212

 .313 .125 .083 .047 .125 .187 .687 .095 .095 1.000 .206 .062 40 6- 32
4213 .500 .187 .083 .047 .125 .187 .437 .120 .120 .750 .406 .062 40 8- 32

4214

 .500 .187 .083 .047 .125 .187 .500 .120 .120 .812 .406 .062 40 8- 32

4215

 .500 .187 .083 .047 .125 .187 .562 .120 .120 .875 .406 .062 40 8- 32

4216

 .500 .187 .083 .047 .125 .187 .625 .120 .120 .937 .406 .062 40 8- 32

4217

 .500 .187 .083 .047 .125 .187 .687 .120 .120 1.000 .406 .062 40 8- 32

4218

 .500 .187 .083 .047 .125 .187 .750 .120 .120 1.062 .406 .062 40 8- 32

4219

 .500 .187 .083 .047 .125 .187 .812 .120 .120 1.125 .406 .062 40 8- 32

4220

 .500 .187 .083 .047 .125 .187 .875 .120 .120 1.187 .406 .062 40 8- 32

4221

 .500 .187 .083 .047 .125 .187 .937 .120 .120 1.250 .406 .062 40 8- 32
4222 .625 .187 .083 .047 .125 .187 .437 .120 .120 .750 .500 .062 40 8- 32
4223 .625 .187 .083 .047 .125 .187 .500 .120 .120 .812 .500 .062 40 8- 32
4224 .625 .187 .083 .047 .125 .187 .562 .120 .120 .875 .500 .062 40 8- 32
4225 .625 .187 .083 .047 .125 .187 .625 .120 .120 .937 .500 .062 40 8- 32
Part
No.		 A
Before
Knurl		 B
±
1/64		 C
±
.005		 D
+.005 -.000		 E
REF		 F
±
.005		 G
±
.010		 H
±
.005		 M
+.000
-.015		 L
REF		 N
±
.010		 O
±
.010		 Pitch Thread
4226 .625 .187 .083 .047 .125 .187 .687 .120 .120 1.000 .500 .062 40 8- 32
4227 .625 .187 .083 .047 .125 .187 .750 .120 .120 1.062 .500 .062 40 8- 32
4228 .625 .187 .083 .047 .125 .187 .812 .120 .120 1.125 .500 .062 40 8- 32
4229 .625 .187 .083 .047 .125 .187 .875 .120 .120 1.187 .500 .062 40 8- 32
4230 .625 .187 .083 .047 .125 .187 .937 .120 .120 1.250 .500 .062 40 8- 32

4231

 .500 .187 .099 .063 .125 .250 .500 .130 .130 .875 .406 .062 30 10- 32

4232

 .500 .187 .099 .063 .125 .250 .562 .130 .130 .937 .406 .062 30 10- 32

4233

 .500 .187 .099 .063 .125 .250 .625 .130 .130 1.000 .406 .062 30 10- 32

4234

 .500 .187 .099 .063 .125 .250 .687 .130 .130 1.062 .406 .062 30 10- 32

4235

 .500 .187 .099 .063 .125 .250 .750 .130 .130 1.125 .406 .062 30 10- 32

4236

 .500 .187 .099 .063 .125 .250 .812 .130 .130 1.187 .406 .062 30 10- 32

4237

 .500 .187 .099 .063 .125 .250 .875 .130 .130 1.250 .406 .062 30 10- 32

4238

 .500 .187 .099 .063 .125 .250 .937 .130 .130 1.313 .406 .062 30 10- 32

4239

 .625 .187 .099 .063 .125 .250 .500 .130 .130 .875 .500 .062 30 10- 32

4240

 .625 .187 .099 .063 .125 .250 .562 .130 .130 .937 .500 .062 30 10- 32
Part
No.		 A
Before
Knurl		 B
±
1/64		 C
±
.005		 D
+.005 -.000		 E
REF		 F
±
.005		 G
±
.010		 H
±
.005		 M
+.000
-.015		 L
REF		 N
±
.010		 O
±
.010		 Pitch Thread

4241

 .625 .187 .099 .063 .125 .250 .625 .130 .130 1.000 .500 .062 30 10- 32

4242

 .625 .187 .099 .063 .125 .250 .687 .130 .130 1.062 .500 .062 30 10- 32

4243

 .625 .187 .099 .063 .125 .250 .750 .130 .130 1.125 .500 .062 30 10- 32

4244

 .625 .187 .099 .063 .125 .250 .812 .130 .130 1.187 .500 .062 30 10- 32

4245

 .625 .187 .099 .063 .125 .250 .875 .130 .130 1.250 .500 .062 30 10- 32

4246

 .625 .187 .099 .063 .125 .250 .937 .130 .130 1.313 .500 .062 30 10- 32

4247

 .625 .187 .099 .063 .125 .250 .500 .152 .152 .875 .500 .062 30 12 - 24

4248

 .625 .187 .099 .063 .125 .250 .562 .152 .152 .937 .500 .062 30 12 - 24

4249

 .625 .187 .099 .063 .125 .250 .625 .152 .152 1.000 .500 .062 30 12 - 24

4250

 .625 .187 .099 .063 .125 .250 .687 .152 .152 1.062 .500 .062 30 12 - 24

4251

 .625 .187 .099 .063 .125 .250 .750 .152 .152 1.125 .500 .062 30 12 - 24

4252

 .625 .187 .099 .063 .125 .250 .812 .152 .152 1.187 .500 .062 30 12 - 24

4253

 .625 .187 .099 .063 .125 .250 .875 .152 .152 1.250 .500 .062 30 12 - 24

4254

 .625 .187 .099 .063 .125 .250 .937 .152 .152 1.313 .500 .062 30 12 - 24

4255

 .625 .187 .099 .078 .125 .250 .500 .175 .175 .875 .500 .062 30 1/4 - 20
Part
No.		 A
Before
Knurl		 B
±
1/64		 C
±
.005		 D
+.005 -.000		 E
REF		 F
±
.005		 G
±
.010		 H
±
.005		 M
+.000
-.015		 L
REF		 N
±
.010		 O
±
.010		 Pitch Thread

4256

 .625 .187 .099 .078 .125 .250 .562 .175 .175 .937 .500 .062 30 1/4 - 20

4257

 .625 .187 .099 .078 .125 .250 .625 .175 .175 1.000 .500 .062 30 1/4 - 20

4258

 .625 .187 .099 .078 .125 .250 .687 .175 .175 1.062 .500 .062 30 1/4 - 20

4259

 .625 .187 .099 .078 .125 .250 .750 .175 .175 1.125 .500 .062 30 1/4 - 20

4260

 .625 .187 .099 .078 .125 .250 .812 .175 .175 1.187 .500 .062 30 1/4 - 20

4261

 .625 .187 .099 .078 .125 .250 .875 .175 .175 1.250 .500 .062 30 1/4 - 20

4262

 .625 .187 .099 .078 .125 .250 .937 .175 .175 1.313 .500 .062 30 1/4 - 20

4263

 .750 .250 .099 .078 .250 .375 .312 .175 .175 .937 .500 .125 30 1/4 - 20

4264

 .750 .250 .099 .078 .250 .375 .375 .175 .175 1.000 .500 .125 30 1/4 - 20

4265

 .750 .250 .099 .078 .250 .375 .437 .175 .175 1.062 .500 .125 30 1/4 - 20

4266

 .750 .250 .099 .078 .250 .375 .500 .175 .175 1.125 .500 .125 30 1/4 - 20

4267

 .750 .250 .099 .078 .250 .375 .562 .175 .175 1.187 .500 .125 30 1/4 - 20

4268

 .750 .250 .099 .078 .250 .375 .625 .175 .175 1.250 .500 .125 30 1/4 - 20

4269

 .750 .250 .099 .078 .250 .375 .687 .175 .175 1.313 .500 .125 30 1/4 - 20

4270

 .750 .250 .099 .078 .250 .375 .750 .175 .175 1.375 .500 .125 30 1/4 - 20

4271

 .750 .250 .099 .078 .250 .375 .812 .175 .175 1.437 .500 .125 30 1/4 - 20
