41R Retainer for Captive Screws

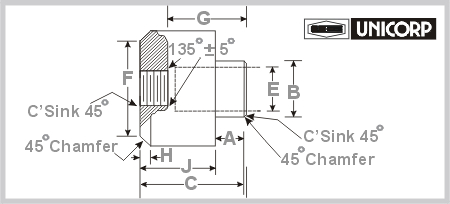

FSC- 5304- 411  Retainers listed here mate with
Series 4100 Captive Screws

 Back To Captive Screws & Retainers Page
 *Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish		 41R Installation
All Technical Data
Worksheet Helper		 Conversion Chart
Metric Captive Screws
Am. Standard Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 Thread Panel
Thickness		 A
± .005		 B
+.000
- .003		 C
±.010		 E
+.002
- .001		 F
± .003		 G
+ .005
- .010		 H
REF		 J
± .005

41R01

 4- 40 .052- .067 .062 .250 .375 .187 .281 .281 .026 .313

41R02

 4- 40 .084- .099 .093 .250 .375 .187 .281 .281 .026 .282

41R03

 4- 40 .109- .140 .125 .250 .375 .187 .281 .281 .026 .250

41R04

 6- 32 .052- .067 .062 .250 .375 .187 .281 .281 .026 .313

41R05

 6- 32 .084- .099 .093 .250 .375 .187 .281 .281 .026 .282

41R06

 6- 32 .109- .140 .125 .250 .375 .187 .281 .281 .026 .250

41R07

 8- 32 .052- .067 .062 .433 .562 .375 .531 .437 .026 .500

41R08

 8- 32 .084- .099 .093 .433 .562 .375 .531 .437 .026 .469

41R09

 8- 32 .109- .140 .125 .433 .562 .375 .531 .437 .026 .437

41R10

 8- 32 .171- .203 .187 .433 .562 .375 .531 .437 .026 .375

41R11

 8- 32 .234- .265 .250 .433 .562 .375 .531 .437 .026 .312

41R12

 10- 24 .052- .067 .062 .433 .562 .375 .531 .437 .032 .500

41R13

 10- 24 .084- .099 .093 .433 .562 .375 .531 .437 .032 .469

41R14

 10- 24 .109- .140 .125 .433 .562 .375 .531 .437 .032 .437

41R15

 10- 24 .171- .203 .187 .433 .562 .375 .531 .437 .032 .375

41R16

 10- 24 .234- .265 .250 .433 .562 .375 .531 .437 .032 .312

41R17

 10- 32 .052- .067 .062 .433 .562 .375 .531 .437 .032 .500

41R18

 10- 32 .084- .099 .093 .433 .562 .375 .531 .437 .032 .469

41R19

 10- 32 .109- .140 .125 .433 .562 .375 .531 .437 .032 .437

41R20

 10- 32 .171- .203 .187 .433 .562 .375 .531 .437 .032 .375
Part
Number		 Thread Panel
Thickness		 A
± .005		 B
+ .000
- .003		 C
± .010		 E
+ .002
- .001		 F
± .003		 G
+ .005
- .010		 H
REF		 J
± .005

41R21

 10- 32 .234- .265 .250 .433 .562 .375 .531 .437 .032 .312

41R22

 12- 24 .052- .067 .062 .433 .562 .375 .531 .437 .032 .500

41R23

 12- 24 .084- .099 .093 .433 .562 .375 .531 .437 .032 .469

41R24

 12- 24 .109- .140 .125 .433 .562 .375 .531 .437 .032 .437

41R25

 12- 24 .171- .203 .187 .433 .562 .375 .531 .437 .032 .375

41R26

 12- 24 .234-.265 .250 .433 .562 .375 .531 .437 .032 .312

41R27

 1/4- 20 .052- .067 .062 .433 .562 .375 .531 .437 .040 .500

41R28

 1/4- 20 .084- .099 .093 .433 .562 .375 .531 .437 .040 .469

41R29

 1/4- 20 .109- .140 .125 .433 .562 .375 .531 .437 .040 .437

41R30

 1/4- 20 .171- .203 .187 .433 .562 .375 .531 .437 .040 .375

41R31

 1/4- 20 .234- .265 .250 .433 .562 .375 .531 .437 .040 .312

41R32

 1/4- 28 .052- .067 .062 .433 .562 .375 .531 .437 .040 .500

41R33

 1/4- 28 .084- .099 .093 .433 .562 .375 .531 .437 .040 .469

41R34

 1/4- 28 .109- .140 .125 .433 .562 .375 .531 .437 .040 .437

41R35

 1/4- 28 .171- .203 .187 .433 .562 .375 .531 .437 .040 .375

41R36

 1/4- 28 .234- .265 .250 .433 .562 .375 .531 .437 .040 .312
