40R Retainer for Captive Screws
FSC- 5304- 411  Retainers listed here mate
with Series 4000 Captive Screws

Back To Captive Screws & Retainers Page

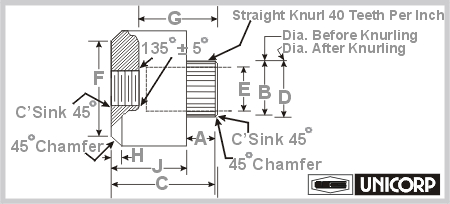

*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish		 41R Installation
All Technical Data
Worksheet Helper		 Conversion Chart
Metric Captive Screws
Am. Standard Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 Thread Panel
Thickness		 A
±
 .005		 B
+ .000
- .003		 C
±
 .010		 D
±
 .002		 E
±
 .002		 F
±
 .003		 G
+ .005		 H
REF		 J
±
 .005

40R01

 4- 40 .048- .072 .050  .188 .250 .198 .140 .250 .172 .026 .200

40R02

 4- 40 .074- .109 .080  .188 .250 .198 .140 .250 .172 .026 .170

40R03

 4- 40 .119- .156 .125  .188 .250 .198 .140 .250 .172 .026 .125

40R04

 6- 32 .048- .072 .050  .188 .313 .198 .150 .250 .219 .026 .262

40R05

 6- 32 .074- .109 .080  .188 .313 .198 .150 .250 .219 .026 .232

40R06

 6- 32 .119- .156 .125  .188 .313 .198 .150 .250 .219 .026 .187

40R07

 6- 32

.188

 .188  .188 .313 .198 .150 .250 .219 .026 .125

40R08

 8- 32 .048- .072 .050  .218 .313 .228  .188 .313 .219 .026 .262

40R09

 8- 32 .074- .109 .080 .218 .313 .228  .188 .313 .219 .026 .232

40R10

 8- 32 .119- .156 .125 .218 .313 .228  .188 .313 .219 .026 .187

40R11

 8- 32

.188

 .188 .218 .313 .228  .188 .313 .219 .026 .125

40R12

 10- 24 .048- .072 .050  .270 .375 .280  .228 .375 .250 .032 .325

40R13

 10- 24 .074- .109 .080 .270 .375 .280 .228 .375 .250 .032 .295

40R14

 10- 24 .119- .156 .125 .270 .375 .280 .228 .375 .250 .032 .250

40R15

 10- 24

.188

 .188 .270 .375 .280 .228 .375 .250 .032 .187
Part
Number		 Thread Panel
Thickness		 A
±
 .005		 B
+ .000
- .003		 C
±
 .010		 D
±
 .002		 E
±
 .002		 F
±
 .003		 G
+ .005		 H
REF		 J
±
 .005

40R16

 10- 24

.250

 .250 .270 .375 .280 .228 .375 .250 .032 .125

40R17

 10- 32 .048- .072 .050  .270 .375 .280  .228 .375 .250 .032 .325
40R18 10- 32 .074- .109 .080 .270 .375 .280 .228 .375 .250 .032 .295

40R19

 10- 32 .119- .156 .125 .270 .375 .280 .228 .375 .250 .032 .250

40R20

 10- 32

.188

 .188 .270 .375 .280 .228 .375 .250 .032 .187

40R21

 10- 32

.250

 .250 .270 .375 .280 .228 .375 .250 .032 .125

40R22

 1/4- 20 .048- .072 .050  .356 .437 .366  .295 .500 .313 .040 .387

40R23

 1/4- 20 .074- .109 .080  .356 .437 .366 .295 .500 .313 .040 .357

40R24

 1/4- 20 .119- .156 .125  .356 .437 .366  .295 .500 .313 .040 .312

40R25

 1/4- 20

.188

 .188  .356 .437 .366  .295 .500 .313 .040 .249

40R26

 1/4- 20

.250

 .250  .356 .437 .366 .295 .500 .313 .040 .187

40R27

 1/4- 28 .048- .072 .050  .356 .437 .366  .295 .500 .313 .040 .387

40R28

 1/4- 28 .074- .109 .080  .356 .437 .366 .295 .500 .313 .040 .357

40R29

 1/4- 28 .119- .156 .125  .356 .437 .366  .295 .500 .313 .040 .312

40R30

 1/4- 28

.188

 .188  .356 .437 .366  .295 .500 .313 .040 .249
Part
Number		 Thread Panel
Thickness		 A
±
 .005		 B
+ .000
- .003		 C
±
  .010		 D
±
 .002		 E
±
 .002		 F
±
 .003		 G
+ .005		 H
REF		 J
±
 .005

40R31

 1/4- 28

.250

 .250  .356 .437 .366 .295 .500 .313 .040 .187

40R32

 5/16- 18 .048- .072 .050  .404 .500 .414  .347 .625 .375 .042 .450

40R33

 5/16- 18 .074- .109 .080  .404 .500 .414  .347 .625 .375 .042 .420

40R34

 5/16- 18 .119- .156 .125  .404 .500 .414  .347 .625 .375 .042 .375

40R35

 5/16- 18

.188

 .188  .404 .500 .414  .347 .625 .375 .042 .312

40R36

 5/16- 18

.250

 .250  .404 .500 .414  .347 .625 .375 .042 .250

40R37

 3/8- 16 .074- .109 .080  .469 .562 .475 .406 .875 .437 .050 .482

40R38

 3/8- 16 .119- .156 .125  .469 .562 .475 .406 .875 .437 .050 .437

40R39

 3/8- 16

.188

 .188  .469 .562 .475 .406 .875 .437 .050 .374

40R40

 3/8- 16

.250

 .250 469 .562 .475 .406 .875 .437 .050 .312
