Thumb Screws Push Type - 4000 Series

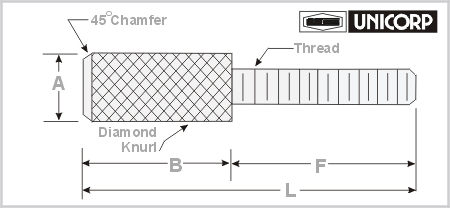

* External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes		 Conversion Chart
Metric Thumb Screws
Standard Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 A  ±  .010 B  ±  .005 F  ±  .005 L  ±  .005 Thread
THS4001 .187 .375 .500 .875 6- 32
THS4002 .187 .375 .625 1.000 6- 32
THS4003 .187 .375 .750 1.125 6- 32
THS4004 .187 .375 .875 1.250 6- 32
THS4005 .187 .375 1.000 1.375 6- 32
THS4006 .187 .375 1.125 1.500 6- 32
THS4007 .187 .375 1.250 1.625 6- 32
THS4008 .187 .375 1.375 1.750 6- 32
THS4009 .187 .375 1.500 1.875 6- 32
THS4010 .187 .375 1.625 2.000 6- 32

THS4011 .187 .375 1.750 2.125 6- 32
THS4012 .187 .375 1.875 2.250 6- 32
THS4013 .187 .375 2.000 2.375 6- 32
THS4015 .187 .375 .500 .875 8- 32
THS4016 .187 .375 .625 1.000 8- 32
THS4017 .187 .375 .750 1.125 8- 32
THS4018 .187 .375 .875 1.250 8- 32
THS4019 .187 .375 1.000 1.375 8- 32
THS4020 .187 .375 1.125 1.500 8- 32
THS4021 .187 .375 1.250 1.625 8- 32
Part
Number		 A  ±  .010 B  ±  .005 F  ±  .005 L  ±  .005 Thread
THS4022 .187 .375 1.375 1.750 8- 32
THS4023 .187 .375 1.500 1.875 8- 32
THS4024 .187 .375 1.625 2.000 8- 32
THS4025 .187 .375 1.750 2.125 8- 32
THS4026 .187 .375 1.875 2.250 8- 32
THS4027 .187 .375 2.000 2.375 8- 32
THS4030 .250 .500 .500 1.000 10- 24
THS4031 .250 .500 .625 1.125 10- 24
THS4032 .250 .500 .750 1.250 10- 24
THS4033 .250 .500 .875 1.375 10- 24

THS4034 .250 .500 1.000 1.500 10- 24
THS4035 .250 .500 1.125 1.625 10- 24
THS4036 250 .500 1.250 1.750 10- 24
THS4037 250 .500 1.375 1.875 10- 24
THS4038 .250 .500 1.500 2.000 10- 24
THS4039 .250 .500 1.625 2.125 10- 24
THS4040 .250 .500 1.750 2.250 10- 24
THS4041 .250 .500 1.875 2.375 10- 24
THS4042 .250 .500 2.000 2.500 10- 24
THS4045 .250 .500 .500 1.000 10- 32
Part
Number		 A  ±  .010 B  ±  .005 F  ±  .005 L  ±  .005 Thread
THS4046 .250 .500 .625 1.125 10- 32
THS4047 .250 .500 .750 1.250 10- 32
THS4048 250 .500 .875 1.375 10- 32
THS4049 250 .500 1.000 1.500 10- 32
THS4050 .250 .500 1.125 1.625 10- 32
THS4051 .250 .500 1.250 1.750 10- 32
THS4052 .250 .500 1.375
