Thumb Screws Plain Type - 3000 Series

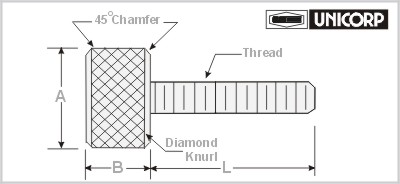

* External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish		 All Technical Data
Worksheet Helper
ND Thread Lock Info
ND Thread Codes		 Conversion Chart
Metric Thumb Screws
Standard Thumb Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
Number		 A  ±  .010 B  ±  .005 L  ±  .005 Thread
THS3001 .313 .187 .313 4- 40
THS3002 .313 .187 .375 4- 40
THS3003 .313 .187 .437 4- 40
THS3004 .313 .187 .500 4- 40
THS3005 .313 .187 .562 4- 40
THS3007 .313 .187 .313 6- 32
THS3008 .313 .187 .375 6- 32
THS3009 .313 .187 .437 6- 32
THS3010 .313 .187 .500 6- 32
THS3011 .313 .187 .562 6- 32
THS3014 .313 .187 .375 8- 32
THS3015 .313 .187 .437 8- 32
THS3016 .313 .187 .500 8- 32
THS3017 .313 .187 .562 8- 32
THS3018 .313 .187 .625 8- 32
THS3019 .313 .187 .687 8- 32
THS3020 .313 .187 .750 8- 32
THS3023 .375 .187 .375 8- 32
THS3024 .375 .187 .437 8- 32
THS3025 .375 .187 .500 8- 32
Part
Number		 A  ±  .010 B  ±  .005 L  ±  .005 Thread
THS3026 .375 .187 .562 8- 32
THS3027 .375 .187 .625 8- 32
THS3028 .375 .187 .687 8- 32
THS3029 .375 .187 .750 8- 32
THS3033 .375 .187 .375 10- 32
THS3034 .375 .187 .437 10- 32
THS3035 .375 .187 .500 10- 32
THS3036 .375 .187 .562 10- 32
THS3037 .375 .187 .625 10- 32
THS3038 .375 .187 .687 10- 32
THS3039 .375 .187 .750 10- 32
THS3042 .437 .187 .375 10- 32
THS3043 .437 .187 .437 10- 32
THS3044 .437 .187 .500 10- 32
THS3045 .437 .187 .562 10- 32
THS3046 .437 .187 .625 10- 32
THS3047 .437 .187 .687 10- 32
THS3048 .437 .187 .750 10- 32
THS3052 .500 .250 .500 1/4- 20
THS3053 .500 .250 .562 1/4- 20
Part
Number		 A  ±  .010 B  ±  .005 L  ±  .005 Thread
THS3054 .500 .250 .625 1/4- 20
THS3055 .500 .250 .687 1/4- 20
THS3056 .500 .250 .750 1/4- 20
THS3057 .500 .250 .812 1/4- 20
THS3058 .500 .250 .875 1/4- 20
THS3059 .500 .250 .937 1/4- 20
THS3060 .500 .250 1.000 1/4- 20
THS3063 .500 .250 .500 1/4- 28
THS3064 .500 .250 .562 1/4- 28
THS3065 .500 .250 .625 1/4- 28
THS3066 .500 .250 .687 1/4- 28
THS3067 .500 .250 .750 1/4- 28
THS3068 .500 .250 .812 1/4- 28
THS3069 .500 .250 .875 1/4- 28
THS3070 .500 .250 <
