Metric Pull Handle

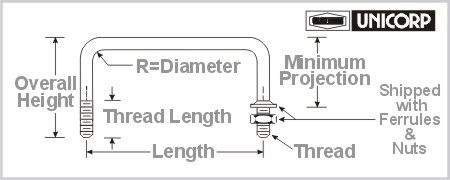

8mm - Round - External Thread No Shoulder
(MC - Series) (Shipped with Ferrules and Nuts)
Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
8mm Round
38mm Overall Height
M8 x 1 Threads		 44mm Overall Height
M8 x 1 Threads
Length Brass Aluminum Stainless Steel Length Brass Aluminum Stainless Steel
76 MC1611 MC1614 MC1617 76 MC1731 MC1734 MC1737
89 MC1621 MC1624 MC1627 89 MC1741 MC1744 MC1747
95 MC1631 MC1634 MC1637 95 MC1751 MC1754 MC1757
102 MC1641 MC1644 MC1647 102 MC1761 MC1764 MC1767
108 MC1651 MC1654 MC1657 108 MC1771 MC1774 MC1777
114 MC1661 MC1764 MC1767 114 MC1781 MC1784 MC1787
116 MC1671 MC1674 MC1677 121 MC1791 MC1794 MC1797
121 MC1681 MC1684 MC1687 127 MC1801 MC1804 MC1807
127 MC1691 MC1694 MC1697 152 MC1811 MC1814 MC1817
152 MC1701 MC1704 MC1707 203 MC1821 MC1824 MC1827
203 MC1711 MC1714 MC1717 229 MC1831 MC1834 MC1837
229 MC1721 MC1724 MC1727
8mm Round
51mm Overall Height
M8 x 1 Threads
Length Brass Aluminum Stainless Steel
76 MC1841 MC1844 MC1847
89 MC1851 MC1854 MC1857
95 MC1861 MC1864 MC1867
102 MC1871 MC1874 MC1877
108 MC1881 MC1884 MC1887
114 MC1891 MC1894 MC1897
116 MC1901 MC1904 MC1907
121 MC1911 MC1914 MC1917
127 MC1921 MC1924 MC1927
152 MC1931 MC1934 MC1937
203 MC1941 MC1944 MC1947
229 MC1951 MC1954 MC1957
Overall Height Thread Length Minimum Projection
38
44
51
54		 16
24
24
24		 22
22
27
27
