Metric 5mm Hex Jack Screws

Back To Jack Screws Page

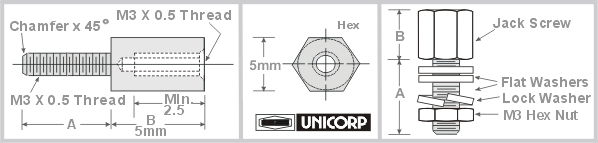

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

 Build Part Number
 Material & Shape
 Plating & Finish		  All Technical Data
 Worksheet Helper
  ND Thread Lock Info
 ND Thread Codes  		 Conversion Chart
 Am. Standard Jack Screws
 Metric Jackscrews

CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

 Part Number

A
External Thread Length

B
Body Length

Diameter

Internal & External
Thread
MJAX 201 5

5

5

  M3 x 0.5
MJAX 202 6.5

5

5

  M3 x 0.5
MJAX 203 8

5

5

  M3 x 0.5
MJAX 204 9.5

5

5

  M3 x 0.5
MJAX 205 11

5

5

  M3 x 0.5
MJAX 206 12.5

5

5

  M3 x 0.5
MJAX 207 14

5

5

  M3 x 0.5
MJAX 208 15.5

5

5

  M3 x 0.5
MJAX 209 17.5

5

5

  M3 x 0.5
MJAX 210 19

5

5

  M3 x 0.5

MATERIALS MATERIAL CODE TOLERANCES SUPPLIED UNASSEMBLED
WITH
Brass M03 Body Length:
±  .15mm		 2-  M3 Flat Washers
Aluminum M06 1-  M3 Lock Washer
Stainless Steel M09 External Thread Length:  ±  .25mm 1-  M3 x 0.5 Nut
Carbon Steel M12
M3 X 0.5  Internal Thread- Tap Depth 2.5 Min.
Diameter: Standard
Commercial Bar Stock Tolerances
