 Metric 4.5mm Hex Jack Screws

Back To Jack Screws Page

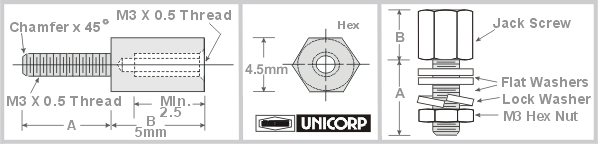

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

 Build Part Number
 Material & Shape
 Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes  		 Conversion Chart
 Am. Standard Jack Screws
 Metric Jackscrews

CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

 Part Number

A
External Thread Length

B
Body Length

Diameter

Internal &
External Thread
MJAX101 5

5

4.5

M3
MJAX102 6.5

5

4.5

M3
MJAX103 8

5

4.5

M3
MJAX104 9.5

5

4.5

M3
MJAX105 11

5

4.5

M3
MJAX106 12.5

5

4.5

M3
MJAX107 14

5

4.5

M3
MJAX108 15.5

5

4.5

M3
MJAX109 17.5

5

4.5

M3
MJAX110 19

5

4.5

M3

MATERIALS MATERIAL CODE TOLERANCES SUPPLIED UNASSEMBLED
WITH
Brass M03 Body Length:
±  .15mm		 2-  M3 Flat Washers
Aluminum M06 1-  M3 Lock Washer
Stainless Steel M09 External Thread Length:  ±  .25mm 1-  M3 X 0.5 Nut
Carbon Steel M12
M3 X 0.5  Internal Thread- Tap Depth 2.5 Min.
Diameter: Standard
Commercial Bar Stock Tolerances
