.291 Metric Insulating Washers (Flat)

Back To Insulating Washers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Tolerances		   All Technical Data
  Worksheet Helper
  Conversion Chart		   Am. Standard Insulating Washers
   Metric insulating Washers
.291 Inside Diameter - For Size M7 Fasteners
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

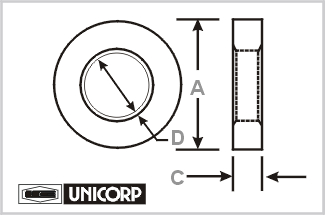

Part Number A C D Part Number A C D Part Number A C D
MWF3401 11 0.4 7.4 MWF3416 14 0.4 7.4 MWF3431 19 0.4 7.4
MWF3402 11 0.8 7.4 MWF3417 14 0.8 7.4 MWF3432 19 0.8 7.4
MWF3403 11 1.2 7.4 MWF3418 14 1.2 7.4 MWF3433 19 1.2 7.4
MWF3404 11 1.6 7.4 MWF3419 14 1.6 7.4 MWF3434 19 1.6 7.4
MWF3405 11 2.4 7.4 MWF3420 14 2.4 7.4 MWF3435 19 2.4 7.4
MWF3406 12 0.4 7.4 MWF3421 15 0.4 7.4 MWF3436 21 0.4 7.4
MWF3407 12 0.8 7.4 MWF3422 15 0.8 7.4 MWF3437 21 0.8 7.4
MWF3408 12 1.2 7.4 MWF3423 15 1.2 7.4 MWF3438 21 1.2 7.4
MWF3409 12 1.6 7.4 MWF3424 15 1.6 7.4 MWF3439 21 1.6 7.4
MWF3410 12 2.4 7.4 MWF3425 15 2.4 7.4 MWF3440 21 2.4 7.4
MWF3411 13 0.4 7.4 MWF3426 16 0.4 7.4 MWF3441 25 0.4 7.4
MWF3412 13 0.8 7.4 MWF3427 16 0.8 7.4 MWF3442 25 0.8 7.4
MWF3413 13 1.2 7.4 MWF3428 16 1.2 7.4 MWF3443 25 1.2 7.4
MWF3414 13 1.6 7.4 MWF3429 16 1.6 7.4 MWF3444 25 1.6 7.4
MWF3415 13 2.4 7.4 MWF3430 16 2.4 7.4 MWF3445 25 2.4 7.4
Tolerances
A Major Diameter  + 0.26 / - 0.15
C Thickness .4  through 1.6  ±  .16
1.7  through  2.4  ±  .23
D Inside Diameter + .26 / - .00
