.090 Metric Insulating Washers (Flat)
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Shoulder Length		   Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Standard Insulating Washers
   Metric insulating Washers
.090 Inside Diameter - For Size M2 Fasteners
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number A C D Part Number A C D Part Number A C D
MWF3051 4 0.4 2.3 MWF3060 6 0.8 2.3 MWF3069 8 1.2 2.3
MWF3052 4 0.8 2.3 MWF3061 6 1.2 2.3 MWF3070 8 1.6 2.3
MWF3053 4 1.2 2.3 MWF3062 6 1.6 2.3 MWF3071 10 0.4 2.3
MWF3054 4 1.6 2.3 MWF3063 7 0.4 2.3 MWF3072 10 0.8 2.3
MWF3055 5 0.4 2.3 MWF3064 7 0.8 2.3 MWF3073 10 1.2 2.3
MWF3056 5 0.8 2.3 MWF3065 7 1.2 2.3 MWF3074 10 1.6 2.3
MWF3057 5 1.2 2.3 MWF3066 7 1.6 2.3 MWF3075 11 0.4 2.3
MWF3058 5 1.6 2.3 MWF3067 8 0.4 2.3 MWF3076 11 0.8 2.3
MWF3059 6 0.4 2.3 MWF3068 8 0.8 2.3 MWF3077 11 1.2 2.3
        MWF3078 11 1.6 2.3
Tolerances

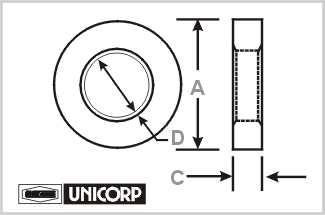

A Major Diameter  + 0.26 / - 0.15
C Thickness .4  through 1.6  ±  .16
1.7  through  2.4  ±  .23
D Inside Diameter + .26 / - .00
