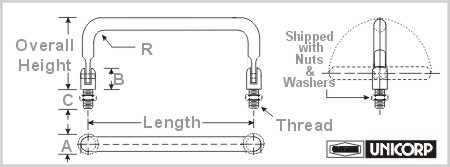

Metric Folding Handle
6mm - Round - 180° Three Position - External Thread
(MN - Series) (Shipped with Nuts and Washers)
Back To Handles Page
*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
6mm Round
36mm Overall Height
M6 x 1 Threads		 36mm Overall Height
M8 x 1 Threads
Length Brass Aluminum Stainless Steel Length Brass Aluminum Stainless Steel
102 MN1012 MN1015 MN1018 102 MN1082 MN1085 MN1088
108 MN1022 MN1025 MN1028 108 MN1092 MN1095 MN1098
114 MN1032 MN1035 MN1038 114 MN1102 MN1105 MN1108
127 MN1042 MN1045 MN1048 127 MN1112 MN1115 MN1118
152 MN1052 MN1055 MN1058 152 MN1122 MN1125 MN1128
178 MN1062 MN1065 MN1068 178 MN1132 MN1135 MN1138
203 MN1072 MN1075 MN1078 203 MN1142 MN1145 MN1148
Material Diameter A B C R
6
8
10		 11
13
16		 8
10
13		 14
16
16		 6
8
10
