Metric Extruded Handle - Bar Handle
8mm x 13mm - 4 Legs - Aluminum Insert
(MEF - Series) Black Anodized Aluminum Insert

Back To Handles Page
*Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		   Depth of Threads
  Applicable Tolerances
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Am. Standard Handles
  Metric Handles
Black Vinyl insert is standard.
Other color or wood grain vinyl available upon special order.
Legs:
This style handle may be ordered with either 8mm or 10mm diameter legs.
To order  8mm diameter legs: Add "A" to Part Number.
To order 10mm diameter legs: Add "B" to Part Number.
Example:  MEF149A  /  MEF149B
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

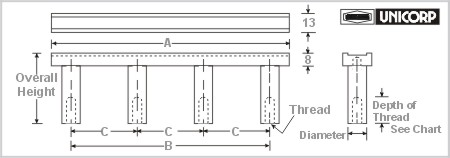

8mm  x 13mm Aluminum Extrusion
27mm Overall Height 30mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C
MEF101 MEF107 327 305 102 MEF113 MEF119 327 305 102
MEF102 MEF108 343 321 107 MEF114 MEF120 343 321 107
MEF103 MEF109 352 330 110 MEF115 MEF121 352 330 110
MEF104 MEF110 362 340 113 MEF116 MEF122 362 340 113
MEF105 MEF111 378 356 116 MEF117 MEF123 378 356 116
MEF106 MEF112 397 375 125 MEF118 MEF124 397 375 125
8mm  x 13mm Aluminum Extrusion
33mm Overall Height 36mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C
MEF125 MEF131 327 305 102 MEF137 MEF143 327 305 102
MEF126 MEF132 343 321 107 MEF138 MEF144 343 321 107
MEF127 MEF133 352 330 110 MEF139 MEF145 352 330 110
MEF128 MEF134 362 340 113 MEF140 MEF146 362 340 113
MEF129 MEF135 378 356 116 MEF141 MEF147 378 356 116
MEF130 MEF136 397 275 125 MEF142 MEF148 397 375 125
8mm  x 13mm Aluminum Extrusion
38mm Overall Height
M4 x 0.7
Threads		 M5 x 0.8
Threads		 A B C

MEF149 MEF155 327 305 102
MEF150 MEF156 343 321 107
MEF151 MEF157 352 330 110
MEF152 MEF158 362 340 113
MEF153 MEF159 378 356 116
MEF154 MEF160 397 375 125
