Metric Decorative Panel Washers
 Used to prevent damage to the panel being secured. Available in different finishes.
*Slightly Chamfered to Permit Smooth Entry / Fit.

 All Technical Data
 Conversion Chart		  Standard Captive Screws
 Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part #
Brass		 Part #
Aluminum		 Part #
Stainless
Steel		 Part #

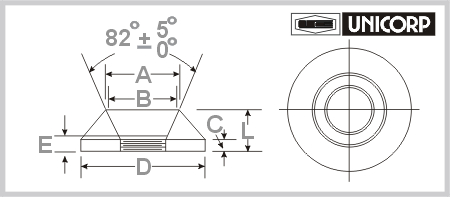

Nylon		 A
±
0.15		 B
 ±
 0.15		 C
 ±
0.15		 D
 ±
  0.1		 E
 ±
0.16		 L
 ±
0.15		 Thread
MPW431B MPW431A MPW431SS MPW431N 8.2 6 0.6 10 1.6 3.7 M2.5 x 0.45
MPW432B MPW432A MPW432SS MPW432N  8.2 6 0.6 11 1.6 3.7 M3.0 x 0.5
MPW433B MPW433A MPW433SS MPW433N  8.2 6 0.6 11 1.6 3.7 M3.5 x 0.6
MPW434B MPW434A MPW434SS MPW434N  9.7 8.7 .9 11 1.8 4.9 M4.0 x 0.7
MPW435B MPW435A MPW435SS MPW435N 11 10 .9 13 2 5.4 M5.0 x 0.8
MPW436B MPW436A MPW436SS MPW436N 11 10 .9 13 2 5.4 M6.0 x 1.0
