Metric 8mm Swage Spacers
(Unthreaded / Clear Hole)

 Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		 Hole Clearance
Punch/ Anvil Part Numbers
All Technical Data		 Worksheet Helper
Conversion Chart
America Standard Swages
Metric Swages

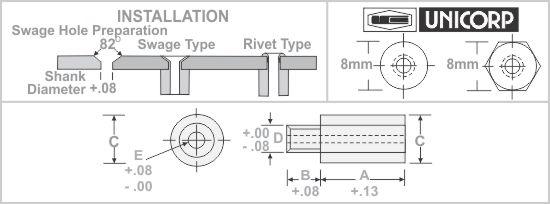

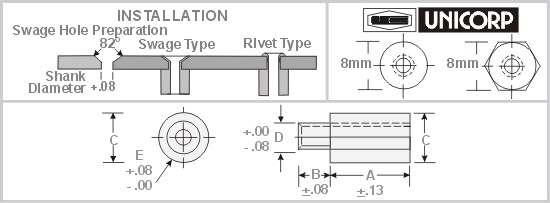

8mm- Major Diameter  x  5.94 Shank  x  3.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to    Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU475 3 * 8 5.94 3.7 MSU498 14.5 * 8 5.94 3.7
MSU476 3.5 * 8 5.94 3.7 MSU499 15 * 8 5.94 3.7
MSU477 4 * 8 5.94 3.7 MSU500 15.5 * 8 5.94 3.7
MSU478 4.5 * 8 5.94 3.7 MSU501 16 * 8 5.94 3.7
MSU479 5 * 8 5.94 3.7 MSU502 16.5 * 8 5.94 3.7
MSU480 5.5 * 8 5.94 3.7 MSU503 17 * 8 5.94 3.7
MSU481 6 * 8 5.94 3.7 MSU504 17.5 * 8 5.94 3.7
MSU482 6.5 * 8 5.94 3.7 MSU505 18 * 8 5.94 3.7
MSU483 7 * 8 5.94 3.7 MSU506 18.5 * 8 5.94 3.7
MSU484 7.5 * 8 5.94 3.7 MSU507 19 * 8 5.94 3.7
MSU485 8 * 8 5.94 3.7 MSU508 19.5 * 8 5.94 3.7
MSU486 8.5 * 8 5.94 3.7 MSU509 20 * 8 5.94 3.7
MSU487 9 * 8 5.94 3.7 MSU510 20.5 * 8 5.94 3.7
MSU488 9.5 * 8 5.94 3.7 MSU511 21 * 8 5.94 3.7
MSU489 10 * 8 5.94 3.7 MSU512 21.5 * 8 5.94 3.7
MSU490 10.5 * 8 5.94 3.7 MSU513 22 * 8 5.94 3.7
MSU491 11 * 8 5.94 3.7 MSU514 22.5 * 8 5.94 3.7
MSU492 11.5 * 8 5.94 3.7 MSU515 23 * 8 5.94 3.7
MSU493 12 * 8 5.94 3.7 MSU516 23.5 * 8 5.94 3.7
MSU494 12.5 * 8 5.94 3.7 MSU517 24 * 8 5.94 3.7
MSU495 13 * 8 5.94 3.7 MSU518 24.5 * 8 5.94 3.7
MSU496 13.5 * 8 5.94 3.7 MSU519 25 * 8 5.94 3.7
MSU497 14 * 8 5.94 3.7 MSU520 25.5 * 8 5.94 3.7
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
8mm Diameter UP5 AN780 AN1040 3 -  5.5mm MSU475 - MSU480
UP5 AN790 AN1050 6 - 12.5mm MSU481 - MSU494
UP5 AN800 AN1060 13 - 18.5mm MSU495 - MSU506
UP5 AN810 AN1070 19 - 25.5mm MSU507 - MSU520
8mm - Major Diameter  x  5.94 Shank  x  4.3 Inside Diameter
SELECT PART NUMBER then Go to Build Part Number (Skip Step 1)
See Swage Tooling Below   /  See Shank Length
Part
Number		 A B C D E Part
Number		 A B C D E
MSU525 3 * 8 5.94 4.3 MSU548 14.5 * 8 5.94 4.3
MSU526 3.5 * 8 5.94 4.3 MSU549 15 * 8 5.94 4.3
MSU527 4 * 8 5.94 4.3 MSU550 15.5 * 8 5.94 4.3
MSU528 4.5 * 8 5.94 4.3 MSU551 16 * 8 5.94 4.3
MSU529 5 * 8 5.94 4.3 MSU552 16.5 * 8 5.94 4.3
MSU530 5.5 * 8 5.94 4.3 MSU553 17 * 8 5.94 4.3
MSU531 6 * 8 5.94 4.3 MSU554 17.5 * 8 5.94 4.3
MSU532 6.5 * 8 5.94 4.3 MSU555 18 * 8 5.94 4.3
MSU533 7 * 8 5.94 4.3 MSU556 18.5 * 8 5.94 4.3
MSU534 7.5 * 8 5.94 4.3 MSU557 19 * 8 5.94 4.3
MSU535 8 * 8 5.94 4.3 MSU558 19.5 * 8 5.94 4.3
MSU536 8.5 * 8 5.94 4.3 MSU559 20 * 8 5.94 4.3
MSU537 9 * 8 5.94 4.3 MSU560 20.5 * 8 5.94 4.3
MSU538 9.5 * 8 5.94 4.3 MSU561 21 * 8 5.94 4.3
MSU539 10 * 8 5.94 4.3 MSU562 21.5 * 8 5.94 4.3
MSU540 10.5 * 8 5.94 4.3 MSU563 22 * 8 5.94 4.3
MSU541 11 * 8 5.94 4.3 MSU564 22.5 * 8 5.94 4.3
MSU542 11.5 * 8 5.94 4.3 MSU565 23 * 8 5.94 4.3
MSU543 12 * 8 5.94 4.3 MSU566 23.5 * 8 5.94 4.3
MSU544 12.5 * 8 5.94 4.3 MSU567 24 * 8 5.94 4.3
MSU545 13 * 8 5.94 4.3 MSU568 24.5 * 8 5.94 4.3
MSU546 13.5 * 8 5.94 4.3 MSU569 25 * 8 5.94 4.3
MSU547 14 * 8 5.94 4.3 MSU570 25.5 * 8 5.94 4.3
Swage Tooling For: Punch Round Anvil Hex Anvil Length Unicorp Part Number
8mm Diameter UP5 AN780 AN1040 3 -  5.5mm MSU525 - MSU530
UP5 AN790 AN1050 6 - 12.5mm MSU531 - MSU544
UP5 AN800 AN1060 13 - 18.5mm MSU545 - MSU556
UP5 AN810 AN1070 19 - 25.5mm MSU557 - MSU570
