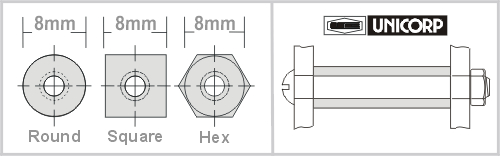

Metric 8mm Spacers (Unthreaded Standoffs)
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish		   Inside Hole Diameter
  All Technical Data
  Worksheet Helper		   Conversion Chart
  Standard Spacers
  Metric Spacers
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
MS1401 1 MS1422 11.5 MS1443 22 MS1464 32.5 MS1485 43
MS1402 1.5 MS1423 12 MS1444 22.5 MS1465 33 MS1486 43.5
MS1403 2 MS1424 12.5 MS1445 23 MS1466 33.5 MS1487 44
MS1404 2.5 MS1425 13 MS1446 23.5 MS1467 34 MS1488 44.5
MS1405 3 MS1426 13.5 MS1447 24 MS1468 34.5 MS1489 45
MS1406 3.5 MS1427 14 MS1448 24.5 MS1469 35 MS1490 45.5
MS1407 4 MS1428 14.5 MS1449 25 MS1470 35.5 MS1491 46
MS1408 4.5 MS1429 15 MS1450 25.5 MS1471 36 MS1492 46.5
MS1409 5 MS1430 15.5 MS1451 26 MS1472 36.5 MS1493 47
MS1410 5.5 MS1431 16 MS1452 26.5 MS1473 37 MS1494 47.5
MS1411 6 MS1432 16.5 MS1453 27 MS1474 37.5 MS1495 48
MS1412 6.5 MS1433 17 MS1454 27.5 MS1475 38 MS1496 48.5
MS1413 7 MS1434 17.5 MS1455 28 MS1476 38.5 MS1497 49
MS1414 7.5 MS1435 18 MS1456 28.5 MS1477 39 MS1498 49.5
MS1415 8 MS1436 18.5 MS1457 29 MS1478 39.5 MS1499 50
MS1416 8.5 MS1437 19 MS1458 29.5 MS1479 40 MS1500 50.5
MS1417 9 MS1438 19.5 MS1459 30 MS1480 40.5 MS1501 51
MS1418 9.5 MS1439 20 MS1460 30.5 MS1481 41 X X
MS1419 10 MS1440 20.5 MS1461 31 MS1482 41.5 X X
MS1420 10.5 MS1441 21 MS1462 31.5 MS1483 42 X X
MS1421 11 MS1442 21.5 MS1463 32 MS1484 42.5 X X
