 Metric 6mm Male-Female Standoffs (Threaded)
 Back To Male-Female Standoffs Page

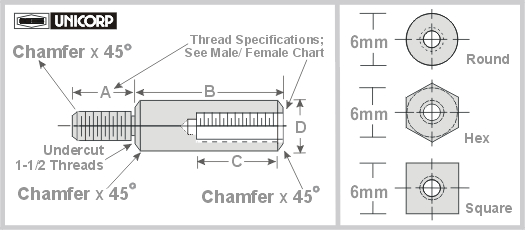

 *External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Am. Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B
MMF1801 5 MMF1845 27 MMF1889 49 MMF1933 71 MMF1977 93
MMF1802 5.5 MMF1846 27.5 MMF1890 49.5 MMF1934 71.5 MMF1978 93.5
MMF1803 6 MMF1847 28 MMF1891 50 MMF1935 72 MMF1979 94
MMF1804 6.5 MMF1848 28.5 MMF1892 50.5 MMF1936 72.5 MMF1980 94.5
MMF1805 7 MMF1849 29 MMF1893 51 MMF1937 73 MMF1981 95
MMF1806 7.5 MMF1850 29.5 MMF1894 51.5 MMF1938 73.5 MMF1982 95.5
MMF1807 8 MMF1851 30 MMF1895 52 MMF1939 74 MMF1983 96
MMF1808 8.5 MMF1852 30.5 MMF1896 52.5 MMF1940 74.5 MMF1984 96.5
MMF1809 9 MMF1853 31 MMF1897 53 MMF1941 75 MMF1985 97
MMF1810 9.5 MMF1854 31.5 MMF1898 53.5 MMF1942 75.5 MMF1986 97.5
MMF1811 10 MMF1855 32 MMF1899 54 MMF1943 76 MMF1987 98
MMF1812 10.5 MMF1856 32.5 MMF1900 54.5 MMF1944 76.5 MMF1988 98.5
MMF1813 11 MMF1857 33 MMF1901 55 MMF1945 77 MMF1989 99
MMF1814 11.5 MMF1858 33.5 MMF1902 55.5 MMF1946 77.5 MMF1990 99.5
MMF1815 12 MMF1859 34 MMF1903 56 MMF1947 78 MMF1991 100
MMF1816 12.5 MMF1860 34.5 MMF1904 56.5 MMF1948 78.5 MMF1992 101
MMF1817 13 MMF1861 35 MMF1905 57 MMF1949 79 MMF1993 102
MMF1818 13.5 MMF1862 35.5 MMF1906 57.5 MMF1950 79.5 MMF1994 103
MMF1819 14 MMF1863 36 MMF1907 58 MMF1951 80 MMF1995 104
MMF1820 14.5 MMF1864 36.5 MMF1908 58.5 MMF1952 80.5 MMF1996 105
MMF1821 15 MMF1865 37 MMF1909 59 MMF1953 81 MMF1997 106
MMF1822 15.5 MMF1866 37.5 MMF1910 59.5 MMF1954 81.5 MMF1998 107
MMF1823 16 MMF1867 38 MMF1911 60 MMF1955 82 MMF1999 108
MMF1824 16.5 MMF1868 38.5 MMF1912 60.5 MMF1956 82.5 MMF2000 109
MMF1825 17 MMF1869 39 MMF1913 61 MMF1957 83 MMF2001 110
MMF1826 17.5 MMF1870 39.5 MMF1914 61.5 MMF1958 83.5 MMF2002 111
MMF1827 18 MMF1871 40 MMF1915 62 MMF1959 84 MMF2003 112
MMF1828 18.5 MMF1872 40.5 MMF1916 62.5 MMF1960 84.5 MMF2004 113
MMF1829 19 MMF1873 41 MMF1917 63 MMF1961 85 MMF2005 114
MMF1830 19.5 MMF1874 41.5 MMF1918 63.5 MMF1962 85.5 MMF2006 115
MMF1831 20 MMF1875 42 MMF1919 64 MMF1963 86 MMF2007 116
MMF1832 20.5 MMF1876 42.5 MMF1920 64.5 MMF1964 86.5 MMF2008 117
MMF1833 21 MMF1877 43 MMF1921 65 MMF1965 87 MMF2009 118
MMF1834 21.5 MMF1878 43.5 MMF1922 65.5 MMF1966 87.5 MMF2010 119
MMF1835 22 MMF1879 44 MMF1923 66 MMF1967 88 MMF2011 120
MMF1836 22.5 MMF1880 44.5 MMF1924 66.5 MMF1968 88.5 MMF2012 121
MMF1837 23 MMF1881 45 MMF1925 67 MMF1969
