Metric 6mm Male-Male Standoffs
Back To Male-Male Standoffs Page

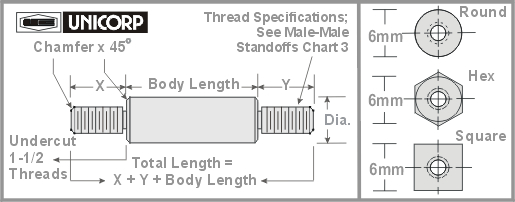

* External Thread has a 45°Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Am. Standard Male-Male
 Metric Male-Male
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1501 3 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1544 24.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1502 3.5 6 MMX1545 25 6
MMX1503 4 6 MMX1546 25.5 6
MMX1504 4.5 6 MMX1547 26 6
MMX1505 5 6 MMX1548 26.5 6
MMX1506 5.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1549 27 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1507 6 6 MMX1550 27.5 6
MMX1508 6.5 6 MMX1551 28 6
MMX1509 7 6 MMX1552 28.5 6
MMX1510 7.5 6 MMX1553 29 6
MMX1511 8 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1554 29.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1512 8.5 6 MMX1555 30 6
MMX1513 9 6 MMX1556 31 6
MMX1514 9.5 6 MMX1557 32 6
MMX1515 10 6 MMX1558 33 6
MMX1516 10.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1559 34 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1517 11 6 MMX1560 35 6
MMX1518 11.5 6 MMX1561 36 6
MMX1519 12 6 MMX1562 37 6
MMX1520 12.5 6 MMX1563 38 6
MMX1521 13 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1564 39 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1522 13.5 6 MMX1565 40 6
MMX1523 14 6 MMX1566 41 6
MMX1524 14.5 6 MMX1567 42 6
MMX1525 15 6 MMX1568 43 6
MMX1526 15.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1569 44 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1527 16 6 MMX1570 45 6
MMX1528 16.5 6 MMX1571 46 6
MMX1529 17 6 MMX1572 47 6
MMX1530 17.5 6 MMX1573 48 6
MMX1531 18 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1574 49 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1532 18.5 6 MMX1575 50 6
MMX1533 19 6 MMX1576 51 6
MMX1534 19.5 6 MMX1577 52 6
MMX1535 20 6 MMX1578 53 6
MMX1536 20.5 6 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1579 54 6 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1537 21 6 MMX1580 55 6
MMX1538 21.5 6 MMX1581 56 6
MMX1539 22 6 MMX1582 57 6
MMX1540 22.5 6 MMX1583 58 6
MMX1541 23 6 MMX1584 59 6
MMX1542 23.5 6 MMX1585 60 6
MMX1543 24 6
Thread Chart for Metric Male-Male Standoffs Part Number


Thread Size

Thread Code  &  Thread Length
M3 x 0.5  M3 - 1 5
M3 x 0.5  M3 - 2 6
M3.5 x 0.6  M3.5 - 1 6
M3.5 x 0.6  M3.5 - 2 6.5
M4 x 0.7  M4 - 1 8.5
M4 x 0.7  M4 - 2 9
M4 x 0.7  M4 - 3 9.5
M5 x 0.8  M5 - 1 9
M5 x 0.8  M5 - 2 9.5
M5 x 0.8  M5 - 3 10
*Mix and Match Different Threads and Lengths For Each Part.
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
