 Metric 5mm Male-Female Standoffs (Threaded)
 Back To Male-Female Standoffs Page

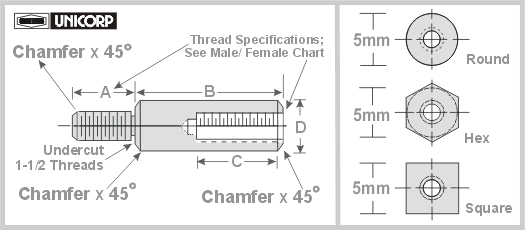

 *External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
 Build Part Number
 Material & Shape
 Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Am. Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B
MMF1501 5 MMF1545 27 MMF1589 49 MMF1633 71 MMF1677 93
MMF1502 5.5 MMF1546 27.5 MMF1590 49.5 MMF1634 71.5 MMF1678 93.5
MMF1503 6 MMF1547 28 MMF1591 50 MMF1635 72 MMF1679 94
MMF1504 6.5 MMF1548 28.5 MMF1592 50.5 MMF1636 72.5 MMF1680 94.5
MMF1505 7 MMF1549 29 MMF1593 51 MMF1637 73 MMF1681 95
MMF1506 7.5 MMF1550 29.5 MMF1594 51.5 MMF1638 73.5 MMF1682 95.5
MMF1507 8 MMF1551 30 MMF1595 52 MMF1639 74 MMF1683 96
MMF1508 8.5 MMF1552 30.5 MMF1596 52.5 MMF1640 74.5 MMF1684 96.5
MMF1509 9 MMF1553 31 MMF1597 53 MMF1641 75 MMF1685 97
MMF1510 9.5 MMF1554 31.5 MMF1598 53.5 MMF1642 75.5 MMF1686 97.5
MMF1511 10 MMF1555 32 MMF1599 54 MMF1643 76 MMF1687 98
MMF1512 10.5 MMF1556 32.5 MMF1600 54.5 MMF1644 76.5 MMF1688 98.5
MMF1513 11 MMF1557 33 MMF1601 55 MMF1645 77 MMF1689 99
MMF1514 11.5 MMF1558 33.5 MMF1602 55.5 MMF1646 77.5 MMF1690 99.5
MMF1515 12 MMF1559 34 MMF1603 56 MMF1647 78 MMF1691 100
MMF1516 12.5 MMF1560 34.5 MMF1604 56.5 MMF1648 78.5 MMF1692 101
MMF1517 13 MMF1561 35 MMF1605 57 MMF1649 79 MMF1693 102
MMF1518 13.5 MMF1562 35.5 MMF1606 57.5 MMF1650 79.5 MMF1694 103
MMF1519 14 MMF1563 36 MMF1607 58 MMF1651 80 MMF1695 104
MMF1520 14.5 MMF1564 36.5 MMF1608 58.5 MMF1652 80.5 MMF1696 105
MMF1521 15 MMF1565 37 MMF1609 59 MMF1653 81 MMF1697 106
MMF1522 15.5 MMF1566 37.5 MMF1610 59.5 MMF1654 81.5 MMF1698 107
MMF1523 16 MMF1567 38 MMF1611 60 MMF1655 82 MMF1699 108
MMF1524 16.5 MMF1568 38.5 MMF1612 60.5 MMF1656 82.5 MMF1700 109
MMF1525 17 MMF1569 39 MMF1613 61 MMF1657 83 MMF1701 110
MMF1526 17.5 MMF1570 39.5 MMF1614 61.5 MMF1658 83.5 MMF1702 111
MMF1527 18 MMF1571 40 MMF1615 62 MMF1659 84 MMF1703 112
MMF1528 18.5 MMF1572 40.5 MMF1616 62.5 MMF1660 84.5 MMF1704 113
MMF1529 19 MMF1573 41 MMF1617 63 MMF1661 85 MMF1705 114
MMF1530 19.5 MMF1574 41.5 MMF1618 63.5 MMF1662 85.5 MMF1706 115
MMF1531 20 MMF1575 42 MMF1619 64 MMF1663 86 MMF1707 116
MMF1532 20.5 MMF1576 42.5 MMF1620 64.5 MMF1664 86.5 MMF1708 117
MMF1533 21 MMF1577 43 MMF1621 65 MMF1665 87 MMF1709 118
MMF1534 21.5 MMF1578 43.5 MMF1622 65.5 MMF1666 87.5 MMF1710 119
MMF1535 22 MMF1579 44 MMF1623 66 MMF1667 88 MMF1711 120
MMF1536 22.5 MMF1580 44.5 MMF1624 66.5 MMF1668 88.5 MMF1712 121
MMF1537 23 MMF1581 45 MMF1625 67 MMF1669 89 MMF1713 122
MMF1538 23.5 MMF1582 45.5 MMF1626 67.5 MMF1670 89.5 MMF1714 123
MMF1539 24 MMF1583 46 MMF1627 68 MMF1671 90 MMF1715 124
MMF1540 24.5 MMF1584 46.5 MMF1628 68.5 MMF1672 90.5 MMF1716 125
MMF1541 25 MMF1585 47 MMF1629 69 MMF1673 91 X X
MMF1542 25.5 MMF1586 47.5 MMF1630 69.5 MMF1674 91.5 X X
MMF1543 26 MMF1587 48 MMF1631 70 MMF1675 92 X X
MMF1544 26.5 MMF1588 48.5 MMF1632 70.5 MMF1676 92.5 X X

TOLERANCES:
B-  Length up to 100mm  ±  .15mm
100mm  to 150mm  ± .20mm
150mm and over  ±  .25mm
C-  Length will be adjusted where B dimensions will
not permit full thread depth
D-  Diameter Dimension, Mill Standard
*No undercut Nylon & Delrin®
