Metric 4mm Swage Spacers
(Unthreaded / Clear Hole)

 Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  American Standard Swages
  Metric Swages

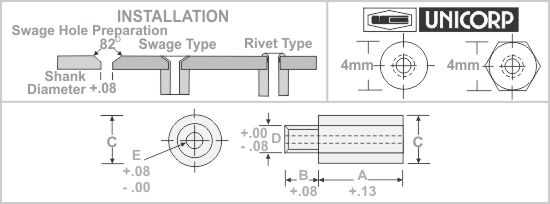

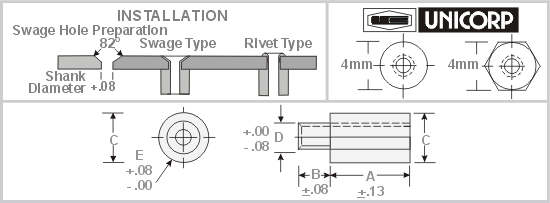

4mm - Major Diameter  x  3.53 Shank  x  2.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part # A B C D E Part # A B C D E
MSU125 3 * 4 3.53 2.7 MSU148 14.5 * 4 3.53 2.7
MSU126 3.5 * 4 3.53 2.7 MSU149 15 * 4 3.53 2.7
MSU127 4 * 4 3.53 2.7 MSU150 15.5 * 4 3.53 2.7
MSU128 4.5 * 4 3.53 2.7 MSU151 16 * 4 3.53 2.7
MSU129 5 * 4 3.53 2.7 MSU152 16.5 * 4 3.53 2.7
MSU130 5.5 * 4 3.53 2.7 MSU153 17 * 4 3.53 2.7
MSU131 6 * 4 3.53 2.7 MSU154 17.5 * 4 3.53 2.7
MSU132 6.5 * 4 3.53 2.7 MSU155 18 * 4 3.53 2.7
MSU133 7 * 4 3.53 2.7 MSU156 18.5 * 4 3.53 2.7
MSU134 7.5 * 4 3.53 2.7 MSU157 19 * 4 3.53 2.7
MSU135 8 * 4 3.53 2.7 MSU158 19.5 * 4 3.53 2.7
MSU136 8.5 * 4 3.53 2.7 MSU159 20 * 4 3.53 2.7
MSU137 9 * 4 3.53 2.7 MSU160 20.5 * 4 3.53 2.7
MSU138 9.5 * 4 3.53 2.7 MSU161 21 * 4 3.53 2.7
MSU139 10 * 4 3.53 2.7 MSU162 21.5 * 4 3.53 2.7
MSU140 10.5 * 4 3.53 2.7 MSU163 22 * 4 3.53 2.7
MSU141 11 * 4 3.53 2.7 MSU164 22.5 * 4 3.53 2.7
MSU142 11.5 * 4 3.53 2.7 MSU165 23 * 4 3.53 2.7
MSU143 12 * 4 3.53 2.7 MSU166 23.5 * 4 3.53 2.7
MSU144 12.5 * 4 3.53 2.7 MSU167 24 * 4 3.53 2.7
MSU145 13 * 4 3.53 2.7 MSU168 24.5 * 4 3.53 2.7
MSU146 13.5 * 4 3.53 2.7 MSU169 25 * 4 3.53 2.7
MSU147 14 * 4 3.53 2.7 MSU170 25.5 * 4 3.53 2.7

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number
4mm
Diameter		 UP2 AN660 AN920 3 -  5.5mm MSU125 - MSU130
UP2 AN670 AN930 6 - 12.5mm MSU131 - MSU144
UP2 AN680 AN940 13 - 18.5mm MSU145 - MSU156
UP2 AN690 AN950 19 - 25.5mm MSU157 - MSU170
