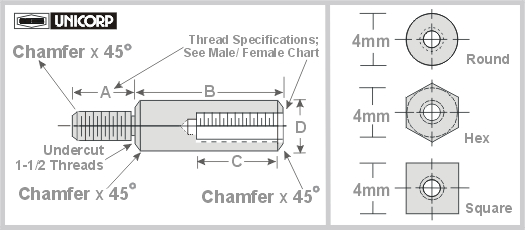

 Metric 4mm Male-Female Standoffs (Threaded)
 *External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
  ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length B Part # Length B Part # Length B Part # Length
B		 Part # Length
B
MMF1201 5 MMF1220 14.5 MMF1239 24 MMF1258 33.5 MMF1277 43
MMF1202 5.5 MMF1221 15 MMF1240 24.5 MMF1259 34 MMF1278 43.5
MMF1203 6 MMF1222 15.5 MMF1241 25 MMF1260 34.5 MMF1279 44
MMF1204 6.5 MMF1223 16 MMF1242 25.5 MMF1261 35 MMF1280 44.5
MMF1205 7 MMF1224 16.5 MMF1243 26 MMF1262 35.5 MMF1281 45
MMF1206 7.5 MMF1225 17 MMF1244 26.5 MMF1263 36 MMF1282 45.5
MMF1207 8 MMF1226 17.5 MMF1245 27 MMF1264 36.5 MMF1283 46
MMF1208 8.5 MMF1227 18 MMF1246 27.5 MMF1265 37 MMF1284 46.5
MMF1209 9 MMF1228 18.5 MMF1247 28 MMF1266 37.5 MMF1285 47
MMF1210 9.5 MMF1229 19 MMF1248 28.5 MMF1267 38 MMF1286 47.5
MMF1211 10 MMF1230 19.5 MMF1249 29 MMF1268 38.5 MMF1287 48
MMF1212 10.5 MMF1231 20 MMF1250 29.5 MMF1269 39 MMF1288 48.5
MMF1213 11 MMF1232 20.5 MMF1251 30 MMF1270 39.5 MMF1289 49
MMF1214 11.5 MMF1233 21 MMF1252 30.5 MMF1271 40 MMF1290 49.5
MMF1215 12 MMF1234 21.5 MMF1253 31 MMF1272 40.5 MMF1291 50
MMF1216 12.5 MMF1235 22 MMF1254 31.5 MMF1273 41 MMF1292 50.5
MMF1217 13 MMF1236 22.5 MMF1255 32 MMF1274 41.5 MMF1293 51
MMF1218 13.5 MMF1237 23 MMF1256 32.5 MMF1275 42 MMF1294 51.5
MMF1219 14 MMF1238 23.5 MMF1257 33 MMF1276 42.5 MMF1295 52
TOLERANCES:
B-  Length up to 100mm  ±  .15mm
100mm to 150mm  ±  .20mm
150mm and over  ±  .25mm
C-  Length will be adjusted where B dimensions
will not permit full thread depth
D-  Diameter Dimension, Mill Standard
* No undercut Nylon & Delrin®
