Metric M46R Retainer for Captive Screws
FSC-5304-411- Retainers listed here mate with Series M4300 Captive Screws

Back To Captive Screws & Retainers Page

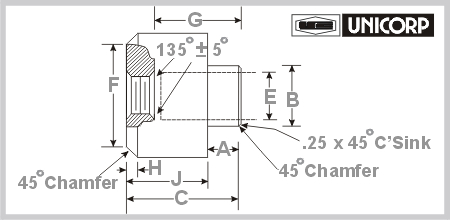

*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish		  M46R Installation
 All Technical Data
 Worksheet Helper		  Conversion Chart
 Am. Standard Captive Screws
 Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number Thread Panel
Thickness		 A
±
 0.15		 B
±
 0.05		 C
±
 0.3		 E
+ 0.15
 - 0.05		 F
±
 0.1		 G
+ 0.15
 - 0.05		 H
REF		 J
±
 0.15
M46R01 M3.0 x 0.5 1.3- 1.7 1.6 11.5 9.5 10 13 6.7 .6 7.9
M46R02 M3.0 x 0.5 2.1- 2.5 2.4 11.5 9.5 10 13 6.7 .6 7.1
M46R03 M3.0 x 0.5 2.8- 3.6 3.2 11.5 9.5 10 13 6.7 .6 6.3
M46R04 M3.0 x 0.5 4.3- 5.2 4.8 11.5 9.5 10 13 6.7 .6 4.7
M46R05 M3.5 x 0.6 1.3- 1.7 1.6 11.5 9.5 10 13 6.7 .6 7.9
M46R06 M3.5 x 0.6 2.1- 2.5 2.4 11.5 9.5 10 13 6.7 .6 7.1
M46R07 M3.5 x 0.6 2.8- 3.6 3.2 11.5 9.5 10 13 6.7 .6 6.3
M46R08 M3.5 x 0.6 4.3- 5.2 4.8 11.5 9.5 10 13 6.7 .6 4.7
M46R09 M3.5 x 0.6 5.9- 6.7 6.4 11.5 9.5 10 13 6.7 .6 3.1
M46R10 M4.0 x 0.7 1.3- 1.7 1.6 11.5 14.3 10 13 9.9 .7 12.7
M46R11 M4.0 x 0.7 2.1- 2.5 2.4 11.5 14.3 10 13 9.9 .7 11.9
M46R12 M4.0 x 0.7 2.8- 3.6 3.2 11.5 14.3 10 13 9.9 .7 11.1
M46R13 M4.0 x 0.7 4.3- 5.2 4.8 11.5 14.3 10 13 9.9 .7 9.5
M46R14 M4.0 x 0.7 5.9- 6.7 6.4 11.5 14.3 10 13 9.9 .7 7.9
Part Number Thread Panel
Thickness		 A
±
 0.15		 B
±
 0.05		 C
±
 0.3		 E
+ 0.15
 - 0.05		 F
±
 0.1		 G
+ 0.15
 - 0.05		 H
REF		 J
±
 0.15
M46R15 M5.0 x 0.8 1.3- 1.7 1.6 11.5 14.3 10 13 10 1 12.7
M46R16 M5.0 x 0.8 2.1- 2.5 2.4 11.5 14.3 10 13 10 1 11.9
M46R17 M5.0 x 0.8 2.8- 3.6 3.2 11.5 14.3 10 13 10 1 11.1
M46R18 M5.0 x 0.8 4.3- 5.2 4.8 11.5 14.3 10 13 10 1 9.5
M46R19 M5.0 x 0.8 5.9- 6.7 6.4 11.5 14.3 10 13 10 1 7.9
M46R20 M6.0 x 1.0 1.3- 1.7 1.6 11.5 14.3 10 13 10.2 1 12.7
M46R21 M6.0 x 1.0 2.1- 2.5 2.4 11.5 14.3 10 13 10.2 1 11.9
M46R22 M6.0 x 1.0 2.8- 3.6 3.2 11.5 14.3 10 13 10.2 1 11.1
M46R23 M6.0 x 1.0 4.3- 5.2 4.8 11.5 14.3 10 13 10.2 1 9.5
M46R24 M6.0 x 1.0 5.9- 6.7 6.4 11.5 14.3 10 13 10.2 1 7.9
