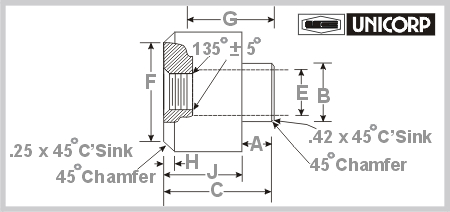

Metric M45R Retainer for Captive Screws
 FSC-5304-411- Retainers listed here mate with Series M4200 Captive Screws

Back To Captive Screws & Retainers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish		  M45R Installation
 All Technical Data
 Worksheet Helper		  Conversion Chart
 Am. Standard Captive Screws
  Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number Thread Panel
Thickness		 A
±
0.15		 B
±
0.05		 C
±
0.3		 E
+ 0.15
 - 0.05		 F
±
 0.1		 G
+ 0.15
 - 0.5		 H
REF		 J
±
0.15
M45R01 M3.0 x 0.5 1.3- 1.7 1.6 4 9.5 3 6 7.9 .6 7.9
M45R02 M3.0 x 0.5 2.1- 2.5 2.4 4 9.5 3 6 7.1 .6 7.1
M45R03 M3.0 x 0.5 2.8- 3.6 3.2 4 9.5 3 6 6.3 .6 6.3
M45R04 M3.0 x 0.5 4.3- 5.2 4.8 4 9.5 3 6 4.7 .6 4.7
M45R05 M3.0 x 0.5 1.3- 1.7 1.6 6.3 9.5 5.3 8 7.9 .6 7.9
M45R06 M3.0 x 0.5 2.1- 2.5 2.4 6.3 9.5 5.3 8 7.1 .6 7.1
M45R07 M3.0 x 0.5 2.8- 3.6 3.2 6.3 9.5 5.3 8 6.3 .6 6.3
M45R08 M3.0 x 0.5 4.3- 5.2 4.8 6.3 9.5 5.3 8 4.7 .6 4.7
M45R09 M3.5 x 0.6 1.3- 1.7 1.6 6.3 9.5 5.3 8 7.9 .6 7.9
M45R10 M3.5 x 0.6 2.1- 2.5 2.4 6.3 9.5 5.3 8 7.1 .6 7.1
M45R11 M3.5 x 0.6 2.8- 3.6 3.2 6.3 9.5 5.3 8 6.3 .6 6.3
M45R12 M3.5 x 0.6 4.3- 5.2 4.8 6.3 9.5 5.3 8 4.7 .6 4.7
M45R13 M3.5 x 0.6 5.9- 6.7 6.4 6.3 9.5 5.3 8 3.1 .6 3.1
M45R14 M4.0 x 0.7 1.3- 1.7 1.6 11 14.3 9.8 13 12.7 .7 12.7
M45R15 M4.0 x 0.7 2.1- 2.5 2.4 11 14.3 9.8 13 11.9 .7 11.9
Part Number Thread Panel
Thickness		 A
±
0.15		 B
±
0.05		 C
±
0.3		 E
+ 0.15
 - 0.05		 F
±
 0.1		 G
+ 0.15
 - 0.5		 H
REF		 J
±
0.15
M45R16 M4.0 x 0.7 2.8- 3.6 3.2 11 14.3 9.8 13 11.1 .7 11.1
M45R17 M4.0 x 0.7 4.3- 5.2 4.8 11 14.3 9.8 13 9.5 .7 9.5
M45R18 M4.0 x 0.7 5.9- 6.7 6.4 11 14.3 9.8 13 7.9 .7 7.9
M45R19 M5.0 x 0.8 1.3- 1.7 1.6 11 14.3 9.8 13 12.7 1 12.7
M45R20 M5.0 x 0.8 2.1- 2.5 2.4 11 14.3 9.8 13 11.9 1 11.9
M45R21 M5.0 x 0.8 2.8- 3.6 3.2 11 14.3 9.8 13 11.1 1 11.1
M45R22 M5.0 x 0.8 4.3- 5.2 4.8 11 14.3 9.8 13 9.5 1 9.5
M45R23 M5.0 x 0.8 5.9- 6.7 6.4 11 14.3 9.8 13 7.9 1 7.9
M45R24 M6.0 x 1.0 1.3- 1.7 1.6 11 14.3 9.8 13 12.7 1 12.7
M45R25 M6.0 x 1.0 2.1- 2.5 2.4 11 14.3 9.8 13 11.9 1 11.9
M45R26 M6.0 x 1.0 2.8- 3.6 3.2 11 14.3 9.8 13 11.1 1 11.1
M45R27 M6.0 x 1.0 4.3- 5.2 4.8 11 14.3 9.8 13 9.5 1 9.5
M45R28 M6.0 x 1.0 5.9- 6.7 6.4 11 14.3 9.8 13 7.9 1 7.9
