Metric M4500 Captive Panel Screws
Externally Relieved Body-FSC-5305-120

 Back To Captive Screws & Retainers Page

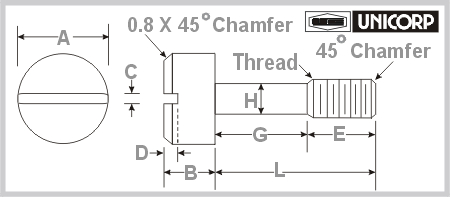

*External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.

 Build Part Number
 Material & Shape
 Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Captive Screws
 Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number A
± 0.2		 B
± 0.3		 C
± .15		 D
± .16		 E
REF		 G
± .28		 H
± .15		 L
REF		 Thread
M4501 6 3.2 1.2 1.2 4.8 6.2 2 11 M3.0 x 0.5
M4502 6 3.2 1.2 1.2 4.8 7.1 2 11.9 M3.0 x 0.5
M4503 6 3.2  1.2 1.2 4.8 7.7 2 12.5 M3.0 x 0.5
M4504 6 3.2  1.2 1.2 4.8 8.7 2 13.5 M3.0 x 0.5
M4505 6 3.2 1.2 1.2 5.5 7.5 2.4 13 M3.5 x 0.6
M4506 6 3.2 1.2 1.2 5.5 8 2.4 13.5 M3.5 x 0.6
M4507 6 3.2 1.2 1.2 5.5 9.5 2.4 15 M3.5 x 0.6
M4508 6 3.2 1.2 1.2 5.5 11.1 2.4 16.6 M3.5 x 0.6
M4509 6 3.2 1.2 1.2 5.5 12.5 2.4 18 M3.5 x 0.6
M4510 7.1 3.2 1.2 1.2 5.5 7.5 2.4 13 M3.5 x 0.6
M4511 7.1 3.2 1.2 1.2 5.5 8 2.4 13.5 M3.5 x 0.6
M4512 7.1 3.2 1.2 1.2 5.5 9.5 2.4 15 M3.5 x 0.6
M4513 7.1 3.2 1.2 1.2 5.5 11.1 2.4 16.6 M3.5 x 0.6
M4514 7.1 3.2 1.2 1.2 5.5 12.5 2.4 18 M3.5 x 0.6
M4515 8 4 1.5 1.5 6.4 9.6 3 16 M4.0 x 0.7
Part Number A
± 0.2		 B
± 0.3		 C
± .15		 D
± .16		 E
REF		 G
± .28		 H
± .15		 L
REF		 Thread
M4516 8 4 1.5 1.5 6.4 10.3 3 16.7 M4.0 x 0.7
M4517 8 4 1.5 1.5 6.4 11.1 3 17.5 M4.0 x 0.7
M4518 8 4 1.5 1.5 6.4 11.9 3 18.3 M4.0 x 0.7
M4519 8 4 1.5 1.5 6.4 13.5 3 19.9 M4.0 x 0.7
M4520 8 4 1.5 1.5 6.4 14.6 3 21 M4.0 x 0.7
M4521 9.5 4.8 1.5 1.5 7.9 12.1 3.3 20 M5.0 x 0.8
M4522 9.5 4.8 1.5 1.5 7.9 13.5 3.3 21.4 M5.0 x 0.8
M4523 9.5 4.8 1.5 1.5 7.9 15.1 3.3 23 M5.0 x 0.8
M4524 9.5 4.8 1.5 1.5 7.9 16.1 3.3 24 M5.0 x 0.8
M4525 10 4.8 1.5 1.5 7.9 12.1 3.3 20 M5.0 x 0.8
M4526 10 4.8 1.5 1.5 7.9 13.5 3.3 21.4 M5.0 x 0.8
M4527 10 4.8 1.5 1.5 7.9 15.1 3.3 23 M5.0 x 0.8
M4528 10 4.8 1.5 1.5 7.9 16.1 3.3 24 M5.0 x 0.8
