Metric M4100 Captive Panel Screws
Externally Relieved Body-FSC-5305-120
Available in Hex Head & Round Head

 Back To Captive Screws & Retainers Page
*External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Captive Screws
 Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1

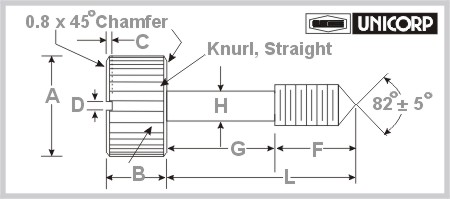

Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4101 8 5 1.5 1 7 9.5 2 16.5 40 M3.0 x 0.5
M4102 8 5 1.5 1 7 11 2 18 40 M3.0 x 0.5
M4103 8 5 1.5 1 7 13 2 20 40 M3.0 x 0.5
M4104 8 5 1.5 1 7 14.5 2 21.5 40 M3.0 x 0.5
M4105 8 5 1.5 1 7 16 2 23 40 M3.0 x 0.5
M4106 8 5 1.5 1.2 7 9.5 2.5 16.5 40 M3.5 x 0.6
M4107 8 5 1.5 1.2 7 11 2.5 18 40 M3.5 x 0.6
M4108 8 5 1.5 1.2 7 13 2.5 20 40 M3.5 x 0.6
M4109 8 5 1.5 1.2 7 14.5 2.5 21.5 40 M3.5 x 0.6
M4110 8 5 1.5 1.2 7 16 2.5 23 40 M3.5 x 0.6
M4111 10 5 1.5 1.2 7 9.5 2.5 16.5 40 M3.5 x 0.6
M4112 10 5 1.5 1.2 7 11 2.5 18 40 M3.5 x 0.6
M4113 10 5 1.5 1.2 7 13 2.5 20 40 M3.5 x 0.6
M4114 10 5 1.5 1.2 7 14.5 2.5 21.5 40 M3.5 x 0.6
M4115 10 5 1.5 1.2 7 16 2.5 23 40 M3.5 x 0.6
Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4116 11 6.5 1.5 1.5 9.5 6.5 3 16 30 M4.0 x 0.7
M4117 11 6.5 1.5 1.5 9.5 8 3 17.5 30 M4.0 x 0.7
M4118 11 6.5 1.5 1.5 9.5 9.5 3 19 30 M4.0 x 0.7
M4119 11 6.5 1.5 1.5 9.5 11 3 20.5 30 M4.0 x 0.7
M4120 11 6.5 1.5 1.5 9.5 12.5 3 22 30 M4.0 x 0.7
M4121 11 6.5 1.5 1.5 9.5 14.5 3 24 30 M4.0 x 0.7
M4122 11 6.5 1.5 1.5 9.5 16 3 25.5 30 M4.0 x 0.7
M4123 11 6.5 1.5 1.5 9.5 17.5 3 27 30 M4.0 x 0.7
M4124 11 6.5 1.5 1.5 9.5 19 3 28.5 30 M4.0 x 0.7
M4125 11 6.5 1.5 1.5 9.5 21 3 30.5 30 M4.0 x 0.7
Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4126 11 6.5 1.5 1.5 9.5 22.5 3 32 30 M4.0 x 0.7
M4127 11 6.5 1.5 1.5 9.5 6.5 3.5 16 30 M5.0 x 0.8
M4128 11 6.5 1.5 1.5 9.5 8 3.5 17.5 30 M5.0 x 0.8
M4129 11 6.5 1.5 1.5 9.5 9.5 3.5 19 30 M5.0 x 0.8
M4130 11 6.5 1.5 1.5 9.5 11 3.5 20.5 30 M5.0 x 0.8
M4131 11 6.5 1.5 1.5 9.5 12.5 3.5 22 30 M5.0 x 0.8
M4132 11 6.5 1.5 1.5 9.5 14.5 3.5 24 30 M5.0 x 0.8
M4133 11 6.5 1.5 1.5 9.5 16 3.5 25.5 30 M5.0 x 0.8
M4134 11 6.5 1.5 1.5 9.5 17.5 3.5 27 30 M5.0 x 0.8
M4135 11 6.5 1.5 1.5 9.5 19 3.5 28.5 30 M5.0 x 0.8
M4136 11 6.5 1.5 1.5 9.5 21 3.5 30.5 30 M5.0 x 0.8
M4137 11 6.5 1.5 1.5 9.5 22.5 3.5 32 30 M5.0 x 0.8
M4138 11 6.5 1.5 1.5 9.5 24 3.5 33.5 30 M5.0 x 0.8
M4139 11 6.5 1.5 1.5 9.5 25.5 3.5 35 30 M5.0 x 0.8
M4140 11 6.5 1.5 1.5 9.5 27 3.5 36.5 30 M5.0 x 0.8
Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4141 11 6.5 1.5 1.5 9.5 28.5 3.5 38 30 M5.0 x 0.8
M4142 13 6.5 1.5 1.5 9.5 6.5 3.5 16 30 M5.0 x 0.8
M4143 13 6.5 1.5 1.5 9.5 8 3.5 17.5 30 M5.0 x 0.8
M4144 13 6.5 1.5 1.5 9.5 9.5 3.5 19 30 M5.0 x 0.8
M4145 13 6.5 1.5 1.5 9.5 11 3.5 20.5 30 M5.0 x 0.8
M4146 13 6.5 1.5 1.5 9.5 12.5 3.5 22 30 M5.0 x 0.8
M4147 13 6.5 1.5 1.5 9.5 14.5 3.5 24 30 M5.0 x 0.8
M4148 13 6.5 1.5 1.5 9.5 16 3.5 25.5 30 M5.0 x 0.8
M4149 13 6.5 1.5 1.5 9.5 17.5 3.5 27 30 M5.0 x 0.8
M4150 13 6.5 1.5 1.5 9.5 19 3.5 28.5 30 M5.0 x 0.8
M4151 13 6.5 1.5 1.5 9.5 21 3.5 30.5 30 M5.0 x 0.8
M4152 13 6.5 1.5 1.5 9.5 22.5 3.5 32 30 M5.0 x 0.8
M4153 13 6.5 1.5 1.5 9.5 24 3.5 33.5 30 M5.0 x 0.8
M4154 13 6.5 1.5 1.5 9.5 25.5 3.5 35 30 M5.0 x 0.8
M4155 13 6.5 1.5 1.5 9.5 27 3.5 36.5 30 M5.0 x 0.8
Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4156 13 6.5 1.5 1.5 9.5 28.5 3.5 38 30 M5.0 x 0.8
M4157 16 6.5 2.5 1.5 9.5 6.5 4.5 16 30 M6.0 x 1.0
M4158 16 6.5 2.5 1.5 9.5 8 4.5 17.5 30 M6.0 x 1.0
M4159 16 6.5 2.5 1.5 9.5 9.5 4.5 19 30 M6.0 x 1.0
M4160 16 6.5 2.5 1.5 9.5 11 4.5 20.5 30 M6.0 x 1.0
M4161 16 6.5 2.5 1.5 9.5 12.5 4.5 22 30 M6.0 x 1.0
M4162 16 6.5 2.5 1.5 9.5 14.5 4.5 24 30 M6.0 x 1.0
M4163 16 6.5 2.5 1.5 9.5 16 4.5 25.5 30 M6.0 x 1.0
M4164 16 6.5 2.5 1.5 9.5 17.5 4.5 27 30 M6.0 x 1.0
M4165 16 6.5 2.5 1.5 9.5 19 4.5 28.5 30 M6.0 x 1.0
M4166 16 6.5 2.5 1.5 9.5 21 4.5 30.5 30 M6.0 x 1.0
M4167 16 6.5 2.5 1.5 9.5 22.5 4.5 32 30 M6.0 x 1.0
M4168 16 6.5 2.5 1.5 9.5 24 4.5 33.5 30 M6.0 x 1.0
M4169 16 6.5 2.5 1.5 9.5 25.5 4.5 35 30 M6.0 x 1.0
M4170 16 6.5 2.5 1.5 9.5 27 4.5 36.5 30 M6.0 x 1.0
M4171 16 6.5 2.5 1.5 9.5 28.5 4.5 38 30 M6.0 x 1.0
M4172 16 6.5 2.5 1.5 9.5 30 4.5 39.5 30 M6.0 x 1.0
M4173 16 6.5 2.5 1.5 9.5 32 4.5 41.5 30 M6.0 x 1.0
M4174 16 6.5 2.5 1.5 9.5 33.5 4.5 43 30 M6.0 x 1.0
M4175 16 6.5 2.5 1.5 9.5 35 4.5 44.5 30 M6.0 x 1.0
M4176 16 6.5 2.5 1.5 9.5 36.5 4.5 46 30 M6.0 x 1.0
M4177 16 6.5 2.5 1.5 9.5 38 4.5 47.5 30 M6.0 x 1.0
M4178 16 6.5 2.5 1.5 9.5 39.5 4.5 49 30 M6.0 x 1.0
M4179 16 6.5 2.5 1.5 9.5 41.5 4.5 51 30 M6.0 x 1.0
M4180 19 6.5 2.5 1.5 9.5 14.5 4.5 24 30 M8.0 x 1.25
Part
 No.		 A
Before
Knurl		 B
± .38		 C
± .15		 D
+ 0.2
- 0.0		 F
± .15		 G
± 0.3		 H
± 0.15		 L
REF		 Knurl
Pitch		 Thread
M4181 19 6.5 2.5 1.5 9.5 16 4.5 25.5 30 M8.0 x 1.25
M4182 19 6.5 2.5 1.5 9.5 17.5 4.5 27 30 M8.0 x 1.25
M4183 19 6.5 2.5 1.5 9.5 19 4.5 28.5 30 M8.0 x 1.25
M4184 19 6.5 2.5 1.5 9.5 21 4.5 30.5 30 M8.0 x 1.25
M4185 19 6.5 2.5 1.5 9.5 22.5 4.5 32 30 M8.0 x 1.25
M4186 19 6.5 2.5 1.5 9.5 24 4.5 33.5 30 M8.0 x 1.25
M4187 19 6.5 2.5 1.5 9.5 25.5 4.5 35 30 M8.0 x 1.25
M4188 19 6.5 2.5 1.5 9.5 27 4.5 36.5 30 M8.0 x 1.25
M4189 19 6.5 2.5 1.5 9.5 28.5 4.5 38 30 M8.0 x 1.25
M4190 19 6.5 2.5 1.5 9.5 30 4.5 39.5 30 M8.0 x 1.25
M4191 19 6.5 2.5 1.5 9.5 32 4.5 41.5 30 M8.0 x 1.25
M4192 19 6.5 2.5 1.5 9.5 33.5 4.5 43 30 M8.0 x 1.25
M4193 19 6.5 2.5 1.5 9.5 35 4.5 44.5 30 M8.0 x 1.25
M4194 19 6.5 2.5 1.5 9.5 36 4.5 46 30 M8.0 x 1.25
M4195 19 6.5 2.5 1.5 9.5 38 4.5 47.5 30 M8.0 x 1.25
M4196 19 6.5 2.5 1.5 9.5 39.5 4.5 49 30 M8.0 x 1.25
M4197 19 6.5 2.5 1.5 9.5 41.5 4.5 51 30 M8.0 x 1.25
