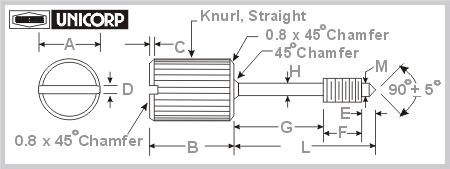

Metric M4000 Captive Panel Screws
Externally Relieved Body-FSC-5305-120
Available in Hex Head & Round Head

Back To Captive Screws & Retainers Page
*External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  All Technical Data
 Worksheet Helper
 ND Thread Lock Info
 ND Thread Codes		  Conversion Chart
 Am. Standard Captive Screws
  Metric Captive Screws
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4001 6 6 2 1.2 2 3.2 4.3 1.5 1.5 9.5 40.7 128 .6 M2.5 x 0.45
M4002 6 6 2 1.2 2 3.2 5.8 1.5 1.5 11 40.7 128 .6 M2.5 x 0.45
M4003 6 6 2 1.2 2 3.2 7.8 1.5 1.5 13 40.7 128 .6 M2.5 x 0.45
M4004 6 6 2 1.2 2 3.2 9.3 1.5 1.5 14.5 40.7 128 .6 M2.5 x 0.45
M4005 6 6 2 1.2 2 3.2 10.8 1.5 1.5 16 40.7 128 .6 M2.5 x 0.45
M4006 6 6 2 1.2 2 3.2 12.3 1.5 1.5 17.5 40.7 128 .6 M2.5 x 0.45
M4007 6 6 2 1.2 2 3.2 13.8 1.5 1.5 19 40.7 128 .6 M2.5 x 0.45
M4008 6 6 2 1.2 2 3.2 15.3 1.5 1.5 20.5 40.7 128 .6 M2.5 x 0.45
M4009 6 6 2 1.2 2 3.2 16.8 1.5 1.5 22 40.7 128 .6 M2.5 x 0.45
M4010 6 6 2 1.2 2 3.2 18.8 1.5 1.5 24 40.7 128 .6 M2.5 x 0.45
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4011 6 6 2 1.2 2 3.2 20.3 1.5 1.5 25.5 40.7 128 .6 M2.5 x 0.45
M4012 6 6 2 1.2 2 3.2 4.3 2 2 9.5 40.7 128 .6 M3.0 x 0.5
M4013 6 6 2 1.2 2 3.2 5.8 2 2 11 40.7 128 .6 M3.0 x 0.5
M4014 6 6 2 1.2 2 3.2 7.8 2 2 13 40.7 128 .6 M3.0 x 0.5
M4015 6 6 2 1.2 2 3.2 9.3 2 2 14.5 40.7 128 .6 M3.0 x 0.5

M4016

 6 6 2 1.2 2 3.2 10.8 2 2 16 40.7 128 .6 M3.0 x 0.5
M4017 6 6 2 1.2 2 3.2 12.3 2 2 17.5 40.7 128 .6 M3.0 x 0.5
M4018 6 6 2 1.2 2 3.2 13.8 2 2 19 40.7 128 .6 M3.0 x 0.5
M4019 6 6 2 1.2 2 3.2 15.3 2 2 20.5 40.7 128 .6 M3.0 x 0.5
M4020 6 6 2 1.2 2 3.2 16.8 2 2 22 40.7 128 .6 M3.0 x 0.5
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4021 6 6 2 1.2 2 3.2 18.8 2 2 24 40.7 128 .6 M3.0 x 0.5
M4022 6 6 2 1.2 2 3.2 20.3 2 2 25.5 40.7 128 .6 M3.0 x 0.5
M4023 8 8 2 1.2 2 3.2 4.3 2 2 9.5 40.7 128 .6 M3.0 x 0.5
M4024 8 8 2 1.2 2 3.2 5.8 2 2 11 40.7 128 .6 M3.0 x 0.5
M4025 8 8 2 1.2 2 3.2 7.8 2 2 13 40.7 128 .6 M3.0 x 0.5
M4026 8 8 2 1.2 2 3.2 9.3 2 2 14.5 40.7 128 .6 M3.0 x 0.5
M4027 8 8 2 1.2 2 3.2 10.8 2 2 16 40.7 128 .6 M3.0 x 0.5
M4028 8 8 2 1.2 2 3.2 12.3 2 2 17.5 40.7 128 .6 M3.0 x 0.5
M4029 8 8 2 1.2 2 3.2 13.8 2 2 19 40.7 128 .6 M3.0 x 0.5
M4030 8 8 2 1.2 2 3.2 15.3 2 2 20.5 40.7 128 .6 M3.0 x 0.5
M4031 8 8 2 1.2 2 3.2 16.8 2 2 22 40.7 128 .6 M3.0 x 0.5
M4032 8 8 2 1.2 2 3.2 18.8 2 2 24 40.7 128 .6 M3.0 x 0.5
M4033 8 8 2 1.2 2 3.2 20.3 2 2 25.5 40.7 128 .6 M3.0 x 0.5
M4034 8 8 2 1.2 2.5 5.5 3 2.5 2.5 11 40.7 128 .6 M3.5 x 0.6
M4035 8 8 2 1.2 2.5 5.5 5 2.5 2.5 13 40.7 128 .6 M3.5 x 0.6
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4036 8 8 2 1.2 2.5 5.5 6.5 2.5 2.5 14.5 40.7 128 .6 M3.5 x 0.6
M4037 8 8 2 1.2 2.5 5.5 8 2.5 2.5 16 40.7 128 .6 M3.5 x 0.6
M4038 8 8 2 1.2 2.5 5.5 9.5 2.5 2.5 17.5 40.7 128 .6 M3.5 x 0.6
M4039 8 8 2 1.2 2.5 5.5 11 2.5 2.5 19 40.7 128 .6 M3.5 x 0.6
M4040 8 8 2 1.2 2.5 5.5 12.5 2.5 2.5 20.5 40.7 128 .6 M3.5 x 0.6
M4041 8 8 2 1.2 2.5 5.5 14 2.5 2.5 22 40.7 128 .6 M3.5 x 0.6
M4042 8 8 2 1.2 2.5 5.5 16 2.5 2.5 24 40.7 128 .6 M3.5 x 0.6
M4043 8 8 2 1.2 2.5 5.5 17.5 2.5 2.5 25.5 40.7 128 .6 M3.5 x 0.6
M4044 8 8 2 1.2 2.5 5.5 19 2.5 2.5 27 40.7 128 .6 M3.5 x 0.6
M4045 8 8 2 1.2 2.5 5.5 20.5 2.5 2.5 28.5 40.7 128 .6 M3.5 x 0.6
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4046 8 8 2 1.2 2.5 5.5 22.5 2.5 2.5 30.5 40.7 128 .6 M3.5 x 0.6
M4047 8 8 2 1.2 2.5 5.5 24 2.5 2.5 32 40.7 128 .6 M3.5 x 0.6
M4048 8 8 2 1.2 2.5 5.5 3 3 3 11 30.6 96 .8 M4.0 x 0.7
M4049 8 8 2 1.2 2.5 5.5 5 3 3 13 30.6 96 .8 M4.0 x 0.7
M4050 8 8 2 1.2 2.5 5.5 6.5 3 3 14.5 30.6 96 .8 M4.0 x 0.7
M4051 8 8 2 1.2 2.5 5.5 8 3 3 16 30.6 96 .8 M4.0 x 0.7
M4052 8 8 2 1.2 2.5 5.5 9.5 3 3 17.5 30.6 96 .8 M4.0 x 0.7
M4053 8 8 2 1.2 2.5 5.5 11 3 3 19 30.6 96 .8 M4.0 x 0.7
M4054 8 8 2 1.2 2.5 5.5 12.5 3 3 20.5 30.6 96 .8 M4.0 x 0.7
M4055 8 8 2 1.2 2.5 5.5 14 3 3 22 30.6 96 .8 M4.0 x 0.7
M4056 8 8 2 1.2 2.5 5.5 16 3 3 24 30.6 96 .8 M4.0 x 0.7
M4057 8 8 2 1.2 2.5 5.5 17.5 3 3 25.5 30.6 96 .8 M4.0 x 0.7
M4058 8 8 2 1.2 2.5 5.5 19 3 3 27 30.6 96 .8 M4.0 x 0.7
M4059 8 8 2 1.2 2.5 5.5 20.5 3 3 28.5 30.6 96 .8 M4.0 x 0.7
M4060 8 8 2 1.2 2.5 5.5 22.5 3 3 30.5 30.6 96 .8 M4.0 x 0.7
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4061 8 8 2 1.2 2.5 5.5 24 3 3 32 30.6 96 .8 M4.0 x 0.7
M4062 10 11 2.5  1.5 4 6.5 2.5 3.5 3.5 13 30.6 96 .8 M5.0 x 0.8
M4063 10 11 2.5  1.5 4 6.5 4 3.5 3.5 14.5 30.6 96 .8 M5.0 x 0.8
M4064 10 11 2.5  1.5 4 6.5 5.5 3.5 3.5 16 30.6 96 .8 M5.0 x 0.8
M4065 10 11 2.5  1.5 4 6.5 7 3.5 3.5 17.5 30.6 96 .8 M5.0 x 0.8
M4066 10 11 2.5  1.5 4 6.5 8.5 3.5 3.5 19 30.6 96 .8 M5.0 x 0.8
M4067 10 11 2.5  1.5 4 6.5 10 3.5 3.5 20.5 30.6 96 .8 M5.0 x 0.8
M4068 10 11 2.5  1.5 4 6.5 11.5 3.5 3.5 22 30.6 96 .8 M5.0 x 0.8
M4069 10 11 2.5  1.5 4 6.5 13.5 3.5 3.5 24 30.6 96 .8 M5.0 x 0.8
M4070 10 11 2.5  1.5 4 6.5 15 3.5 3.5 25.5 30.6 96 .8 M5.0 x 0.8
M4071 10 11 2.5  1.5 4 6.5 16.5 3.5 3.5 27 30.6 96 .8 M5.0 x 0.8
M4072 10 11 2.5  1.5 4 6.5 18 3.5 3.5 28.5 30.6 96 .8 M5.0 x 0.8
M4073 10 11 2.5  1.5 4 6.5 20 3.5 3.5 30.5 30.6 96 .8 M5.0 x 0.8
M4074 10 11 2.5  1.5 4 6.5 21.5 3.5 3.5 32 30.6 96 .8 M5.0 x 0.8
M4075 10 11 2.5  1.5 4 6.5 23 3.5 3.5 33.5 30.6 96 .8 M5.0 x 0.8
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4076 10 11 2.5  1.5 4 6.5 24.5 3.5 3.5 35 30.6 96 .8 M5.0 x 0.8
M4077 10 11 2.5  1.5 4 6.5 26 3.5 3.5 36.5 30.6 96 .8 M5.0 x 0.8
M4078 10 11 2.5  1.5 4 6.5 27.5 3.5 3.5 38 30.6 96 .8 M5.0 x 0.8
M4079 13 14.5 2.5  2 5 8 3 4.5 4.5 16 30.6 96 .8 M6.0 x 1.0
M4080 13 14.5 2.5  2 5 8 4.5 4.5 4.5 17.5 30.6 96 .8 M6.0 x 1.0
M4081 13 14.5 2.5  2 5 8 6 4.5 4.5 19 30.6 96 .8 M6.0 x 1.0
M4082 13 14.5 2.5  2 5 8 7.5 4.5 4.5 20.5 30.6 96 .8 M6.0 x 1.0
M4083 13 14.5 2.5  2 5 8 9 4.5 4.5 22 30.6 96 .8 M6.0 x 1.0
M4084 13 14.5 2.5  2 5 8 11 4.5 4.5 24 30.6 96 .8 M6.0 x 1.0
M4085 13 14.5 2.5  2 5 8 12.5 4.5 4.5 25.5 30.6 96 .8 M6.0 x 1.0
M4086 13 14.5 2.5  2 5 8 14 4.5 4.5 27 30.6 96 .8 M6.0 x 1.0
M4087 13 14.5 2.5  2 5 8 15.5 4.5 4.5 28.5 30.6 96 .8 M6.0 x 1.0
M4088 13 14.5 2.5  2 5 8 17.5 4.5 4.5 30 30.6 96 .8 M6.0 x 1.0
M4089 13 14.5 2.5  2 5 8 19 4.5 4.5 32 30.6 96 .8 M6.0 x 1.0
M4090 13 14.5 2.5  2 5 8 20.5 4.5 4.5 33.5 30.6 96 .8 M6.0 x 1.0
Part
No.		 A
Before
Knurl		 B
±
0.38		 C
±
 0.15		 D
+ 0.2
- 0.0		 E
REF		 F
±
0.15		 G
±
0.3		 H
±
0.15		 M
+ 0.0
- 0.38		 L
REF		 Knurl
Teeth		 Knurl
Pitch		 Cham-fer Thread
M4091 13 14.5 2.5  2 5 8 22 4.5 4.5 35 30.6 96 .8 M6.0 x 1.0
M4092 13 14.5 2.5  2 5 8 23.5 4.5 4.5 36.5 30.6 96 .8 M6.0 x 1.0
M4093 13 14.5 2.5  2 5 8 25 4.5 4.5 38 30.6 96 .8 M6.0 x 1.0
M4094 13 14.5 2.5  2 5 8 26.5 4.5 4.5 39.5 30.6 96 .8 M6.0 x 1.0
M4095 13 14.5 2.5  2 5 8 28.5 4.5 4.5 41.5 30.6 96 .8 M6.0 x 1.0
M4096 13 14.5 2.5  2 5 8 30 4.5 4.5 43 30.6 96 .8 M6.0 x 1.0
M4097 13 14.5 2.5  2 5 8 31.5 4.5 4.5 44.5 30.6 96 .8 M6.0 x 1.0
M4098 13 14.5 2.5  2 5 8 33 4.5 4.5 46 30.6 96 .8 M6.0 x 1.0
M4099 13 14.5 2.5  2 5 8 34.5 4.5 4.5 47.5 30.6 96 .8 M6.0 x 1.0
M4099A 13 14.5 2.5  2 5 8 36 4.5 4.5 49 30.6 96 .8 M6.0 x 1.0
M4099B 13 14.5 2.5  2 5 8 38 4.5 4.5 51 30.6 96 .8 M6.0 x 1.0
