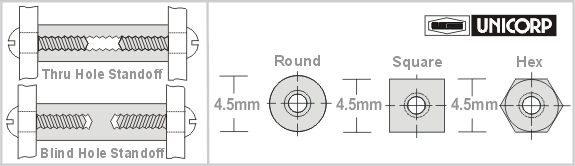

  Metric 4.5mm Standoffs (Threaded)
Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
 ND Thread Codes		 Conversion Chart
American Standard Standoffs
Metric Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
MP401 1 MP432 16.5 MP463 32 MP494 47.5 MP525 63
MP402 1.5 MP433 17 MP464 32.5 MP495 48 MP526 63.5
MP403 2 MP434 17.5 MP465 33 MP496 48.5 MP527 64
MP404 2.5 MP435 18 MP466 33.5 MP497 49 MP528 64.5
MP405 3 MP436 18.5 MP467 34 MP498 49.5 MP529 65
MP406 3.5 MP437 19 MP468 34.5 MP499 50 MP530 65.5
MP407 4 MP438 19.5 MP469 35 MP500 50.5 MP531 66
MP408 4.5 MP439 20 MP470 35.5 MP501 51 MP532 66.5
MP409 5 MP440 20.5 MP471 36 MP502 51.5 MP533 67
MP410 5.5 MP441 21 MP472 36.5 MP503 52 MP534 67.5
MP411 6 MP442 21.5 MP473 37 MP504 52.5 MP535 68
MP412 6.5 MP443 22 MP474 37.5 MP505 53 MP536 68.5
MP413 7 MP444 22.5 MP475 38 MP506 53.5 MP537 69
MP414 7.5 MP445 23 MP476 38.5 MP507 54 MP538 69.5
MP415 8 MP446 23.5 MP477 39 MP508 54.5 MP539 70
MP416 8.5 MP447 24 MP478 39.5 MP509 55 MP540 70.5
MP417 9 MP448 24.5 MP479 40 MP510 55.5 MP541 71
MP418 9.5 MP449 25 MP480 40.5 MP511 56 MP542 71.5
MP419 10 MP450 25.5 MP481 41 MP512 56.5 MP543 72
MP420 10.5 MP451 26 MP482 41.5 MP513 57 MP544 72.5
MP421 11 MP452 26.5 MP483 42 MP514 57.5 MP545 73
MP422 11.5 MP453 27 MP484 42.5 MP515 58 MP546 73.5
MP423 12 MP454 27.5 MP485 43 MP516 58.5 MP547 74
MP424 12.5 MP455 28 MP486 43.5 MP517 59 MP548 74.5
MP425 13 MP456 28.5 MP487 44 MP518 59.5 MP549 75
MP426 13.5 MP457 29 MP488 44.5 MP519 60 MP550 75.5
MP427 14 MP458 29.5 MP489 45 MP520 60.5 MP551 76
MP428 14.5 MP459 30 MP490 45.5 MP521 61 MP552 76.5
MP429 15 MP460 30.5 MP491 46 MP522 61.5 MP553 77
MP430 15.5 MP461 31 MP492 46.5 MP523 62 X X
MP431 16 MP462 31.5 MP493 47 MP524 62.5 X X
