Metric 3mm Swage Spacers
(Unthreaded / Clear Hole)

 Back To Swage Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish
  Shank Length		   Hole Clearance
  Punch/ Anvil Part Numbers
  All Technical Data		   Worksheet Helper
  Conversion Chart
  America Standard Swages
  Metric Swages

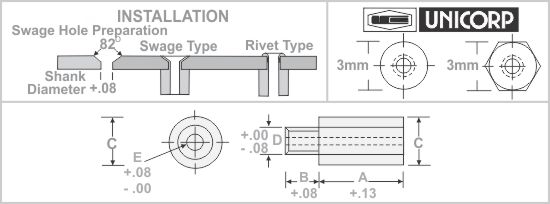

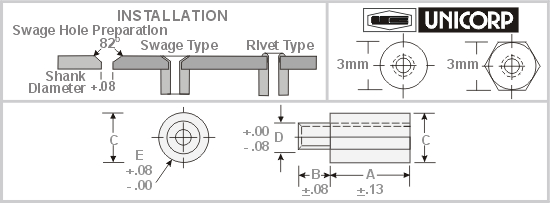

3mm -  Major Diameter  x  2.3 Shank  x  1.7 Inside Diameter
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
See Swage Tooling Below   /  See Shank Length
Part # A B C D E Part # A B C D E
MSUI00 3 * 3 2.3 1.7 MSU111 8.5 * 3 2.3 1.7
MSU101 3.5 * 3 2.3 1.7 MSU112 9 * 3 2.3 1.7
MSU102 4 * 3 2.3 1.7 MSU113 9.5 * 3 2.3 1.7
MSU103 4.5 * 3 2.3 1.7 MSU114 10 * 3 2.3 1.7
MSU104 5 * 3 2.3 1.7 MSU115 10.5 * 3 2.3 1.7
MSU105 5.5 * 3 2.3 1.7 MSU116 11 * 3 2.3 1.7
MSU106 6 * 3 2.3 1.7 MSU117 11.5 * 3 2.3 1.7
MSU107 6.5 * 3 2.3 1.7 MSU118 12 * 3 2.3 1.7
MSU108 7 * 3 2.3 1.7 MSU119 12.5 * 3 2.3 1.7
MSU109 7.5 * 3 2.3 1.7 MSU120 13 * 3 2.3 1.7
MSU110 8 * 3 2.3 1.7

Swage Tooling For:

 Punch Round Anvil Hex Anvil Length Unicorp Part Number

3mm Diameter

 UP1 AN640 AN900 3 -  5.5mm MSU100 -  MSU105
UP1 AN650 AN910 6 - 13mm MSU106 -  MSU120
