Metric 3mm Male-Male Standoffs

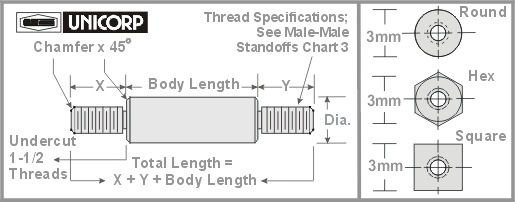

* External Thread has a 45° Angle on The Lead Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Standard Male-Male
 Metric Male-Male
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part Number B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y		 Part
Number		 B
Body
Length		 D
Diameter		 Thread
X		 Thread
Y
MMX1101 3 3 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1124 14.5 3 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1102 3.5 3 MMX1125 15 3
MMX1103 4 3 MMX1126 15.5 3
MMX1104 4.5 3 MMX1127 16 3
MMX1105 5 3 MMX1128 16.5 3
MMX1106 5.5 3 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1129 17 3 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1107 6 3 MMX1130 17.5 3
MMX1108 6.5 3 MMX1131 18 3
MMX1109 7 3 MMX1132 18.5 3
MMX1110 7.5 3 MMX1133 19 3
MMX1111 8 3 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1134 19.5 3 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1112 8.5 3 MMX1135 20 3
MMX1113 9 3 MMX1136 20.5 3
MMX1114 9.5 3 MMX1137 21 3
MMX1115 10 3 MMX1138 21.5 3
MMX1116 10.5 3 See
Thread
Chart
Below		 See
Thread
Chart
Below		 MMX1139 22 3 See
Thread
Chart
Below		 See
Thread
Chart
Below
MMX1117 11 3 MMX1140 22.5 3
MMX1118 11.5 3 MMX1141 23 3
MMX1119 12 3 MMX1142 23.5 3
MMX1120 12.5 3 MMX1143 24 3
MMX1121 13 3 MMX1144 24.5 3
MMX1122 13.5 3 MMX1145 25 3
MMX1123 14 3
Thread Chart for Metric Male-Male Standoffs Part Number


Thread Size

Thread Code  &  Thread Length


M2 x 0.4  M2 -1 3
M2 x 0.4  M2 -2 4
*Mix and Match Different Threads and Lengths For Each Part.
Tolerances:  For Brass, Aluminum, Stainless Steel & Carbon Steel
Body Length-  Length up to 100mm  ±  .15mm
Over 100mm to 150mm  ±  .20mm
Over 150mm  ±  .25mm
Thread Length Tolerance is  ± .15

Tolerances:  For Nylon & Delrin®
Body Length-  For all Lengths the Tolerance is  ±  .25
Thread Length Tolerance is  ± .20

Diameter: Standard commercial bar stock tolerances.
* No undercut Nylon & Delrin®
