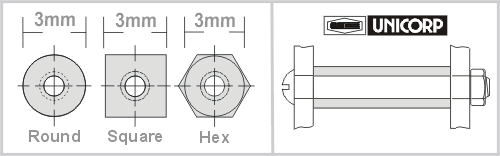

Metric 3mm Spacers (Unthreaded Standoffs)
Back To Spacers Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

  Build Part Number
  Material & Shape
  Plating & Finish		   Inside Hole Diameter
  All Technical Data
  Worksheet Helper		   Conversion Chart
  American Standard Spacers
  Metric Spacers
CHOOSE and write down your PART NUMBER
then Go to   Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
MS101 1 MS117 9 MS133 17 MS149 25 MS165 33
MS102 1.5 MS118 9.5 MS134 17.5 MS150 25.5 MS166 33.5
MS103 2 MS119 10 MS135 18 MS151 26 MS167 34
MS104 2.5 MS120 10.5 MS136 18.5 MS152 26.5 MS168 34.5
MS105 3 MS121 11 MS137 19 MS153 27 MS169 35
MS106 3.5 MS122 11.5 MS138 19.5 MS154 27.5 MS170 35.5
MS107 4 MS123 12 MS139 20 MS155 28 MS171 36
MS108 4.5 MS124 12.5 MS140 20.5 MS156 28.5 MS172 36.5
MS109 5 MS125 13 MS141 21 MS157 29 MS173 37
MS110 5.5 MS126 13.5 MS142 21.5 MS158 29.5 MS174 37.5
MS111 6 MS127 14 MS143 22 MS159 30 MS175 38
MS112 6.5 MS128 14.5 MS144 22.5 MS160 30.5 MS176 38.5
MS113 7 MS129 15 MS145 23 MS161 31 MS177 39
MS114 7.5 MS130 15.5 MS146 23.5 MS162 31.5 X X
MS115 8 MS131 16 MS147 24 MS163 32 X X
MS116 8.5 MS132 16.5 MS148 24.5 MS164 32.5 X X
