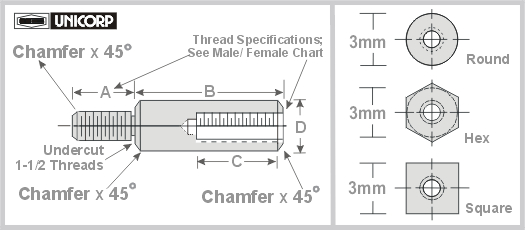

 Metric 3mm Male-Female Standoffs (Threaded)
 *External Thread has a 45°Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
 Conversion Chart
 Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B		 Part # Length
B
MMF1101 5 MMF1115 12 MMF1129 19 MMF1143 26 MMF1157 33
MMF1102 5.5 MMF1116 12.5 MMF1130 19.5 MMF1144 26.5 MMF1158 33.5
MMF1103 6 MMF1117 13 MMF1131 20 MMF1145 27 MMF1159 34
MMF1104 6.5 MMF1118 13.5 MMF1132 20.5 MMF1146 27.5 MMF1160 34.5
MMF1105 7 MMF1119 14 MMF1133 21 MMF1147 28 MMF1161 35
MMF1106 7.5 MMF1120 14.5 MMF1134 21.5 MMF1148 28.5 MMF1162 35.5
MMF1107 8 MMF1121 15 MMF1135 22 MMF1149 29 MMF1163 36
MMF1108 8.5 MMF1122 15.5 MMF1136 22.5 MMF1150 29.5 MMF1164 36.5
MMF1109 9 MMF1123 16 MMF1137 23 MMF1151 30 MMF1165 37
MMF1110 9.5 MMF1124 16.5 MMF1138 23.5 MMF1152 30.5 MMF1166 37.5
MMF1111 10 MMF1125 17 MMF1139 24 MMF1153 31 MMF1167 38
MMF1112 10.5 MMF1126 17.5 MMF1140 24.5 MMF1154 31.5 MMF1168 38.5
MMF1113 11 MMF1127 18 MMF1141 25 MMF1155 32 MMF1169 39
MMF1114 11.5 MMF1128 18.5 MMF1142 25.5 MMF1156 32.5 MMF1170 39.5

TOLERANCES:
B-  Length up to 100mm ±  .15mm
100mm to 150mm ± .20mm
150mm and over  ± .25mm
C-  Length will be adjusted where B dimensions
will not permit full thread depth
D-  Diameter Dimension, Mill Standard
*No undercut Nylon & Delrin®
