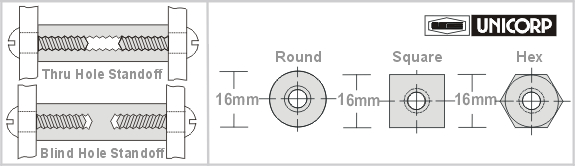

  Metric 16mm Standoffs (Threaded)

 Back To Standoffs Page
*Slightly Chamfered to Permit Smooth Entry / Fit.

Build Part Number
Material & Shape
Plating & Finish
Thread Specs		 All Technical Data
Worksheet Helper
ND Thread Lock Info
 ND Thread Codes		 Conversion Chart
American Standard Standoffs
Metric Standoffs
CHOOSE and write down your PART NUMBER
then Go to  Skip Step 1
Part # Length Part # Length Part # Length Part # Length Part # Length
MP2601 1 MP2672 36.5 MP2742 71.5 MP2813 114 MP2884 185
MP2602 1.5 MP2673 37 MP2743 72 MP2814 115 MP2885 186
MP2603 2 MP2674 37.5 MP2744 72.5 MP2815 116 MP2886 187
MP2604 2.5 MP2675 38 MP2745 73 MP2816 117 MP2887 188
MP2605 3 MP2676 38.5 MP2746 73.5 MP2817 118 MP2888 189
MP2606 3.5 MP2677 39 MP2747 74 MP2818 119 MP2889 190
MP2607 4 MP2678 39.5 MP2748 74.5 MP2819 120 MP2890 191
MP2608 4.5 MP2679 40 MP2749 75 MP2820 121 MP2891 192
MP2609 5 MP2680 40.5 MP2750 75.5 MP2821 122 MP2892 193
MP2610 5.5 MP2681 41 MP2751 76 MP2822 123 MP2893 194
MP2611 6 MP2682 41.5 MP2752 76.5 MP2823 124 MP2894 195
MP2612 6.5 MP2683 42 MP2753 77 MP2824 125 MP2895 196
MP2613 7 MP2684 42.5 MP2754 77.5 MP2825 126 MP2896 197
MP2614 7.5 MP2685 43 MP2755 78 MP2826 127 MP2897 198
MP2615 8 MP2686 43.5 MP2756 78.5 MP2827 128 MP2898 199
MP2616 8.5 MP2687 44 MP2757 79 MP2828 129 MP2899 200
MP2617 9 MP2688 44.5 MP2758 79.5 MP2829 130 MP2900 201
MP2618 9.5 MP2689 45 MP2759 80 MP2830 131 MP2901 202
MP2619 10 MP2690 45.5 MP2760 80.5 MP2831 132 MP2902 203
MP2620 10.5 MP2691 46 MP2761 81 MP2832 133 MP2903 204
MP2621 11 MP2692 46.5 MP2762 81.5 MP2833 134 MP2904 205
MP2622 11.5 MP2693 47 MP2763 82 MP2834 135 MP2905 206
MP2623 12 MP2694 47.5 MP2764 82.5 MP2835 136 MP2906 207
MP2624 12.5 MP2695 48 MP2765 83 MP2836 137 MP2907 208
MP2625 13 MP2696 48.5 MP2766 83.5 MP2837 138 MP2908 208
MP2626 13.5 MP2697 49 MP2767 84 MP2838 139 MP2909 210
MP2627 14 MP2698 49.5 MP2768 84.5 MP2839 140 MP2910 211
MP2628 14.5 MP2699 50 MP2769 85 MP2840 141 MP2911 212
MP2629 15 MP2700 50.5 MP2770 85.5 MP2841 142 MP2912 213
MP2630 15.5 MP2701 51 MP2771 86 MP2842 143 MP2913 214
MP2631 16 MP2702 51.5 MP2772 86.5 MP2843 144 MP2914 215
MP2632 16.5 MP2703 52 MP2773 87 MP2844 145 MP2915 216
MP2633 17 MP2704 52.5 MP2774 87.5 MP2845 146 MP2916 217
MP2634 17.5 MP2705 53 MP2775 88 MP2846 147 MP2917 218
MP2635 18 MP2706 53.5 MP2776 88.5 MP2847 148 MP2918 219
MP2636 18.5 MP2707 54 MP2777 89 MP2848 149 MP2919 220
MP2637 19 MP2708 54.5 MP2778 89.5 MP2849 150 MP2920 221
MP2638 19.5 MP2709 55 MP2779 90 MP2850 151 MP2921 222
MP2639 20 MP2710 55.5 MP2780 90.5 MP2851 152 MP2922 223
MP2640 20.5 MP2711 56 MP2781 91 MP2852 153 MP2923 224
MP2641 21 MP2712 56.5 MP2782 91.5 MP2853 154 MP2924 225
MP2642 21.5 MP2713 57 MP2783 92 MP2854 155 MP2925 226
MP2643 22 MP2714 57.5 MP2784 92.5 MP2855 156 MP2926 227
MP2644 22.5 MP2715 58 MP2785 93 MP2856 157 MP2927 228
MP2645 23 MP2716 58.5 MP2786 93.5 MP2857 158 MP2928 229
MP2646 23.5 MP2717 59 MP2787 94 MP2858 159 MP2929 230
MP2647 24 MP2718 59.5 MP2788 94.5 MP2859 160 MP2930 231
MP2648 24.5 MP2719 60 MP2789 95 MP2860 161 MP2931 232
MP2649 25 MP2719 60 MP2790 95.5 MP2861 162 MP2932 233
MP2650 25.5 MP2720 60.5 MP2791 96 MP2862 163 MP2933 234
MP2651 26 MP2721 61 MP2792 96.5 MP2863 164 MP2934 235
MP2652 26.5 MP2722 61.5 MP2793 97 MP2864 165 MP2935 236
MP2653 27 MP2723 62 MP2794 97.5 MP2865 166 MP2936 237
MP2654 27.5 MP2724 62.5 MP2795 98 MP2866 167 MP2937 238
MP2655 28 MP2725 63 MP2796 98.5 MP2867 168 MP2938 239
MP2656 28.5 MP2726 63.5 MP2797 99 MP2868 169 MP2939 240
MP2657 29 MP2727 64 MP2798 99.5 MP2869 170 MP2940 241
MP2658 29.5 MP2728 64.5 MP2799 100 MP2870 171 MP2941 242
MP2659 30 MP2729 65 MP2800 101 MP2871 172 MP2942 243
MP2660 30.5 MP2730 65.5 MP2801 102 MP2872 173 MP2943 244
MP2661 31 MP2731 66 MP2802 103 MP2873 174 MP2944 245
MP2662 31.5 MP2732 66.5 MP2803 104 MP2874 175 MP2945 246
MP2663 32 MP2733 67 MP2804 105 MP2875 176 MP2946 247
MP2664 32.5 MP2734 67.5 MP2805 106 MP2876 177 MP2947 248
MP2665 33 MP2735 68 MP2806 107 MP2877 178 MP2948 249
MP2666 33.5 MP2736 68.5 MP2807 108 MP2878 179 MP2949 250
MP2667 34 MP2737 69 MP2808 109 MP2879 180 MP2950 251
MP2668 34.5 MP2738 69.5 MP2809 110 MP2880 181 MP2951 252
MP2669 35 MP2739 70 MP2810 111 MP2881 182 MP2952 253
MP2670 35.5 MP2740 70.5 MP2811 112 MP2882 183 MP2953 254
MP2671 36 MP2741 71 MP2812 113 MP2883 184 X X
