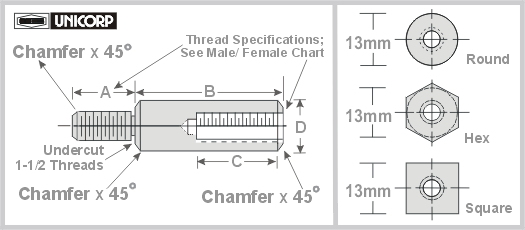

 Metric 13mm Male-Female Standoffs (Threaded)
 Back To Male-Female Standoffs Page
 *External Thread has a 45° Angle on External Thread.
Slightly Chamfered to Permit Smooth Entry / Fit.
  Build Part Number
  Material & Shape
  Plating & Finish		  Thread Specs
 All Technical Data
 Worksheet Helper
 ND Thread Lock Info		  ND Thread Codes
  Conversion Chart
 Am. Standard Male-Female Standoffs
 Metric Male-Female Standoffs
CHOOSE and write down your PART NUMBER
then Go to Skip Step 1
Part # Length B Part # Length B Part # Length B Part # Length
B		 Part # Length B
MMF2701 5 MMF2754 31.5 MMF2807 58 MMF2860 84.5 MMF2913 122
MMF2702 5.5 MMF2755 32 MMF2808 58.5 MMF2861 85 MMF2914 123
MMF2703 6 MMF2756 32.5 MMF2809 59 MMF2862 85.5 MMF2915 124
MMF2704 6.5 MMF2757 33 MMF2810 59.5 MMF2863 86 MMF2916 125
MMF2705 7 MMF2758 33.5 MMF2811 60 MMF2864 86.5 MMF2917 126
MMF2706 7.5 MMF2759 34 MMF2812 60.5 MMF2865 87 MMF2918 127
MMF2707 8 MMF2760 34.5 MMF2813 61 MMF2866 87.5 MMF2919 128
MMF2708 8.5 MMF2761 35 MMF2814 61.5 MMF2867 88 MMF2920 129
MMF2709 9 MMF2762 35.5 MMF2815 62 MMF2868 88.5 MMF2921 130
MMF2710 9.5 MMF2763 36 MMF2816 62.5 MMF2869 89 MMF2922 131
MMF2711 10 MMF2764 36.5 MMF2817 63 MMF2870 89.5 MMF2923 132
MMF2712 10.5 MMF2765 37 MMF2818 63.5 MMF2871 90 MMF2924 133
MMF2713 11 MMF2766 37.5 MMF2819 64 MMF2872 90.5 MMF2925 134
MMF2714 11.5 MMF2767 38 MMF2820 64.5 MMF2873 91 MMF2926 135
MMF2715 12 MMF2768 38.5 MMF2821 65 MMF2874 91.5 MMF2927 136
MMF2716 12.5 MMF2769 39 MMF2822 65.5 MMF2875 92 MMF2928 137
MMF2717 13 MMF2770 39.5 MMF2823 66 MMF2876 92.5 MMF2929 138
MMF2718 13.5 MMF2771 40 MMF2824 66.5 MMF2877 93 MMF2930 139
MMF2719 14 MMF2772 40.5 MMF2825 67 MMF2878 93.5 MMF2931 140
MMF2720 14.5 MMF2773 41 MMF2826 67.5 MMF2879 94 MMF2932 141
MMF2721 15 MMF2774 41.5 MMF2827 68 MMF2880 94.5 MMF2933 142
MMF2722 15.5 MMF2775 42 MMF2828 68.5 MMF2881 95 MMF2934 143
MMF2723 16 MMF2776 42.5 MMF2829 69 MMF2882 95.5 MMF2935 144
MMF2724 16.5 MMF2777 43 MMF2830 69.5 MMF2883 96 MMF2936 145
MMF2725 17 MMF2778 43.5 MMF2831 70 MMF2884 96.5 MMF2937 146
MMF2726 17.5 MMF2779 44 MMF2832 70.5 MMF2885 97 MMF2938 147
MMF2727 18 MMF2780 44.5 MMF2833 71 MMF2886 97.5 MMF2939 148
MMF2728 18.5 MMF2781 45 MMF2834 71.5 MMF2887 98 MMF2940 149
MMF2729 19 MMF2782 45.5 MMF2835 72 MMF2888 98.5 MMF2941 150
MMF2730 19.5 MMF2783 46 MMF2836 72.5 MMF2889 99 MMF2942 151
MMF2731 20 MMF2784 46.5 MMF2837 73 MMF2890 99.5 MMF2943 152
MMF2732 20.5 MMF2785 47 MMF2838 73.5 MMF2891 100 MMF2944 153
MMF2733 21 MMF2786 47.5 MMF2839 74 MMF2892 101 MMF2945 154
MMF2734 21.5 MMF2787 48 MMF2840 74.5 MMF2893 102 MMF2946 155
MMF2735 22 MMF2788 48.5 MMF2841 75 MMF2894 103 MMF2947 156
MMF2736 22.5 MMF2789 49 MMF2842 75.5 MMF2895 104 MMF2948 157
MMF2737 23 MMF2790 49.5 MMF2843 76 MMF2896 105 MMF2949 158
